Sony 9 - Pin Protocol Configuration (Pyramix controlled by external device)

Device Request Settings

The Sony 9-pin P2 protocol transmits a code to identify the machine. Some machine controllers will do nothing or

exhibit aberrant behavior if they do not recognize the identifier code. Therefore, Pyramix can masquerade as

another device. The device identifier can be selected from a long list in the Show the system as a: combo box.

Jog/Var/Shuttle Speeds Reinterpretation

The radio buttons determine Pyramix behavior when specific Jog/Var or Shuttle commands are received.

Speed -1 into Reverse Playback

Speed 0 into Stop

Speed 1 into Playback

Note: When using a controller with a jog wheel please set Jog/Var/Shuttle ... Speed = 0.

Note: Interpreting a Sony reverse varispeed command as Reverse Playback is sometimes neces-

sary to achieve proper (locked to video) reverse playback.

Filter Monitoring Commands (EE On/Off) when ticked, E to E On and off commands are filtered out.

Settings : Remote Control

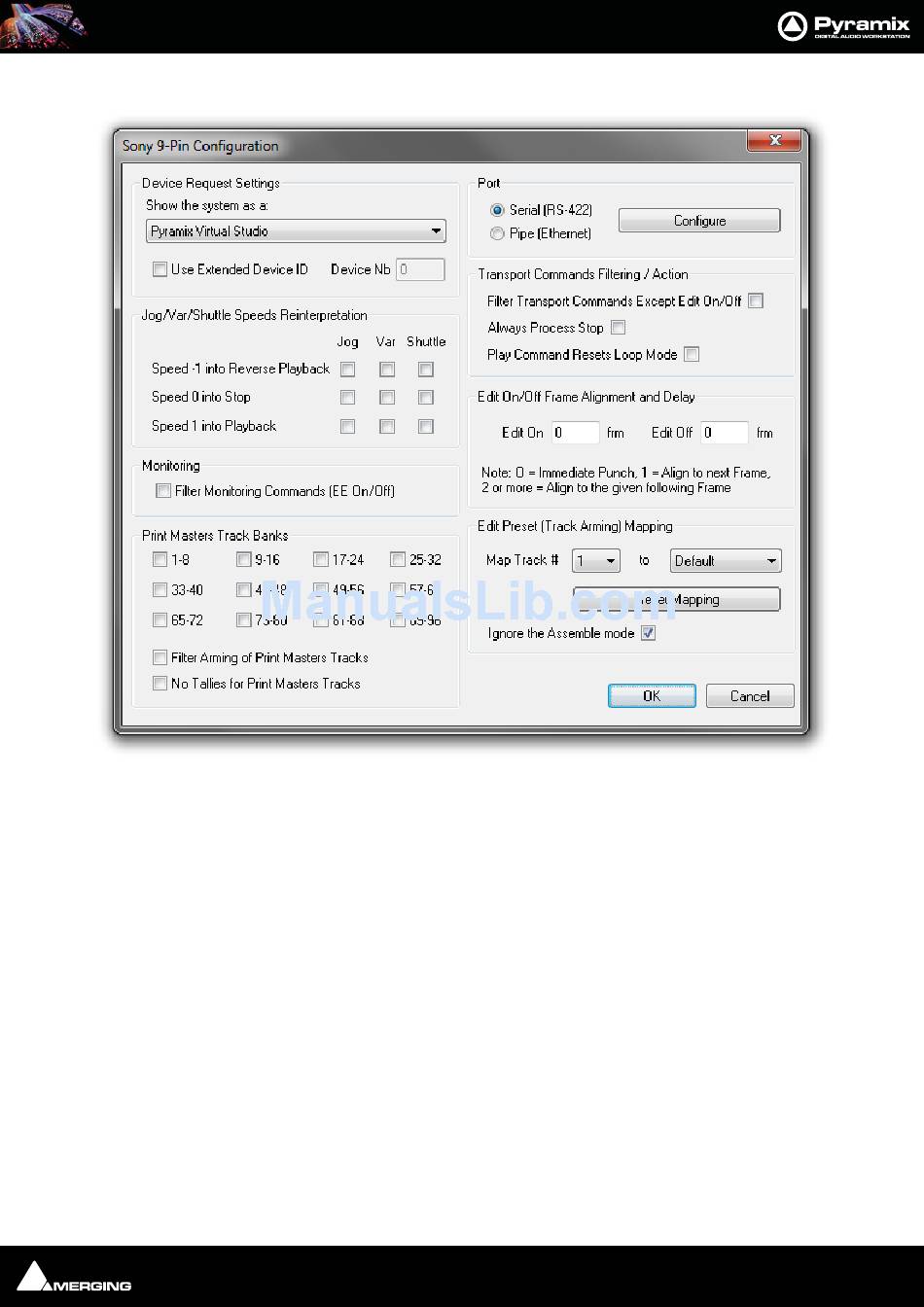

Sony 9-Pin Configuration dialog
