The legend for this display is as follows:
Process
Gate
Expander
Linear
Compressor 1
Compressor 2
Limiter
Reference
Adjusting Dynamics Parameters
Parameters can be altered by clicking and dragging on the control knobs or by clicking and dragging the control
handles in the graphic display. Handle controls are affected by other parameter settings. In some instances drag-
ging a handle will change more than one parameter.
Dancing Star Real-time Response Indicator
A red "dancing star" inside the graphic display gives a useful indication of how the processor is affecting program
material. It shows the output level in real-time when signal is present at the inputs.

Delay

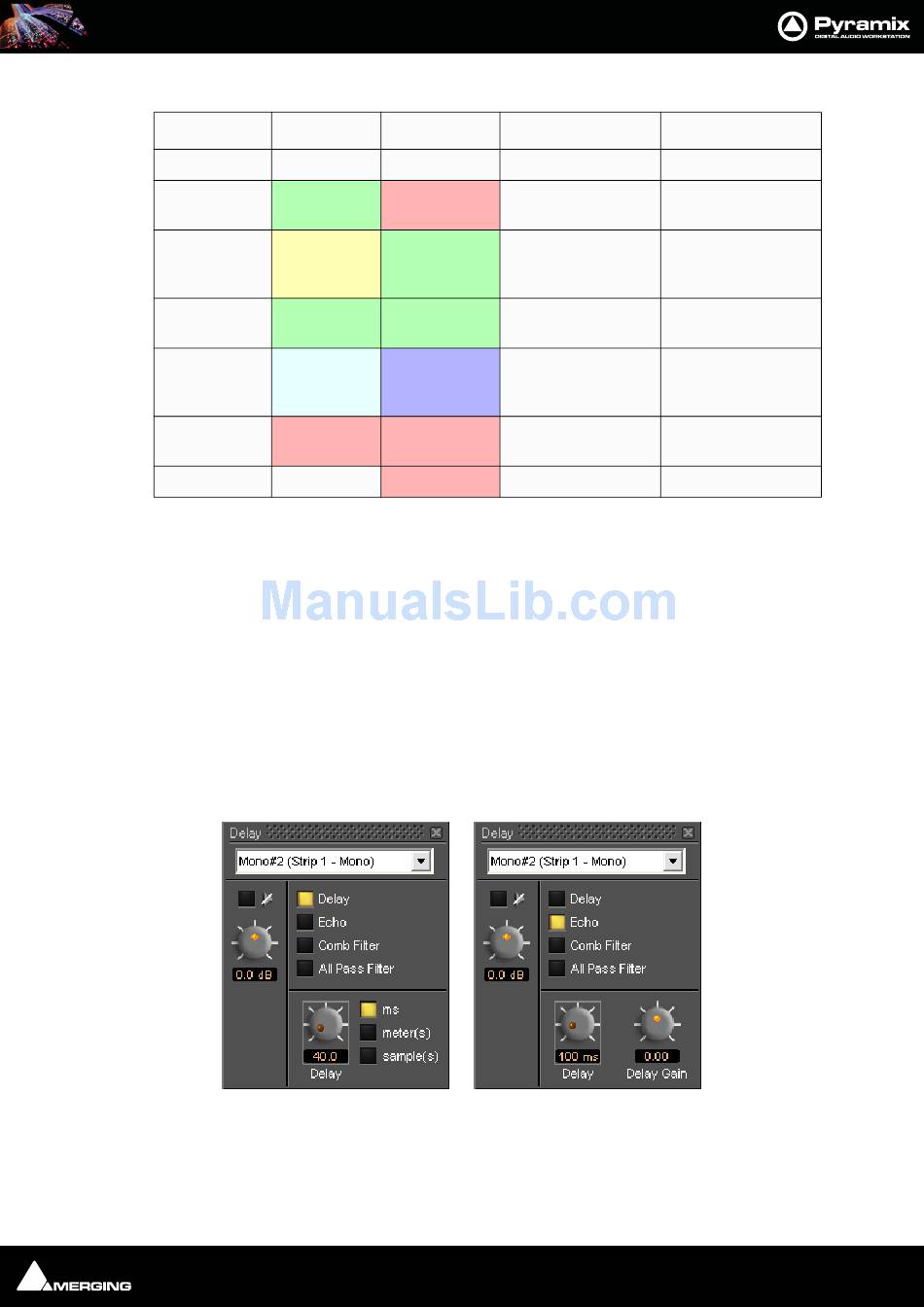

The delay Plug-in provides four delay-based effects. 'Plain-vanilla' Delay , Echo , Comb Filter and All Pass Filter .
The interface is slightly different when Delay is selected.
uses a straight-through signal path at unity gain with no direct (un-delayed) signal present at the output. The
length of delay can be set in milliseconds, meters or samples. The range of delay available is 0 to 800 ms. Delay
time can be set with the knob, or by typing in the desired delay amount in the text box.
Line Color Handle Color
Red ***
Green Red
Yellow Green
Green Green
Blue-Gray Blue
Red Red
Red
Effects and Plug-Ins : Delay
Line Slope Function
Gate on/off ***
Expander Ratio Gate Threshold,
Expander Ratio
Linear response Expander Threshold
between Expander
and Compress 1
Compressor 1 Ratio Compressor 1 Thresh-
old
Compressor 2 Ratio Compressor 2 Thresh-
old, Compressor 1
ratio
Shows Limit Limiter Threshold,
Compressor 2 Ratio
*** Limiter Threshold
Delay floating Windows
Handle Function
