Shift Order; Selecting, Copying And Moving Effects - Merging Pyramix User Manual

Each of these three options opens an Add Effect On XXX dialog, identical apart from the title
Note: That the different types of effect are shown by color. Pale Gray for VS3 and Red for VST.
These colors are also used when effects are shown in containers in the Strips display.
Remove
Remove Selected Effects..
Remove From Selected Strips..
Remove All From All Strips..
Remove All From All Buses..
Move Up
Move Down
Effects Section Containers
The Effects section of each strip is divided into two container areas by plug-in type, VS3 at the top and VST below.
Clicking on the Click to Add buttons in each container pops-up a list of available plug-ins in the relevant format
sub-grouped by type. E.g. Dynamics, Restoration etc. Simply select from the list by clicking on an entry to install
the plug-in, in the Strip. When a Strip or Bus has many effects, the container expands to accommodate them.

Shift Order

You can change the order of the VS3 and VST containers by clicking on the Shift Order buttons below the contain-
ers.

Selecting, Copying and Moving Effects

You can select an installed effect with a left-Click then drag and drop to move or Ctrl + drag and drop to copy
effects of the same type to a Strip or Bus of the same dimensions or change the order of effects within the effect
type container of the strip. SHIFT + Click ing a second effect with an effect already selected, selects all effects
between the first and last selected. Ctrl + Click adds to selection.
Pops up a sub-menu with options:
Moves the selected effect(s) up in the list.
Moves the selected effect(s) down in the list.
Mixer : Configure Page

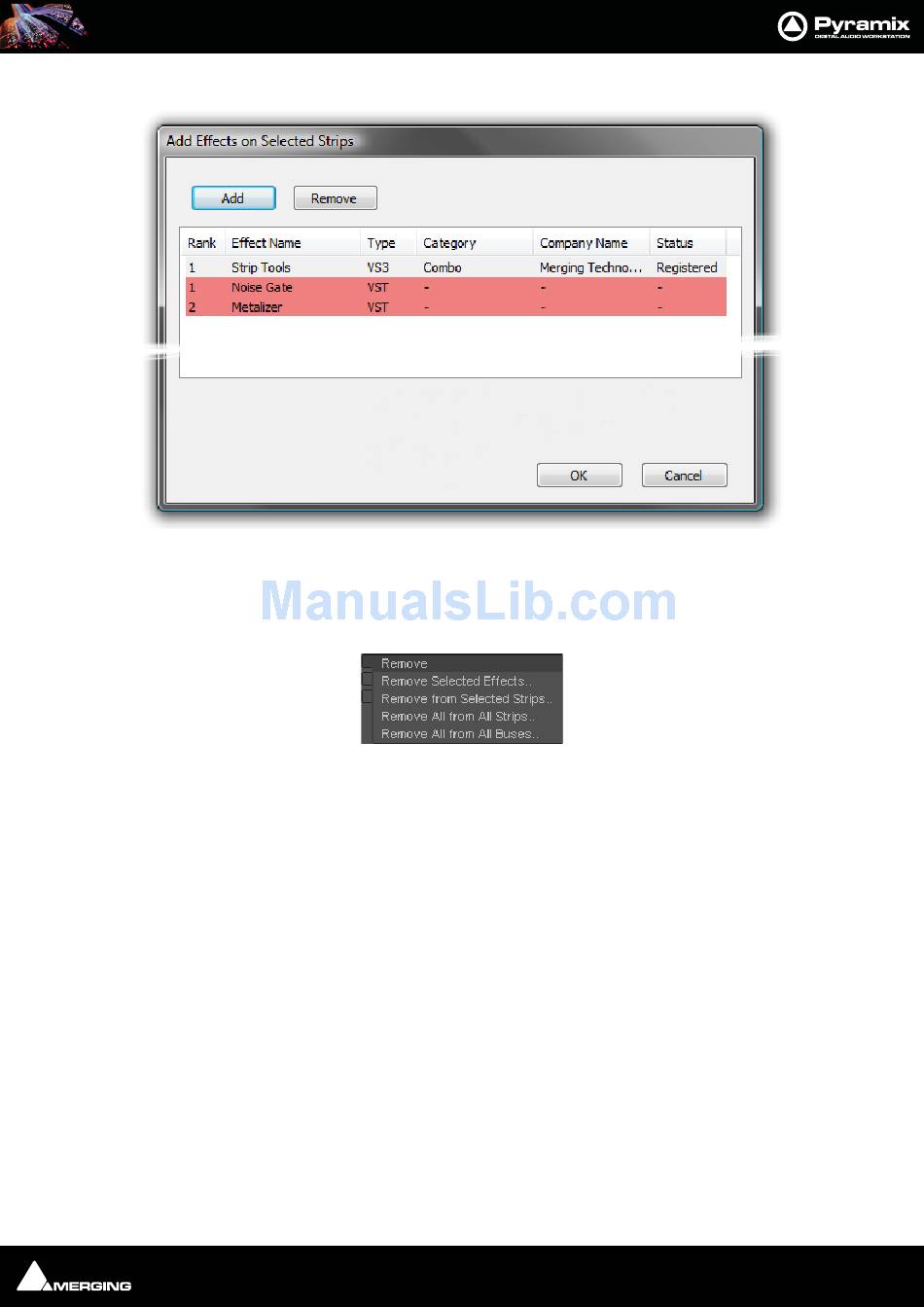

Add Effects On Selected Strips dialog
10 - 187
