Routing Button Matrix - Merging Pyramix User Manual

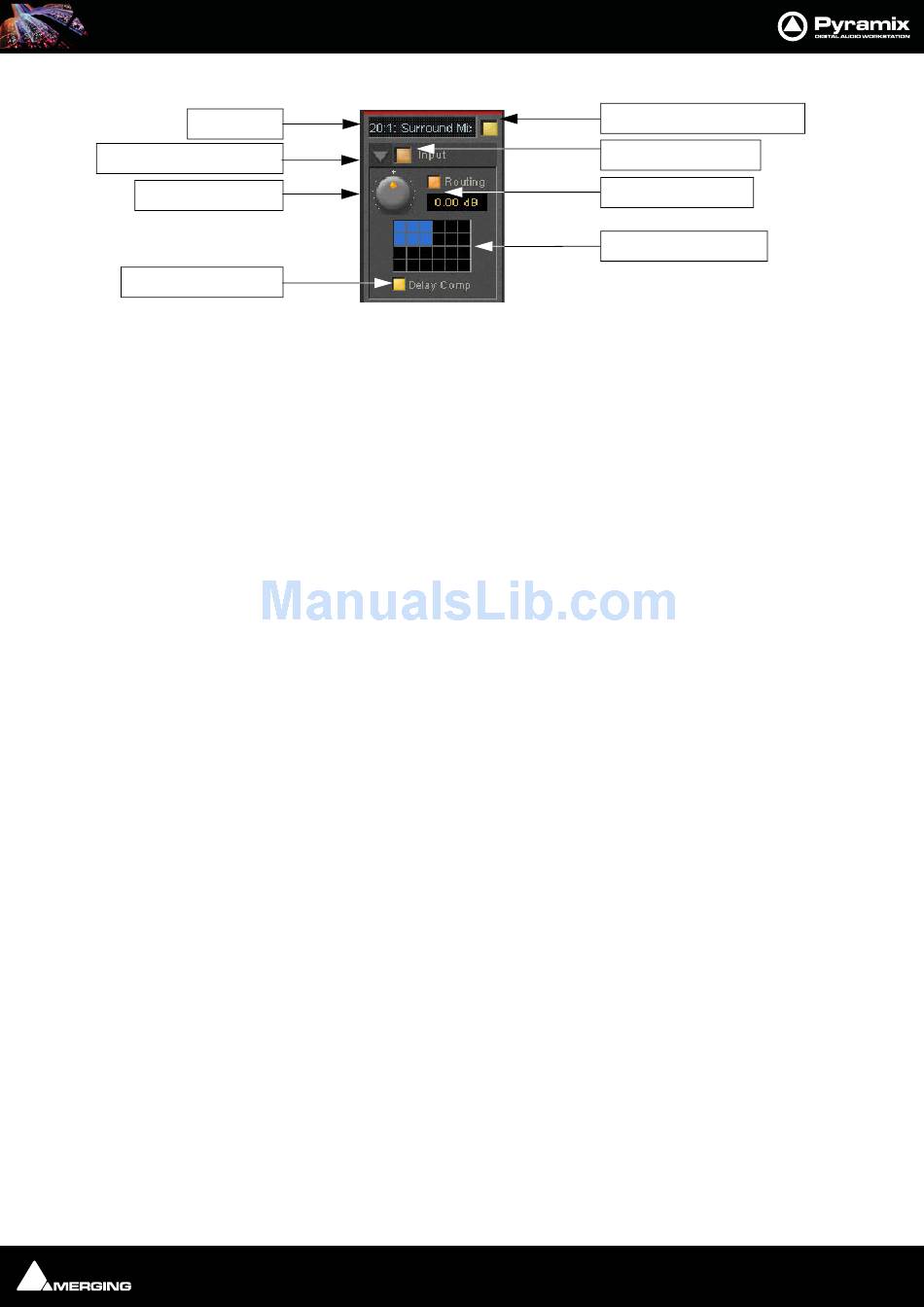

Main and Input Level Section
Strip Name
Show/Hide Input Section
Input Level Control
Delay Compensation
Strip Name
Displays the name of the strip the plug-in is assigned to. The name for the plug-in can be changed by double-click-
ing on the strip name, then typing in a name and hitting the Return key to confirm. If a plug-in name is changed in
this way, subsequent changes to the parent mixer-strip name do not affect the plug-in strip name. To recover the
name of the parent strip, simply remove the strip name.
Activate/Deactivate Plug-in
This button switches the entire Strip plug-in on or off. Note that when the plug-in is switched off, it doesn't con-
sume any DSP power.
Show/Hide input Section
Input Section On/Off
Input level control
Adjusts the input level over a range of -48 dB to +48 dB.
Show/hide Routing
By default Routing buttons are hidden. This button toggles between Showing and Hiding the Routing Buttons.
Routing remains active when hidden.

Routing Button Matrix

The buttons determine which audio channels running through the Bus will be processed by the plug-in. The num-
ber of buttons shown depends on the number of channels controlled by the Bus. In the case of a multiple sur-
round Bus this may be up to 64. A single instance of Bus Tools can process up to 8 channels selected from this
matrix.
A 5.1 surround bus will have six buttons. The order of the channels selected by the buttons is (from left to right):
Left, Center, Right, Left Surround, Right Surround, Subwoofer.
This enables, for example, the Left, Center and Right channels of a surround Bus to be independently processed
from the surround channels by adding two Bus Tools plug-ins to the Bus and selecting L, C, R in the first and LS and
RS in the second.
Using Bus Tools on multiple surround buses
Although a single instance of Bus Tools can process 8 channels it is simple to use multiple instances to process
many more with linked parameters. E.g. with four surround Buses you could use 3 instances. Assign the L & R chan-
nels of each Bus to Bus Tools A, the Centers of each bus to Bus Tools B and the Surround Ls and Rs of each Bus to
Bus Tools C. The 3 Bus Tools can then be linked as you wish by right-clicking and creating control groups in the yel-
low matrix. If Delay Compensation (see below) is activated all channels will remain time-aligned, even when using
Pre-Anticipation.
Linking Bus -Tools controls
Any choice of Bus Tools controls can be linked together. When you move any of the controls which is a member of
a link group, all the other members of the group also move. There are 48 link groups for linear/rotary controls and
48 link groups for switches.
Strip and Bus Tools : Bus Tools
Activate/De-activate Plug-in
Input Section On/Off
Show/Hide Routing
Routing Button Matrix
