Basic Strip

Basic Strip

Stereo Strips

In a Stereo Strip feeding a stereo bus the single bargraph meter is replaced by a pair and the simple pan pot is
replaced by a choice of Balance control, Dual Panner , Pan/Width or 5.x Legacy Stereo Panner accessible from
the right-click context menu. (See below)
Stereo Strips can reverse the Phase of both the Left and Right channels. The single button has four possible states:
Black:
White:
Red:
Blue:

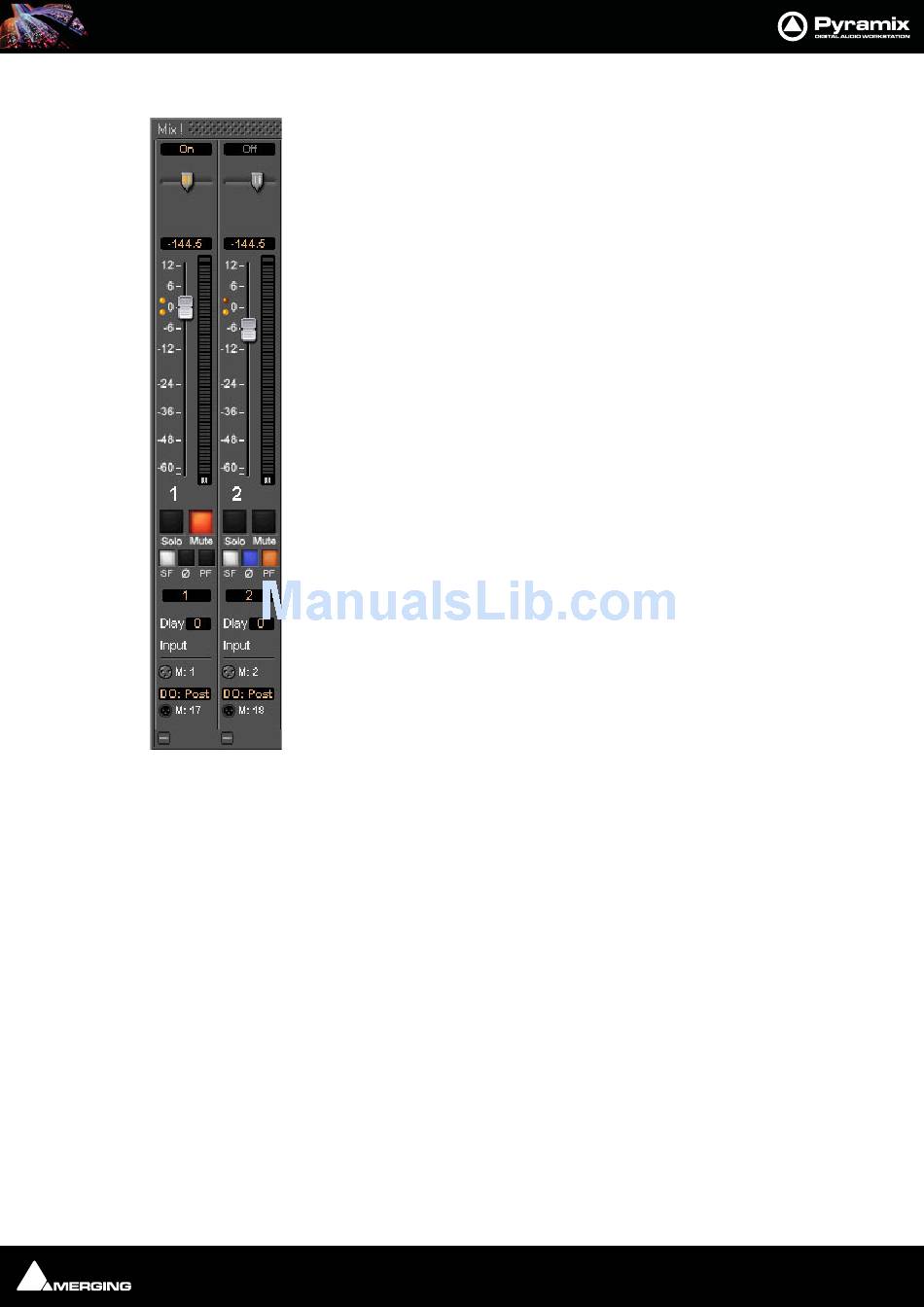

A basic mono channel strip contains:
On /Off toggle switch
Pan slider to Main output bus. In this case there is just a single stereo mix bus.
Numeric display of fader output level value, if cursor is over a fader knob shows fader
gain. If cursor is over pan-slider, shows current pan position. May be clicked to directly
enter a fader gain value.
Level Bargraph Rotary Controls and Faders
Rotary Controls, sliders and Faders may be adjusted by grabbing them with the mouse
and dragging. Rotary controls and horizontal sliders are adjusted by dragging left or right
and faders by dragging up or down. Double-clicking a Fader or Rotary knob returns the
value to the default. E.g. unity gain on a channel strip fader. Keyboard up and down
arrows adjust gain by 0.1dB per press, with Shift 0.5dB per press and with Ctrl + Shift
1.0dB per press. Bargraph shows peak level.
Buttons
Buttons on the main mixer surface are black when inactive. When active they 'light up' .
Solo solos the strip, Mute mutes the strip Ctrl + Solo cancels all other Solos.
S A F E prevents the strip being muted by solo operations elsewhere. Ø reverses the chan-
nel phase. PF changes the metering position to Pre-Fader.
Delay A delay value (in samples) can be set in this box.
Input Clicking on Input pops-up a box with the choice of the strip taking its input from a
physical connection or any output bus.
Logical Input and Direct Output Assignment
Right-click on the XLR icons to pop-up a drop down list of valid assignments.
Note: Direct Outputs must first be enabled in the Configure page. Please
see: Channel Direct Outputs on page 200
No phase inversion
Left channel inverted
Right channel inverted
Both channels inverted
