Upgrade and Troubleshooting Procedures

Adding a Front Panel Controller to an existing system

5-1
The following procedures may be done in the field.
• Add Front Panel Controller (FPC 1000) - see Page 5-1.
• Installing a Software Upgrade - see Page 5-3.
• Swapping RS-232 / RS-422 Ports - see Page 5-4.
• Troubleshooting a system problem - see Page 5-5.
• Adding Video cards to a Matrix 6400 Wideband Switcher- see Page 5-7.
• Adding Video cards to a Matrix 3200 Wideband Switcher- see Page 5-9.
• Adding BMEs to a Matrix 3200/6400 System - see Page 5-13.

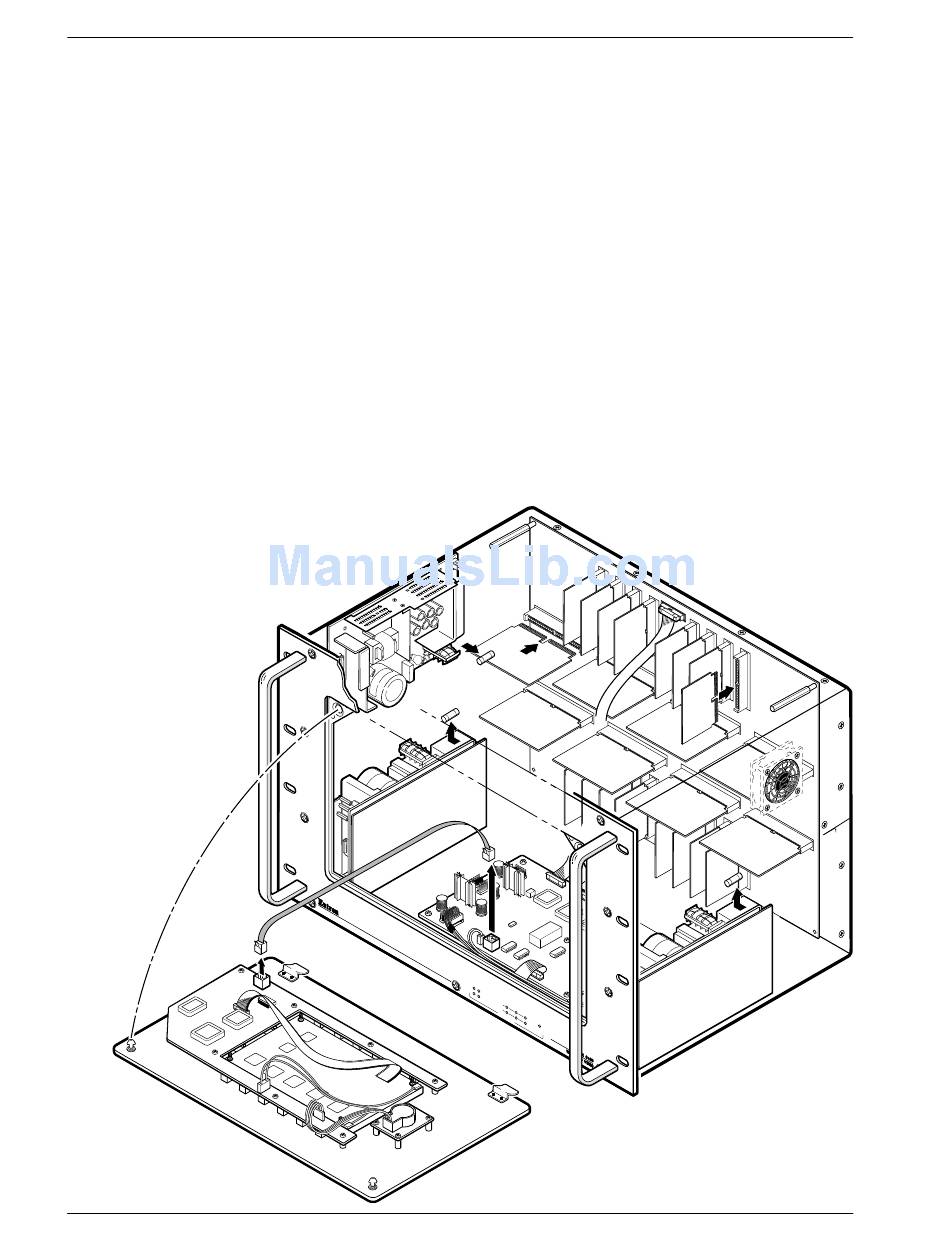

Adding a Front Panel Controller to an existing system involves replacing the
blank Access Panel on any BME (except Sync) with the FPC 1000 panel. A
system can only have one Front Panel Controller and it must be installed on
BME #0. The details for installing the FPC 1000 are included in the User's
Manual provided with the unit.
Fuse
Figure 5-1.A
Chapter 5 • Upgrades and Troubleshooting
Fuse
Cable
P O
W E
R S
+ V
U P
P L
-V IE S
P R
IM A
R Y
R E
D U
N D
A N R S C O
T T X M M
2 3 U N
2
IC A
T IO
B M
R X N S
E
R E
D IA
M O
G N T E
O S
S Y
T IC S T
S S TA E M
T U
S
Matrix 6400 Wideband Video BME
Extron • Matrix 3200/6400 Series • User's Manual
1 9
J 1
2 0 1
2
Fuse
