Video Formats supported:
RGBHV – RGB video with separate horizontal and vertical sync
RGBS – RGB video with composite sync
RGsB – RGB video with sync on green
Virtual Control – Logical assignment of physical Input/Output connector.
Microprocessor Control – A Microprocessor enables the Matrix Wideband
Video switcher to be programmed from a host system, or from the optional
Front Panel Controller (FPC 1000).
Memory – Nonvolatile memory contents remain valid after power is
removed normally or due to a power failure.
Global Preset configurations (32 +1 ) – Thirty-two Global Preset
configurations plus the current I/O configuration are stored in nonvolatile
memory. As new configurations are developed, they may be stored as
Global Presets (up to a total of thirty-two) in the Preset memory. Any preset
may later be recalled – instantly setting the switcher to the desired
configuration.
Room configurations – 10 Room configurations with 10 Presets for each
Room enables 10 different remote locations to control switching for that
particular location using an optional MKP 1000 Remote Keypad. Room
Configurations may be significantly different from room to room and would
probably only include a select number of Inputs and Outputs per room.
RS-232/RS-422 – The Matrix Wideband Video Switchers can be controlled
by any remote Host system with serial communications capability.
Rack Mountable metal enclosures – Matrix Wideband Video Switchers are
housed in rack mountable-metal enclosures (64 x 64 = 7U high,
32 x 32 = 5U high). An internal switch mode power supply is standard for all
models.
Field Upgradable Modular Design – The modular design of the Matrix
3200/6400 allows users the flexibility to purchase only the modules required.
Optional Redundant Power Supply – If the main power supply fails, the
Redundant Power Supply will take over automatically.
Optional FPC 1000 Front Panel Controller – The FPC 1000 mounts in
place of the blank access panel in the master module (BME #0) and enables
the user to perform most configuration operations at the switcher. See FPC
1000 User's Manual (Extron Part #68-355-02).
BME
1 2 3 4
-
4
+
ADDRESS
5 6 7 8
9 10 11 12
ANAHEIM, CA
MADE IN USA
13 14 15 16
A INPUTS 1 - 16
75 OHM
B
C
510 OHM
1 8 9 16
D
E
A
1 2 3 4
B
C
D
E
5 6 7 8
9 10 11 12
13 14 15 16
IN
OUT
AC POWER INPUT
33 34 35 36
FUSE: 250V 0.8A TT
37 38 39 40
41 42 43 44
45 46 47 48

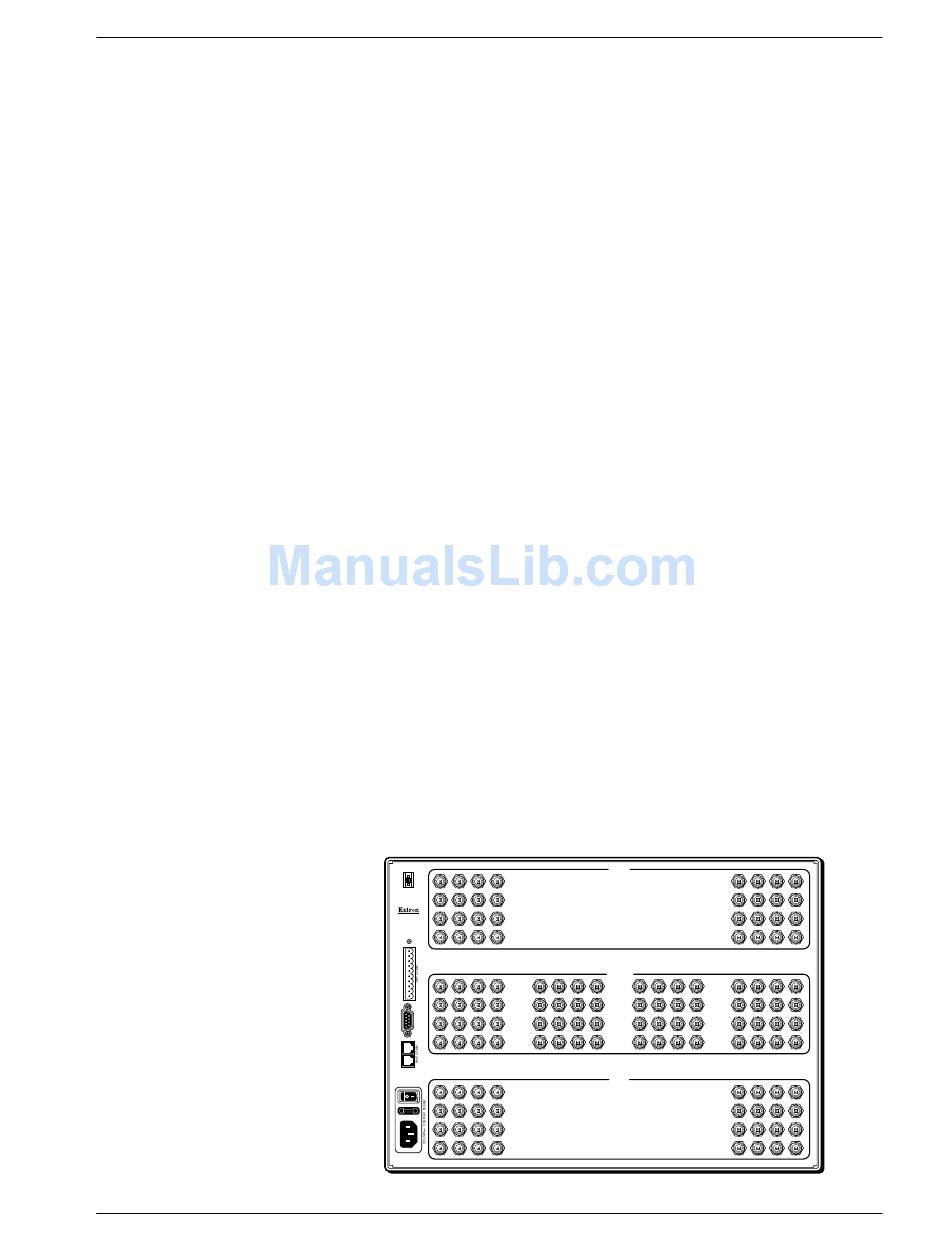

Figure 1-1.A Matrix 6400 Wideband Video Switcher (Rear Panel View)
