- Page 1 WPP-333-D OR SSP-313-D-ADI2.01-ISSUE4.0 SERVICE MANUAL MODEL WPP-333-D WEATHERPROOF TELEPHONE MODEL SSP-313-D STAINLESS STEEL PANEL TELEPHONE EQUIPPED WITH ADI2.01 FIRMWARE Serving the Telephone Industry Since 1930 519 W South Park Street Communication Equipment Okeechobee, FL 34972 & Engineering Company Voice: 863-357-0798...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL WPP-333-D OR SSP-313-D EQUIPPED WITH ADI2.01 FIRMWARE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
PROGRAMMING CONTINUED…..............6 TESTING/OPERATION ..................7 RECOMMENDED TOOLS AND TEST EQUIPMENT ........7 INSTALLATION INSTRUCTIONS ..............8 SPECIFICATIONS....................9 PARTS LIST ......................10 REPAIR & RETURN POLICY ................11 10.0 WARRANTY......................12 11.0 DIAGRAM......................13 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction

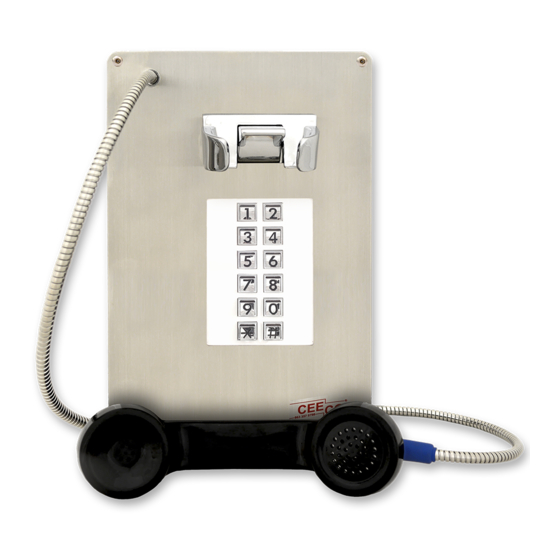

The CEECO Model WPP-333-D or Model SSP-313-D Telephone is designed for automatic dialing applications. The SSP-313-D is assembled on a sturdy and attractive stainless steel panel. The WPP-333-D is essentially the SSP-313-D housed in a sturdy, cast aluminum, weatherproof housing. -
Page 5: Programming
ISSUE 4.0 PROGRAMMING Using a security tool (CEECO part number 301-037, sold separately) loosen and remove the security screws. Separate the telephone assembly from the mounting or housing. Looking at the rear of the phone, locate the multi-color ribbon cable, which extends from the printed circuit board and has an open white connector on the free end. -
Page 6: Programming Continued
Programming is now completed. Hang up the phone and return the two plastic mini-jumpers to the “OFF” position as depicted on the last page of this manual. Remove the programming keypad and store it for future use. The phone is now ready for Testing/Operation. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Testing/Operation
RECOMMENDED TOOLS AND TEST EQUIPMENT Volt Meter 1/4" Nut Driver Flat Blade Screw Driver Security Tool 301-037 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Installation Instructions
Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Specifications
4 HOLES SPACED 8" X 5 7/8" X 13/32" WEIGHT: APPROXIMATELY 12 POUNDS MEMORY RETENTION: LITHIUM BATTERY - LONG LIFE FCC REGISTRATION: BW88T7-13823-TE-T UL LISTED NO. 6OF5 RINGER EQUIVALENCY: 0.8A TYPE JACK: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Parts List
Microswitch assembly 331-010 Stainless Steel Panel 331-005 Cast Aluminum Weather Proof Case 301-051 Modular Jack 301-018 30" Modular Cord 650-570 Network Cable 301-016 Security screw Accessories: 301-064 Security tool Handset, 18" w/lanyard 301-106 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Repair & Return Policy
NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. RETURN FOR CREDIT Material returned for credit is subject to a 20% restocking charge, based on the manufacturer’s list price. -
Page 12: Warranty
CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation. -
Page 13: Diagram
ON position BEFORE going off- hook. When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
