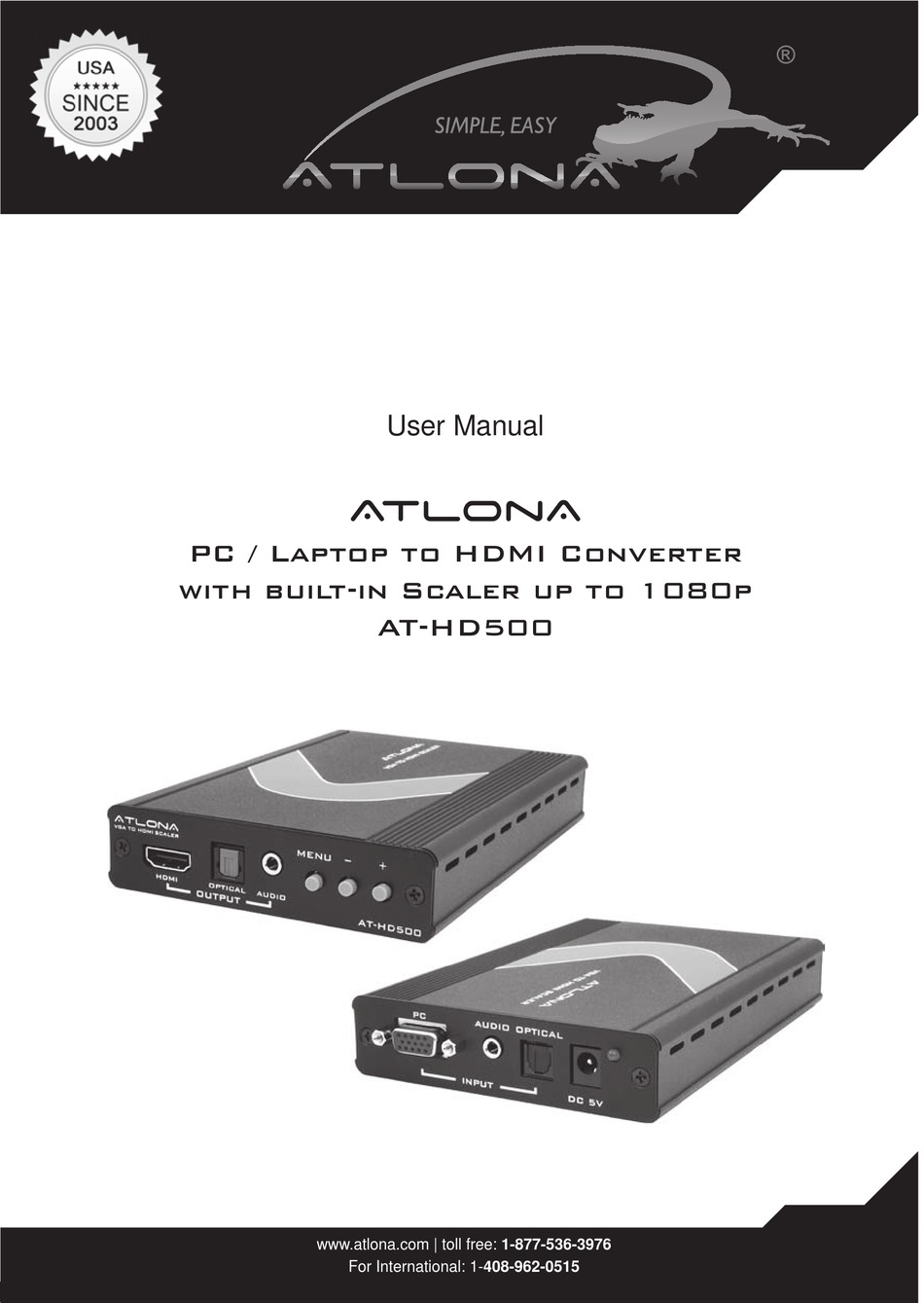

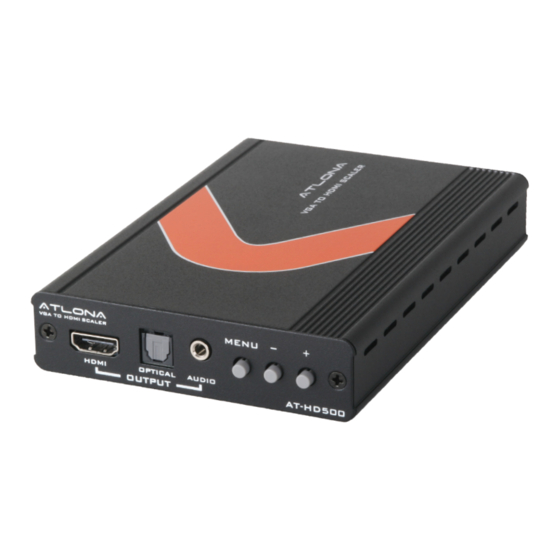

- Page 1 User Manual AtlonA PC / Laptop to HDMI Converter with built-in Scaler up to 1080p AT-HD500 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
7. Activating a VGA output on a Laptop ..........8. Connection Diagram ..........9. Support Resolution ..........10. Resetting the Unit ..........11. Safety Information ..........12. Warranty ..........13. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
“If user is seeing a color bar, it means that there is no input signal present. The color bar will be active for 15min and after the Atlona device will go to the stand-by mode and disconnect from the display. As soon as incoming video signal will resume, the Atlona device will establish a new connection with the display”... -
Page 4: Panel Descriptions
4. Menu Button: Press the MENU button to bring up OSD operation menu. (See section “6. OSD Operation” for reference.) 5. +/- Button: b. Once the desired option is selected, use + and – buttons to toggle between setting values. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Osd Operation
EXIT Close OSD Menu ACTIVATING A VGA OUTPUT ON A LAPTOP Most laptops have the VGA output disabled by default. In order to use Atlona converter user would have to en- able it. A) Mirror mode. In this mode, your desktop (or screen) is duplicated on the second display, so your audience sees what’s on your screen. - Page 6 Extend my Windows desktop onto this monitor check box. 3.Under Screen resolution, drag the slider to the right to change the screen resolution of Monitor 2 to 1024 by 768 pixels, and then click OK. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
- Page 7 By taking advantage of additional monitors, you can share information with others more effectively when you’re giving a presentation and also improve your productivity by extending your workspace when you’re using your mobile PC at your desk. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 8: Connection Diagram
3. Connect the power plug back in and continue holding the “Menu” for another 5 seconds 4. Release the “Menu” and allow up to 10 seconds for the unit to connect to the display www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your the manufacturer could void the AT-HD500. Opening the product will void the user’s authority to operate this warranty. equipment. - Page 10 Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
-
Page 11: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976... - Page 12 | toll free: 1-877-536-3976 For International: 1-408-962-0515...
