XTR-BLUE1 Bluetooth® Camera w/DVR Setup and User Guide
The XTR-BLUE1 is a high-end, mini high-definition digital video camera with an integrated DVR in an
ear-piece design. Its features include:
3MP color CMOS sensor for video and photographs
•
Video recording: 736 x 480 @ 30 FPS with M-JPEG codec
•
Sound-activated video recording
•
4 GB internal flash memory with data security encryption
•
Real time clock display for video and photographs
•
USB 1.1/2.0 support for data off-loading
•
LED indicator light
•
Memory space, battery level reporting function
•
TV-OUT
•
Bluetooth headset functionality
•
NOTE: This device does not include sound recording.
•

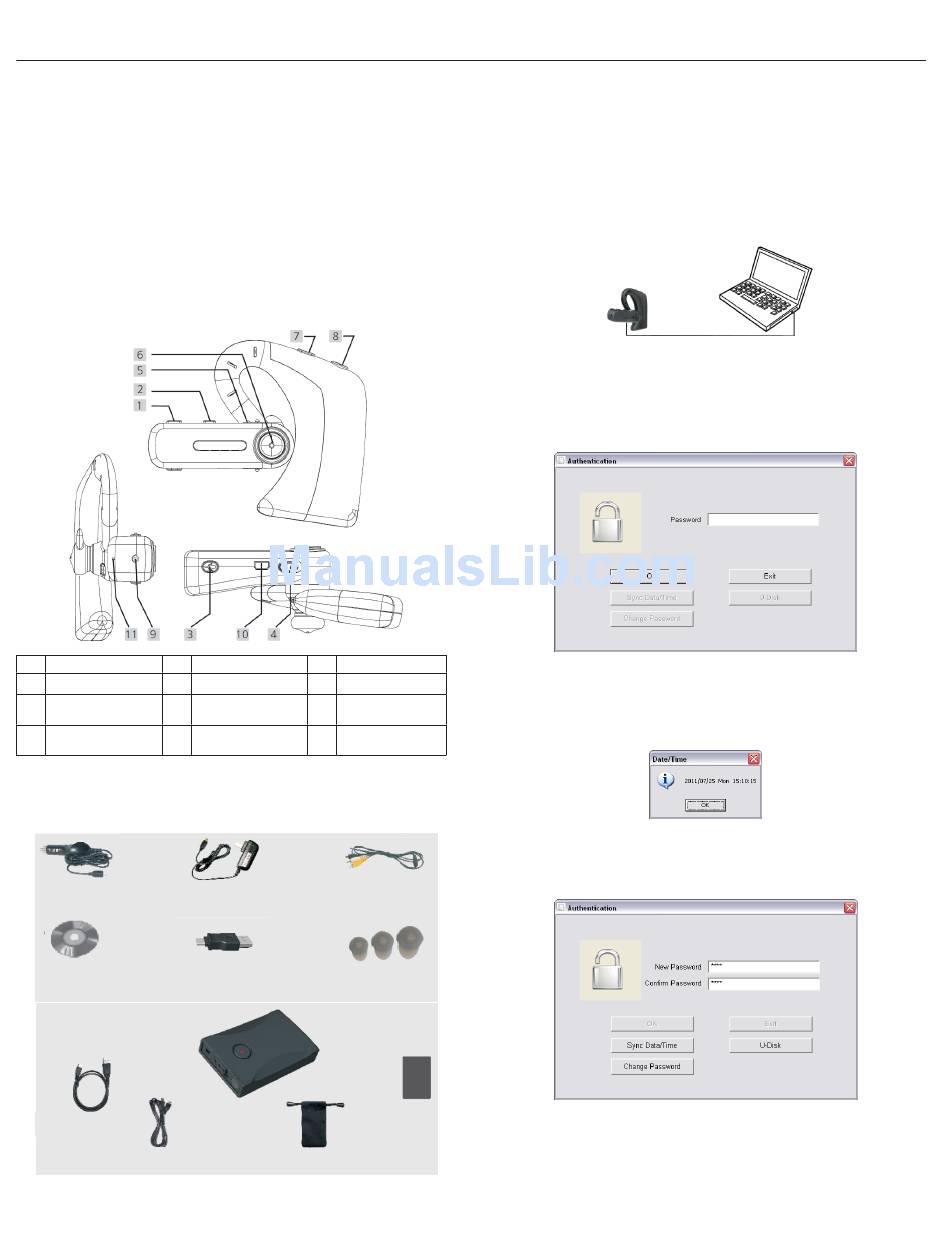

1 Shutter button 5
2 Stop button 6
3 Microphone 7
4 Voice activated switch 8
Package contents
Cigarette Lighter Power AC Power
Adapter and Cable
CD USB Connector
(Manual)
USB Cable
Mini-B 8-Pin
Discharge Wire
1
Power switch 9 Lens
Video recording button 10 USB connector
Bluetooth Headset volume 11 Microphone
loop control
Bluetooth power switch /
answer / ring off
AV Cable
Adapter
Ear Pieces
Adapter
Portable
Power
Supply
Pouch

Step 1. Initial setup

U-Disk mode / Clock update

U-Disk mode is used for changing the password, setting the internal clock, and overwriting existing data
in memory, and other settings. This procedure should be performed before using the XTR-BLUE1:
Set the XTR-BLUE1 power switch to OFF (power off).
•
Connect the USB cable provided between the USB jack on the XTR-BLUE1 and a USB jack on a
•
computer running a Microsoft® Windows® operating system (see Specifications for Operating
System Platforms).
USB jack
Power on the XTR-BLUE1.
•
After the operating system recognizes the XTR-BLUE1, use Windows Explorer to open the directory
•
for the XTR-BLUE1 (USB) device.
In the directory file list, double-click the filename Authentication.exe to open it. An
•
Authentication window will open.
In the Authentication window, enter the default password, PD20, then click OK.
•
Click the Sync Date/Time button to update the clock in the XTR-BLUE1 with the clock settings of
•
your computer.
When the date and time confirmation window opens, click OK.
•
Click the Change Password button.
•
In the Password window, enter a New Password for the XTR-BLUE1, then re-enter it in the
•
Confirm Password field.
Velcro®
Click U-Disk. A directory file list for the device will open.
Patch
In the file list for your XTR-BLUE1, find and open the initialization file. This file is appended with a .ini
•
extension, and can be edited with any text editor, such as Notepad.
PC USB
USB cable
jack
XTR-BLUE1_SQ
12/7/11
