WPP-531-DD OR SSP-511-DD-SPK-DD-ADA-R1(1999)-BlackButtons-ISSUE4.0
SERVICE MANUAL
FOR
MODEL WPP(HOB)-531-DD-ADA
WEATHERPROOF TELEPHONE
OR
MODEL SSP-511-DD-ADA
STAINLESS STEEL PANEL TELEPHONE
EQUIPPED WITH SPK-DD-ADA-R1 FIRMWARE
BLACK CALL BUTTONS
Serving the Telephone Industry Since 1930
Communication Equipment
519 West South Park Street
& Engineering Company
Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CEECO SSP-511-DD-ADA
Summary of Contents for CEECO SSP-511-DD-ADA
- Page 1 WPP-531-DD OR SSP-511-DD-SPK-DD-ADA-R1(1999)-BlackButtons-ISSUE4.0 SERVICE MANUAL MODEL WPP(HOB)-531-DD-ADA WEATHERPROOF TELEPHONE MODEL SSP-511-DD-ADA STAINLESS STEEL PANEL TELEPHONE EQUIPPED WITH SPK-DD-ADA-R1 FIRMWARE BLACK CALL BUTTONS Serving the Telephone Industry Since 1930 Communication Equipment 519 West South Park Street & Engineering Company Okeechobee, FL 34972...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL WPP(HOB)-531-DD-ADA OR SSP-531-DD-ADA EQUIPPED WITH SPK- DD-ADA-R1 FIRMWARE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
RECOMMENDED TOOLS AND TEST EQUIPMENT ........7 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..... 8 TESTING ......................... 9 SPECIFICATIONS....................10 PARTS LIST ......................11 10.0 REPAIR AND RETURN INFORMATION ............12 11.0 WARRANTY POLICY ..................13 12.0 DIAGRAM......................14 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction

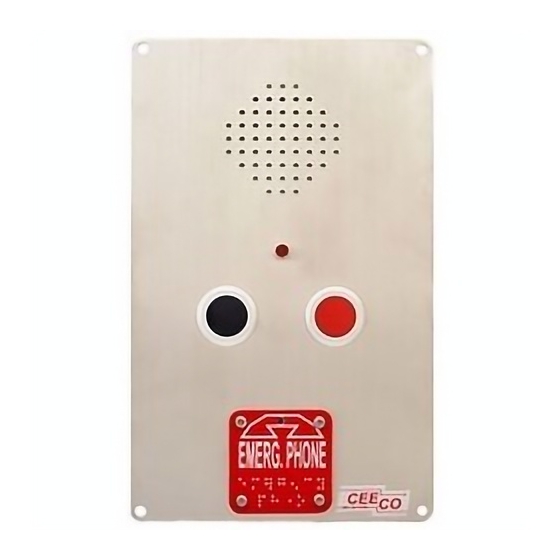

ISSUE 4.0 INTRODUCTION The practices in this manual provide installation and maintenance information for the CEECO Model WPP 531-DD-ADA Handsfree Weatherproof Telephone or Model SSP-511-DD-ADA Handsfree Stainless Steel Panel Telephone. The information in this manual is subject to change without notification. -
Page 5: Programming
#97#0000101. This entry will set the phone for no incoming calls, wide dial tone-detection window, time-out disconnect enabled, with a 3 minute time-out. Notice that the dialing is done in a continuous sequence with no pauses or steps in between. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Continued
# 0 1 followed by the desired number. The number may be up to eleven (11) digits in length. Example: #01911. When the right button is pressed, the number 911 will automatically dial out. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
Otherwise the phone will only hang up after detecting the far end wink back or it times out, if so programmed. RECOMMENDED TOOLS AND TEST EQUIPMENT DTMF test set Volt/Ohm meter 3/8” Nut Driver Flat Blade screwdriver Security Tool (CEECO P/N 301-064) CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Installation Notes And Assembly Instructions
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Testing
When the call is finished, press the LEFT black button or wait until timeout occurs. Reaction: The call is terminated and the LED will turn off. The phone will return to an “on-hook” condition, ready for additional calls. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Specifications
DIMENSIONS: (WPP) (including door). 4 holes spaced 8” x 5 7/8” x 13/32” MOUNTING: (or optional pole mounting bracket) WEIGHT: Approximately 12 pounds. UL LISTED NO.: 6OF5 FCC REGISTRATION: BW-88T7-68447-KX-T TYPE JACK: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
OUTER COVER SECURITY SCREW 301-018 MODULAR LINE CORD 531-000 FACE PLATE 301-054 MODULAR CONNECTOR (RJ11C) 531-200 SERVICE MANUAL 700-008 KEYPAD CABLE 660-000 CEECO SPK BOARD 705-110 CONNECTORIZED KEYPAD 6020-B MOMENTARY PANEL SWITCH 14024 SPEAKER 12017 RINGER ACCESSORIES: 301-064 SECURITY TOOL CEECO Communication Equipment &... -
Page 12: Repair And Return Information
(863) 357-0798 Voice (863) 357-0006 Fax 10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 13: Warranty Policy
11.0 WARRANTY POLICY 11.1 GENERAL CEECO products are guaranteed to be free of defects in material and workmanship for a period of 365 days from the date of original purchase. CEECO's obligation under this warranty is limited to repair or replacement of any part found to be defective by CEECO. -
Page 14: Diagram
ON position BEFORE going off- hook. When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
