SERVICE MANUAL
WEATHERPROOF TELEPHONE
WEATHER RESISTANT TELEPHONE
STAINLESS STEEL PANEL TELEPHONE
WITH OPTIONAL SECOND-NUMBER AUTO DIAL
FEATURE AND OPTIONAL ADA FEATURE
EQUIPPED WITH SPK1.07UNVL FIRMWARE
Communication Equipment
& Engineering Company
FOR
MODEL WPP-531-D2
OR
MODEL HOB-531-D2
OR
MODEL SSP-511-D2
WPP(HOB)-531-D2 OR SSP-511-D2-SPK1.07UNVL-ADA-ISSUE4.0
Serving the Telephone Industry Since 1930
th
1580 NW 65
Avenue
Plantation, FL 33313
Voice: 954-587-5430
Fax:
954-587-5440
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CEECO WPP-531-D2
Summary of Contents for CEECO WPP-531-D2
- Page 1 WPP(HOB)-531-D2 OR SSP-511-D2-SPK1.07UNVL-ADA-ISSUE4.0 SERVICE MANUAL MODEL WPP-531-D2 WEATHERPROOF TELEPHONE MODEL HOB-531-D2 WEATHER RESISTANT TELEPHONE MODEL SSP-511-D2 STAINLESS STEEL PANEL TELEPHONE WITH OPTIONAL SECOND-NUMBER AUTO DIAL FEATURE AND OPTIONAL ADA FEATURE EQUIPPED WITH SPK1.07UNVL FIRMWARE Serving the Telephone Industry Since 1930...
-
Page 2: Important Information
Issue 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL WPP-531-D2, HOB-531-D2, OR SSP-511-D2 WITH SPK1.07UNVL FIRMWARE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....... 9 7.0 SPECIFICATIONS....................10 8.0 PARTS LIST ......................11 9.0 FCC NOTICE......................12 10.0 REPAIR AND RETURN INFORMATION ............13 11.0 WARRANTY POLICY ..................14 12.0 DIAGRAM....................... 15 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction

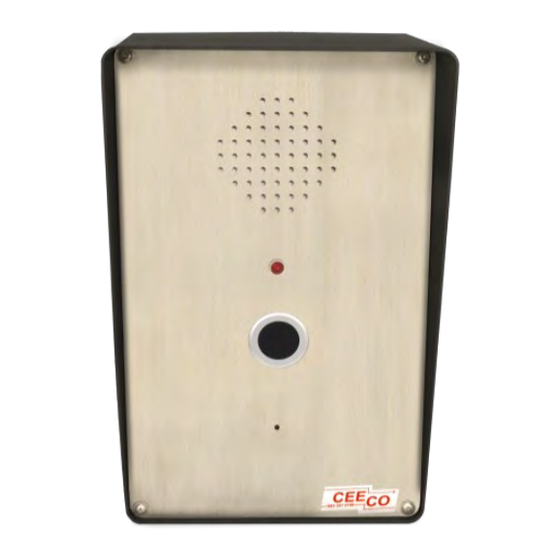

GENERAL The CEECO hands free telephone is a sturdy, vandal resistant, stainless steel speakerphone. Instead of a hookswitch and handset, the telephone has a press to start/press to stop CALL button for the initiation and termination of phone calls. Manual volume control is also provided inside the telephone on the PC board. -
Page 5: Programming
The number may be up to eleven (11) digits in length. Example: Enter # 1 9 5 5 5 1 2 1 2. This will program the phone to automatically dial the number 555-1212, when the CALL button is pressed. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Continued
(2) unanswered rings of the first auto-dial number. Digit 7- Always 0. Digit 8- Do not dial PBX access number. Digit 9- Always 0. Digit 10- 250 ms wink detect. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
(1=50ms incremental to 450 ms. 5 is recommended). Once programming has been completed, press the “CALL” button to 3.10 hang-up the phone and return the two mini-jumpers to the “OFF” position. The telephone is now ready for testing/operation. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Testing/Operation
If the phone was programmed not to allow incoming calls, the microphone will not turn on. Testing is now complete. If trouble was encountered please refer to section 10.2 of this manual, otherwise the phone is operational. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Recommended Tools And Test Equipment
DTMF Test Set Volt/Ohm Meter Flat Blade Screw Driver 3/8” Nut Driver Security Tool-CEECO P/N 301-064 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS Using a 301-064 security tool (sold separately) remove the four security screws. The security tool is for a standard 5/32” button screw generally used on the framework of the phone booths. -
Page 10: Specifications
SSP Model - 4 Holes spaced 10 3/4” x 6.5” WEIGHT: WPP Model - 17 lbs. HOB Model - 10 lbs. SSP Model - 5 lbs. MEMORY RETENTION: Non-volatile memory retention FCC REGISTRATION: BW8USA-73021-MT-E UL LISTED NO.: 60F5 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
PART NUMBER DESCRIPTION 331-006 Outer cover security screw. 301-018 Modular line cord. 301-054-UL Modular Connector (RJ11C). 700-008 Keypad Cable. 660-000 CEECO SPK PC board. 705-110 Connectorized Keypad. 6020 Momentary Panel Switch. 14024 Speaker. 14067 Microphone. 331-005 Weatherproof housing (WPP) 331-010 Stainless Steel Panel. -
Page 12: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 7.0. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Repair And Return Information
10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 14: Warranty Policy
This warranty is limited to the value of material only. CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation. -
Page 15: Diagram
POSITION BEFORE GOING OFF HOOK When programming is completed, move the mini- jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
