SERVICE MANUAL

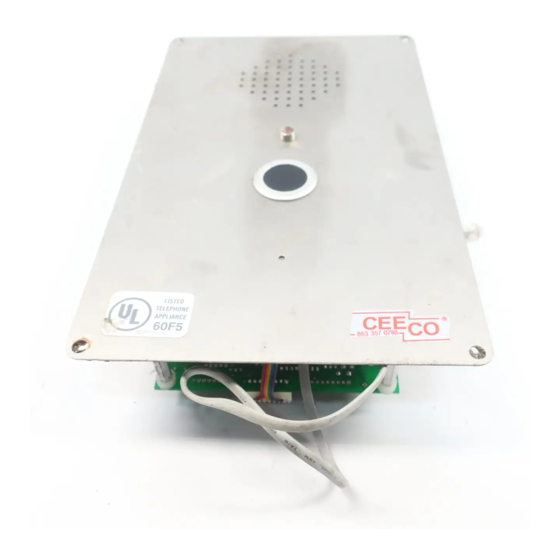

WEATHERPROOF TELEPHONE
WITH OPTIONAL ADA FEATURE
STAINLESS STEEL PANEL TELEPHONE
WITH OPTIONAL ADA FEATURE
EQUIPPED WITH SPK1.07UNVLADA FIRMWARE
Communication Equipment
& Engineering Company
FOR
MODEL WPP-531-D
OR
MODEL SSP-511-D
WPP-531-D OR SSP-511-D-SPK1.07UNVLADA-ADA-ISSUE4.0
Serving the Telephone Industry Since 1930
519 W South Park Street
Okeechobee, FL 34972
Voice: 863-357-0798
Fax:
863-357-0006
Advertisement
Table of Contents
Related Manuals for CEECO WPP-531-D
Summary of Contents for CEECO WPP-531-D
- Page 1 WPP-531-D OR SSP-511-D-SPK1.07UNVLADA-ADA-ISSUE4.0 SERVICE MANUAL MODEL WPP-531-D WEATHERPROOF TELEPHONE WITH OPTIONAL ADA FEATURE MODEL SSP-511-D STAINLESS STEEL PANEL TELEPHONE WITH OPTIONAL ADA FEATURE EQUIPPED WITH SPK1.07UNVLADA FIRMWARE Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street &...
-
Page 2: Important Information
Issue 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL WPP-531-D OR SSP-511-D EQUIPPED WITH SPK1.07UNVLADA FIRMWARE AND OPTIONAL ADA FEATURE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....... 8 7.0 TESTING........................9 8.0 SPECIFICATIONS....................10 9.0 PARTS LIST ......................11 10.0 FCC NOTICE......................12 11.0 REPAIR AND RETURN INFORMATION............13 12.0 WARRANTY POLICY ..................14 13.0 DIAGRAM......................15 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
Issue 4.0 INTRODUCTION The practices in this manual provide installation and maintenance information for Model WPP-531-D or Model SSP-511-D Telephone with optional ADA feature, equipped with SPK1.07UNVLADA firmware. The information in this manual is subject to change without notification. For information not included in this manual, please call or write:... -
Page 5: Programming
By entering a selected number of 0-9 into each of the ten digits, the phone is customized for the particular installation. Enter #00, followed by a series of ten digits, as selected from the next page. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Continued
Digit 4- Always 0. Digit 5- Always 0. Digit 6- ADA deactivated. Digit 7- Always 0. Digit 8- Do not dial PBX access number. Digit 9- Always 0. Digit 10- 250 ms wink detect. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
When the call is complete, press the “CALL & HANGUP” button to hang up the phone. The call will be terminated and the LED will go out. NOTE: If the telephone is being used to make emergency calls, CEECO cannot assume responsibility for the called party’s response. -
Page 8: Recommended Tools And Test Equipment
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Testing
The LED illuminates green (optional ADA feature) after a maximum of 4 seconds. Action: Finish the conversation. Press the “CALL & HANGUP” button to hang up the phone. Reaction: The LED goes out. The call is terminated. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Specifications
(including door). Mounting: 4 holes spaced 8" x 5 7/8" x 13/32" Weight: 12 pounds Memory retention: Non-volatile memory retention UL listed no.: 60F5 FCC registration: BW8USA-73021-MT-E Ringer equivalence: 0.4a Type jack: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
PART NUMBER DESCRIPTION 331-006 Outer cover security screw. 301-018 Modular line cord. 301-054-UL Modular Connector (RJ11C). 700-008 Keypad Cable. 660-000 CEECO SPK PC board. 705-110 Connectorized Keypad. 6020 Momentary Panel Switch. 14024 Speaker. 14067 Microphone. 331-005 Weatherproof housing (WPP) 500-091 Stainless Steel Panel. -
Page 12: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 9.0. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Repair And Return Information
11.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 11.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 14: Warranty Policy
This warranty is limited to the value of material only. CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation. -
Page 15: Diagram
POSITION BEFORE GOING OFF HOOK When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
