Service Manual
SERVICE MANUAL
EQUIPPED WITH SPK1.07 UNVLr1 FIRMWARE
Communication Equipment
& Engineering Company
FOR
MODEL SSP-571-D
(FORMERLY MODEL SSP-579-D)

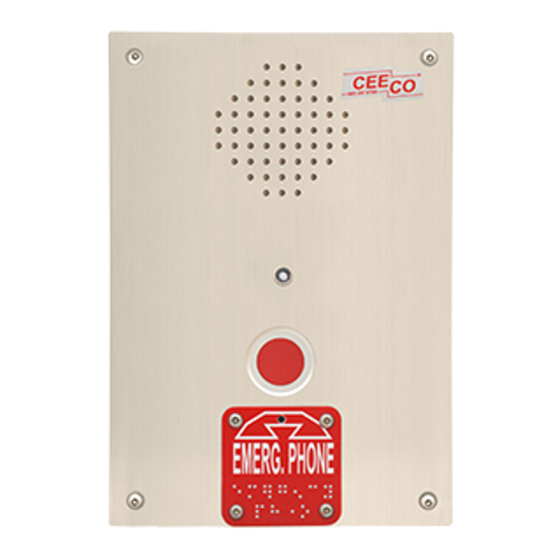

HANDS FREE PANEL TELEPHONE
WITH OPTIONAL ADA FEATURE
SSP-571-D (FORMERLY 579)-ADA-SPK1.07UNVLr1-ISSUE4.0
Serving the Telephone Industry Since 1930
519 W South Park Street
Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006
Advertisement
Table of Contents
Related Manuals for CEECO SSP-571-D
Summary of Contents for CEECO SSP-571-D
- Page 1 SSP-571-D (FORMERLY 579)-ADA-SPK1.07UNVLr1-ISSUE4.0 SERVICE MANUAL MODEL SSP-571-D (FORMERLY MODEL SSP-579-D) HANDS FREE PANEL TELEPHONE EQUIPPED WITH SPK1.07 UNVLr1 FIRMWARE WITH OPTIONAL ADA FEATURE Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSP-571-D-ADA, EQUIPPED WITH SPK1.07UNVLr1 FIRMWARE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
RECOMMENDED TOOLS AND TEST EQUIPMENT ........8 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..... 8 SPECIFICATIONS....................10 PARTS LIST ......................11 FCC NOTICE......................12 10.0 REPAIR AND RETURN INFORMATION ............13 11.0 WARRANTY POLICY ..................14 12.0 DIAGRAM......................15 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
The CEECO Model SSP-571-D Hands free telephone is a sturdy, vandal resistant, Stainless Steel Panel Speakerphone. Instead of a hookswitch and handset, the SSP-571-D has a Press to start/Press to stop (CALL) button for the initiation and termination of phone calls. -
Page 5: Programming
Connect the keypad to the ribbon cable, by way of the two connectors. Move the mini-jumpers (located on the CEECO-SPK Printed Circuit Board) to the "ON" position, as depicted on the last page of this manual. -
Page 6: Always 0 For This Model Digit
• Be sure to record your selections below for future reference: #00 0 __ __ 0 0 __ 0 __ 0 __ 1 2 3 4 5 6 7 8 9 10 EXAMPLE: CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
9, pause approximately one (1) second, and automatically dial the auto-dial number, whenever the CALL button is pressed. #18 ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ PROGRAMMING CONTINUED… CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Testing/Operation
RECOMMENDED TOOLS AND TEST EQUIPMENT DTMF Test Set Volt/Ohm Meter 3/8" Nut Driver 5/16" Nut Driver Flat Blade Screw Driver Security Tool CEECO P/N 301-064 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Network Interface
Separate the cover assembly from the housing. Run the inside station wire through the housing and terminate on to the RJ11C modular jack, as depicted on the following page. The CEECO- provided modular jack must be used, as it contains required over-voltage protection. -
Page 10: Specifications
Temperature 0oC to 50oC Humidity 20%-90% non-condensating. PROGRAMMING: Via DTMF keypad. DIMENSIONS: 6.8" W x 9.76" H x 2.75" D MEMORY RETENTION: Non-volatile memory retention WEIGHT: 9 Pounds TYPE JACK: RJ11c UL LISTED NO.: 6OF5 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
OUTER COVER SECURITY SCREW 301-018 MODULAR LINE CORD 379-300 FACE PLATE 301-054 MODULAR CONNECTOR (RJ11C) 379-200 SERVICE MANUAL 700-008 KEYPAD CABLE 660-000 CEECO SPK BOARD 705-110 CONNECTORIZED KEYPAD 6020-B MOMENTARY PANEL SWITCH 14123 SPEAKER 12017 RINGER ACCESSORIES 301-064 SECURITY TOOL... -
Page 12: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 7.0. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Repair And Return Information
10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer's list price. -
Page 14: Warranty Policy
11.0 WARRANTY POLICY 11.1 GENERAL CEECO products are guaranteed to be free of defects in material and workmanship for a period of 365 days from the date of original purchase. CEECO's obligation under this warranty is limited to repair or replacement of any part found to be defective by CEECO. -
Page 15: Diagram
BEFORE going off- hook. When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
