SERVICE MANUAL
HANDS FREE ELEVATOR PHONE
EQUIPPED WITH LOW-POWER SPEAKER BOARD
Communication Equipment
& Engineering Company
FOR
MODEL SSP-550-D
(FORMERLY SSP-510-D)
AND ATD11 BOARD
SSP-550-D-(SSP-510-D)-LPSPKRPCB-ATD11-ISSUE4.0
Serving the Telephone Industry Since 1930
519 W South Park Street
Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006
Advertisement
Related Manuals for CEECO SSP-550-D
Summary of Contents for CEECO SSP-550-D
- Page 1 SSP-550-D-(SSP-510-D)-LPSPKRPCB-ATD11-ISSUE4.0 SERVICE MANUAL MODEL SSP-550-D (FORMERLY SSP-510-D) HANDS FREE ELEVATOR PHONE EQUIPPED WITH LOW-POWER SPEAKER BOARD AND ATD11 BOARD Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSP-550-D EQUIPPED WITH LOW- POWER SPEAKER BOARD & ATD11 BOARD SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
5.0 RECOMMENDED TOOLS AND TEST EQUIPMENT ........8 6.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....... 9 7.0 SPECIFICATIONS....................10 8.0 PARTS LIST ......................11 9.0 REPAIR AND RETURN INFORMATION............13 10.0 WARRANTY POLICY ..................14 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction

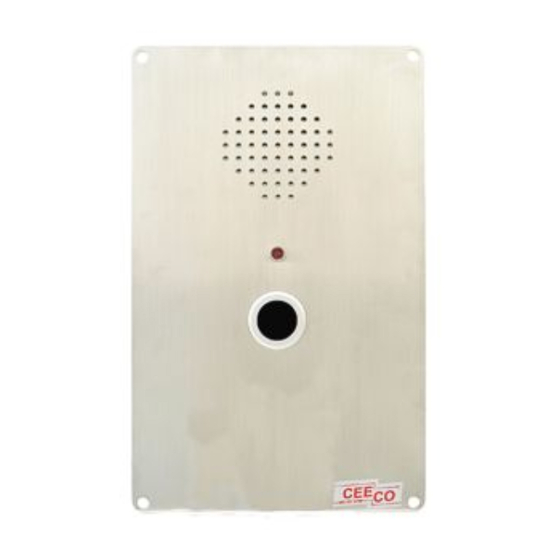

GENERAL The CEECO Model 550-D Hands free telephone is a sturdy, vandal resistant, Stainless steel panel Speakerphone. Instead of a hookswitch and handset, the 550-D has a Press to start/Press to stop button for initiation and termination of phone calls. -
Page 5: Programming
“11”. Be sure this mini-jumper is placed closest to the “11”, bridging the middle and far left copper pins. The “J3” mini-jumper should always be in this position, regardless of the number you are programming. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Continued
A “3” appears in small white print just right of this position. Placing the jumper there will cause the phone to delay 3 to 4 seconds CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
Below it are “5”, “3” and “1” also in small white print. Place the jumper so that it bridges the two copper pins corresponding with your selection of 1, 3, or 5 minutes. Programming is now complete and the telephone is ready for testing/operation. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Testing/Operation
RECOMMENDED TOOLS AND TEST EQUIPMENT Volt/Ohm Meter 1/4" Nut Driver 3/8" Nut Driver Security Tool, CEECO part number 301-037 Flat Blade Screw Driver DTMF Test Set CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Installation Notes And Assembly Instructions
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Specifications
5"w X 7"h X 2 1/2" MOUNTING : Vertical Rough-in Mounting Box MEMORY RETENTION : Non-volatile memory control WEIGHT : 4 Pounds FCC REGISTRATION NO.: BW-88T7-68447-KX-T UL LISTED NO.: 60F5 RINGER EQUIVALENCY: 0.8A TYPE JACK : RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
OUTER COVER SECURITY SCREW 301-018 MODULAR LINE CORD 510-000 FACE PLATE 301-054 MODULAR CONNECTOR (RJ11C) 510-200 SERVICE MANUAL 660-100 CEECO SPK BOARD 510-xxx MOMENTARY PANEL SWITCH 14047 SPEAKER ACCESSORIES : 301-037 SECURITY TOOL CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 12: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 7.0 The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Repair And Return Information
10.3 NON-WARRANTY REPAIR: CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs for both directions. 10.4 RETURN FOR CREDIT: Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer's list price. -
Page 14: Warranty Policy
PRINTED CIRCUIT BOARDS Printed circuit boards should not be field repaired. If a unit is found to be faulty, replace it with another unit and return the faulty unit to CEECO for repair. Modifications by anyone other than CEECO will void the warranty.
