Mounting Bracket
Fix Plate 1

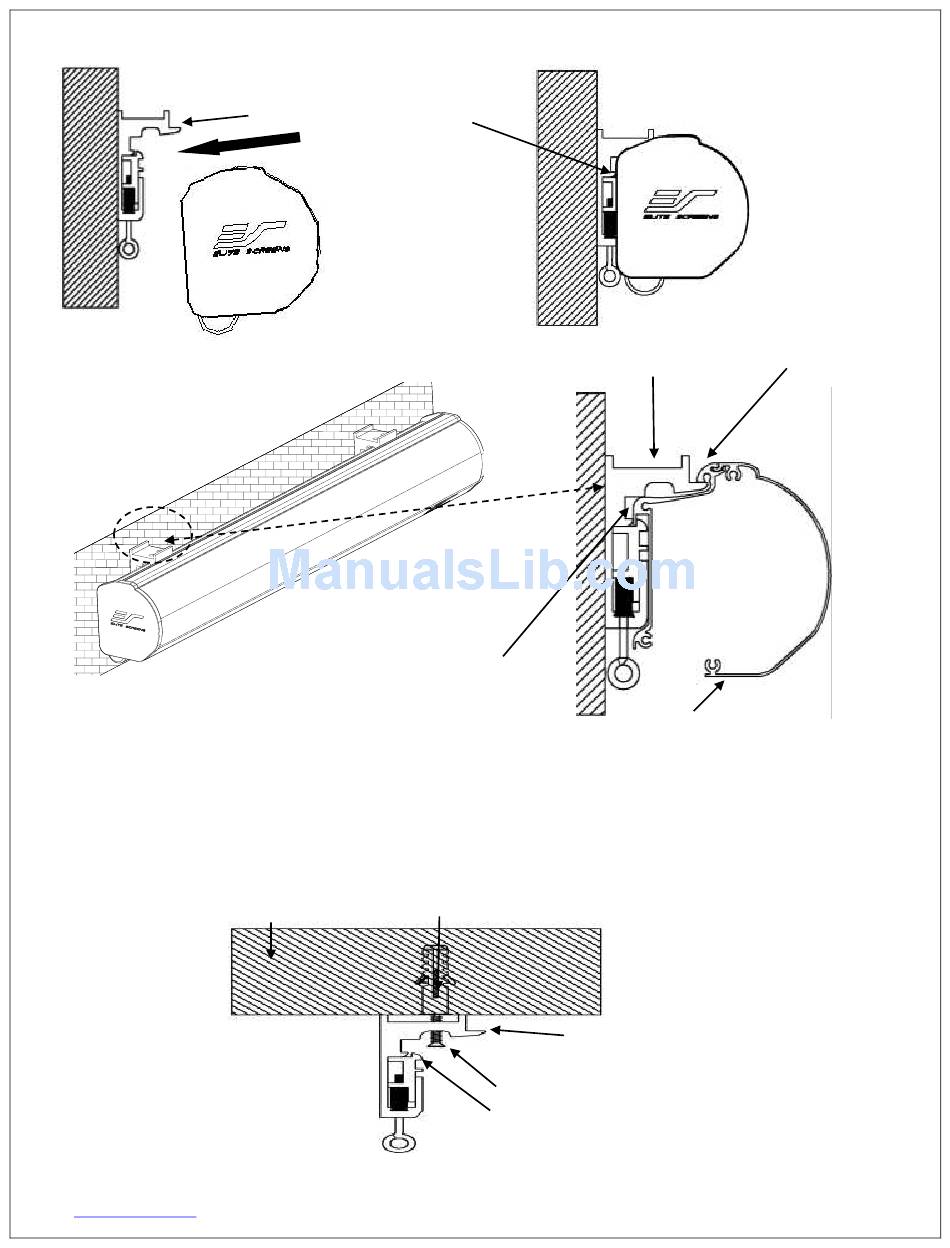

Flush Mount to the Ceiling
1. Mark the location of where the screen is to be installed, drill your holes, and insert the M10
Anchors (c).
2. Install the Mounting Brackets (a) to the ceiling and secure with the M4x50 Screws (b).
Ceiling
Rev.042613-JA
www.elitescreens.com
Mounting Bracket
Fix Plate 2
Case Slot 2
M10 Anchor
M4x50 Screw
Mounting Bracket
Fix Plate 2
