Summary of Contents for Elite Screens Spectrum

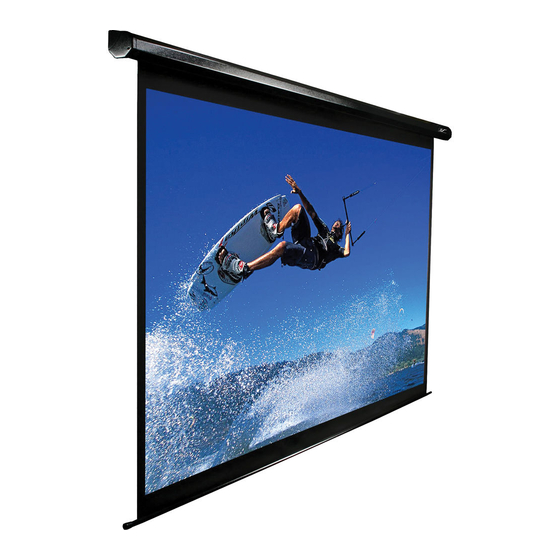

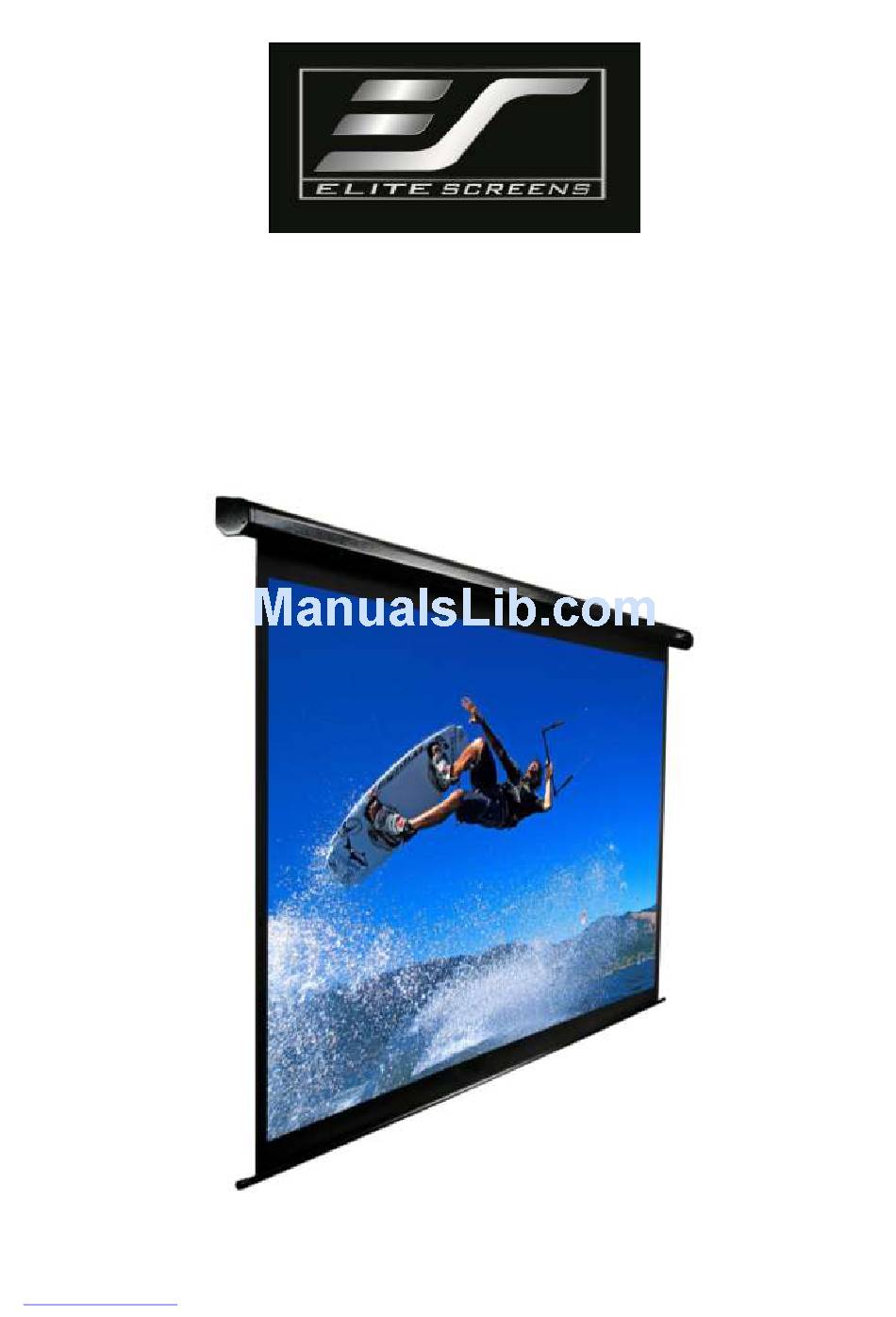

- Page 1 Spectrum/VMAX2 Series Electric/Motorized Projection Screen User Guide Rev. 082510-JA www.elitescreens.com info@elitescreens.com...
- Page 2 Important safety and warning precautions 1. Be sure to read this user guide before use and follow the procedures below. Please retain this manual for future reference. To avoid any damage, do not use in conjunction with any accessories not recommended by the manufacturer.
- Page 3 Reorient or relocate the receiving antenna of the device which may be causing interference Increase the separation between the screen and the device’s receiver Connect the equipment into a different power outlet than the device Accessories for Spectrum and VM AX2 IR remote RF remote...
-
Page 4: Pre-Installation
PRE INSTALLATION 1. Carefully unpack the screen 2. Always handle the screen in a leveled position on a clean surface. 3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign particles such as dust, sawdust, and/or liquids. 1. - Page 5 Fig. 1 Optional installation method using a chain to hang the screen from the ceiling Fig. 2 Rev. 082510-JA www.elitescreens.com info@elitescreens.com...
- Page 6 12-V Trigger The VMAX2 and Spectrum Screens have the capability of using a 12-Volt Trigger. RJ-45 input location To Projector Video Projection Interface Red DC12V 12-Volt Trigger Assembly Green 0V D i a g r a m Wa l l-mounted 3-way-switch 1.
- Page 7 Please contact the manufacturer of your remote to inquire about your remotes ability to function with ours. If they have not evaluated our remote control then the following list of Binary codes will be used for most remote setups. For Spectrum, VMAX2 (Plus), Home2(3) and Tension2(3) Series Up: 1111 0000 0001 Stop: 1111 0000 0010 Down: 1111 0000 0100 6.
-
Page 8: Warranty Policy
*(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair. - Page 9 +886-(02)2747-8979 America: Elite Screens Inc 16410 Manning Way, Cerritos, CA 90703 USA Tel: 877-511-1211 Fax: 562-483-8498 info@elitescreens.com www.elitescreens.com Europe: Elite Screens Europe GmbH Lübecker Straße,122087 Hamburg, Germany Tel: +49-40-30392494 Fax: +49-40-49219200 info@elitescreens.eu www.elitescreens.eu Asia: Elite Screens China Ltd.
