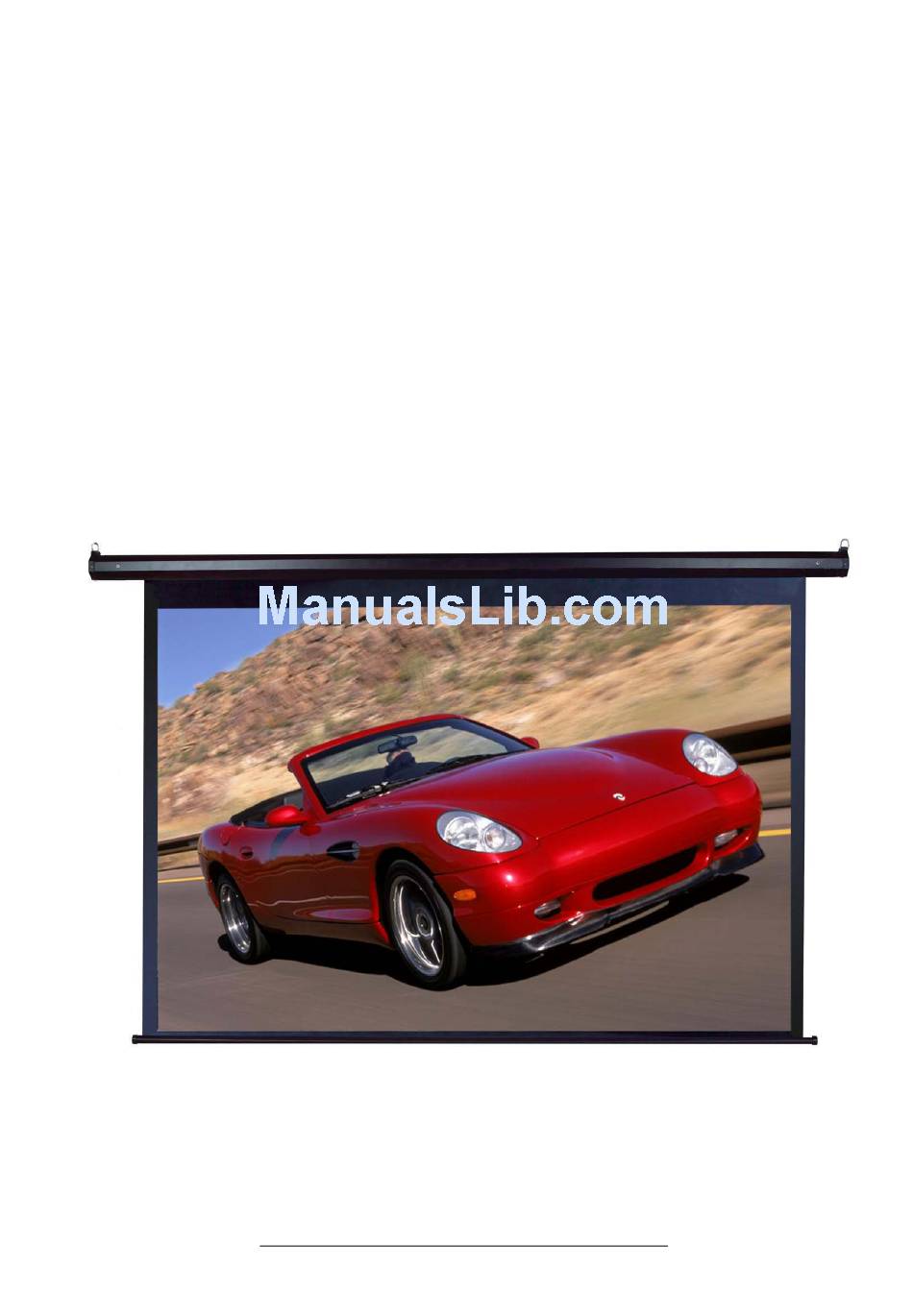

- Page 1 SCREENS Elite SCREENS Elite Elite Spectrum/Vmax2 Series Ver. 1.1 Users Guide Elite Screens Inc. eliteinfo@elitescreens.com / www.elitescreens.com Rev. 1.1...
-
Page 2: Important Safety Instructions
To avoid suffering an electric shock, do no t attempt to disassemble t his appliance by yourself. In the event of technical trouble, please contact Elite Screens’ service dept. for help with any technical troubleshooting or warranty claim. - Page 3 SCREENS Elite Select the location for your screen so that it has access to a good power source as well as a functioning angle and throw distance for your projector For the best installation results, it is ideal to secure your screen into the studs of your house's internal wooden framework.
- Page 4 1. You can also hang the screen from the ceiling by using a chain with s-hooks through the end cap D-rings (not included) suspended by the two loops located on each end of the case as shown on (Fig. 2). Elite Screens Inc. eliteinfo@elitescreens.com / www.elitescreens.com ③...
- Page 5 SCREENS Elite VMAX2/Spectrum optional accessories; The L-Brackets for Wall & Ceiling Installation and 12-Volt Trigger for Synchronized Projector-Screen Operation L-Brackets Wood/Dry Wall installation: Use wood screws (B) or use hollow wall anchors (E) provided with the installation kit as shown on Fig.1...
- Page 6 SCREENS Elite 12-V Trigger The VMAX2 and Spectrum Screens have the capability of using a 12-Volt Trigger. However, this accessory is standard only for the VMAX2, optional for Spectrum models. To Projector Orange DC12V Video Projection Interface Green 12-Volt Trigger Assembly...
- Page 7 220volt outlets are for industrial tools and machinery. 5. Q: What is the gain on the matte white screen material? A: The matte white material has a gain of 1.1. Note: For more Update FAQ, please visit www.elitescreens.com Elite Screens Inc. eliteinfo@elitescreens.com / www.elitescreens.com ⑥...
- Page 8 *(see exceptions below) after the DOA unit is received and confirmed defective. Elite Screens will send out a *new unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair.
- Page 9 SCREENS Elite Two ways to register your warranty with Elite Screens Inc. A. On Line (Faster a nd Easier) www.elitescreens. com/register.html B. Fil l out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: _ ___ Address: City/State/Zip...
