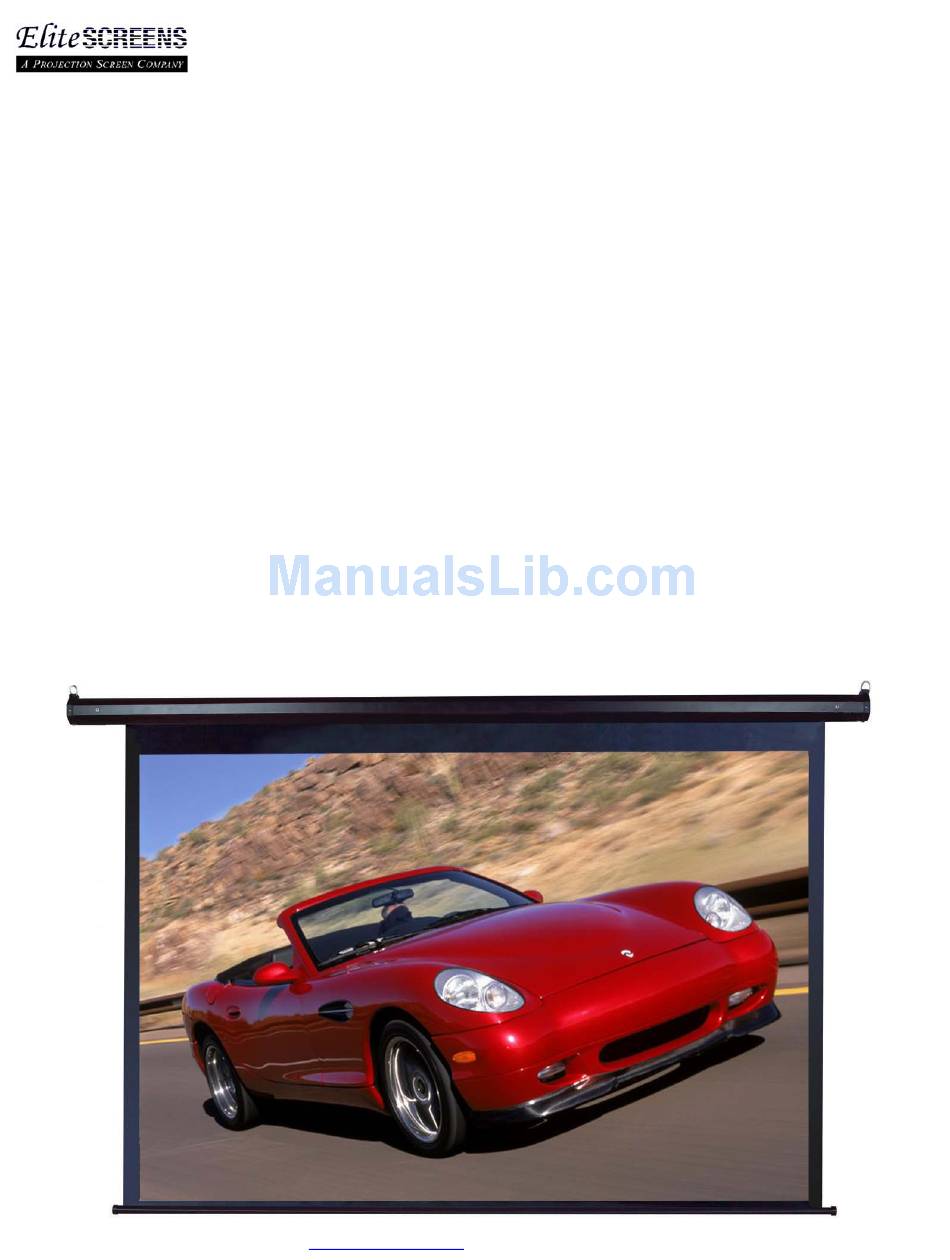

SCREENS
Elite
Spectrum Series / Vmax2 Series
Users Guide
www.elitescreens.com
/ eliteinfo@elitescreens.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens Spectrum Series
Summary of Contents for Elite Screens Spectrum Series
- Page 1 SCREENS Elite Spectrum Series / Vmax2 Series Users Guide www.elitescreens.com / eliteinfo@elitescreens.com...
- Page 2 2. Always disconnect the power when replacing any accessories in order to avoid risks of a short circuit or an electric shock. There are no user serviceable accessories in the device. Only an authorized Elite Screens technician is permitted to open the product casing and work on the internal parts. Failure to do so will void the warranty.
-
Page 3: Pre-Installation
To avoid suffering an electric shock, do not attempt to disassemble this appliance by yourself. In the event of technical trouble, please contact Elite Screens’ service dept. for help with any technical troubleshooting or warranty claim. Please disconnect the power supply when the screen will not be in use for a prolonged period of time. - Page 4 Select the location for your screen so that it has access to a good power source as well as a functioning angle and throw distance for your projector For the best installation results, it is ideal to secure your screen into the studs of your house's internal wooden framework.
- Page 5 1. Using a tape measure, mark the keyholes that are located at the back of the screen's case end cap. 2. After marking the area and predrilled hole, insert the screw and leave about 1/8” of an inch from the wall to mount the screen.
- Page 6 VMAX2/Spectrum optional accessories; The L-Brackets for Wall & Ceiling Installation and 12-Volt Trigger for Synchronized Projector-Screen Operation L-Brackets Wood/Dry Wall installation: Use wood screws (B) Or use hollow wall anchors (E) provided with the installation kit as shown on Fig.1 Top view of L-bracket Fig.
- Page 7 The VMAX2 and Spectrum Screens have the capability of using a 12-Volt Trigger. This accessory is optional for Spectrum Screens and can be purchased separately. Connect ion pins in side of case To Projector Orange DC12V Video Projection Interface Wall-mounted Receiver 12-Volt Trigger Assembly (Extension Sensor –...
- Page 8 Note: If the electric screen does not move, please check the following: 1. Check the power supply and fuse first. The screen will not move without power. 2. Make sure the power cord is plugged to the power outlet. 3. Check all cable connections to see any are disconnected. 4.
- Page 9 *(see exceptions below) after the DOA unit is received and confirmed defective. Elite Screens will send out a *new unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair.
- Page 10 Two ways to register your warranty with Elite Screens Inc. A. On Line (Faster and Easier) www.elitescreens.com/register.html B. Fill out & Fax to (562) 483-8498, Attn: Customer Service Dept. *Your Name: Address: City/State/Zip *Email Address: *Phone: *Screen Model: *Serial Number:...
- Page 11 Ver 4.0 Elite Screens - Spectrum / VMAX2 Series Dimension Table Unit: Inches Screen Material to Screen Material to Bottom Wall/Case Back（ VMAX2 Model Case L (A) Hanging L（A1） Screen W（A2） View W（A3） Bottom Edge（B3） View H（B2） Screen TTL H（B）...
- Page 12 ● Wall Box ● Wall Box ● ● ● Receiver Receiver Receiver Receiver Elite Screens IR Universal Learning Remote Control ( Multi-Media Control ● ● Optional Optional Optional Optional Optional Optional Optional for Screen, Projector, TV, DVD…. Etc.) Built-In 12V Trigger ( RJ 45 Connection), synchronizes screen drop/rise...
