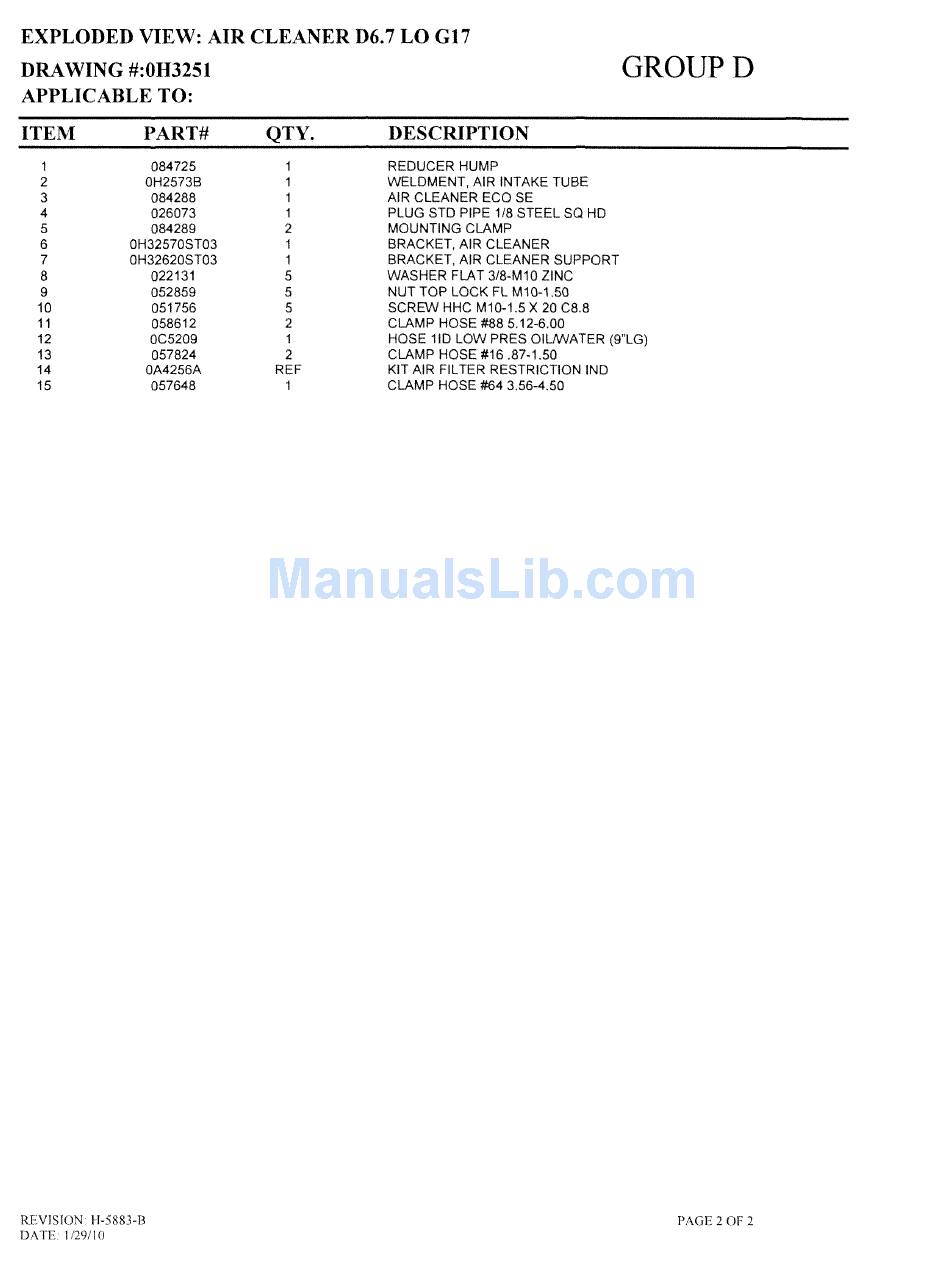

Generac Power Systems 13694330200 Owner's Manual page 74

EXPLODED VIEW: AIR CLEANER D6.7 LO G17
DRAWING #:OH3251
APPLICABLE TO:
GROUPD
ITEM PART#
QTY. DESCRIPTION
1 084725 1 REDUCER HUMP
2 OH2573B 1 WELDMENT, AIR INTAKE TUBE
3 084288 1 AIR CLEANER ECO SE
4
026073
1 PLUG STD PIPE 1/8 STEEL
sa
HD
5 084289 2 MOUNTING CLAMP
6 OH32570ST03 1 BRACKET, AIR CLEANER
7 OH32620ST03 1 BRACKET, AIR CLEANER SUPPORT
8
022131
5
WASHER FLAT
3/8-M10
ZINC
9 052859 5 NUT TOP LOCK FL M10-1.50
10 051756 5 SCREW HHC M10-1.5 X 20 C8.8
11 058612 2 CLAMP HOSE #88 5.12-6.00
12 OC5209 1 HOSE 110 LOW PRES OILlWATER (9"LG)
13 057824 2 CLAMP HOSE #16 .87-1.50
14 0A4256A REF KIT AIR FILTER RESTRICTION IND
15 057648 1 CLAMP HOSE #64 3.56-4.50
REVISION H-5883-B
DATE 1/29110
PAGE 2 OF 2
