General Information

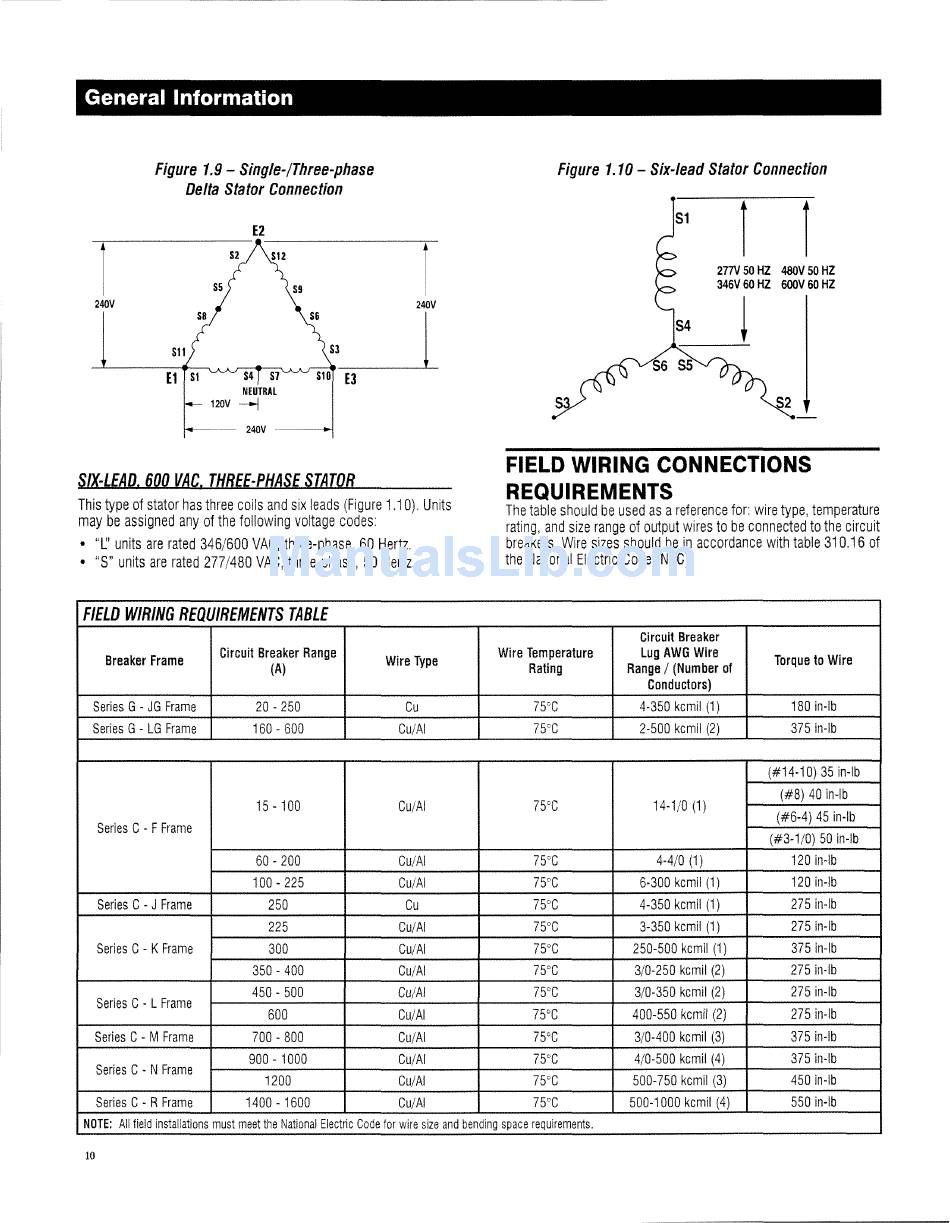

Figure 1.9 - Single-/Three-phase
Delta Stator Connection
Figure 1.10 - Six-lead Stator Connection
240V
SII
E2
240V
S6
I
S3~
- - 240V - - - - J
51
1 1
277V 50HZ 480V 50 HZ
346V60HZ 600V 60 HZ
!
S2
SIX-LEAD. 600 VAG, THREE-PHASE STATOR
This type of stator has three coils and six leads (Figure 1.10). Units
may be assigned any of the following voltage codes:
• "1.:'
units are rated 346/600 VAG, three-phase, 60 Hertz.
• "5" units are rated 277/480 VAG, three-phase, 50 Hertz.
FIELD WIRING CONNECTIONS
REQUIREMENTS
The table should be used as a reference for: wire type, temperature
rating, and size range of output wires to be connected to the circuit
breakers. Wire sizes should be in accordance with table 310.16 of
the National Electric Gode (NEG).
FIELD WIRING REQUIREMENTS TABLE
Circuit Breaker
Breaker Frame
Gircuit Breaker Range
Wire Type
Wire Temperature Lug AWG Wire
Torque to Wire
(A) Rating Range / (Number of
Gonductors)
Series G- JG Frame 20 - 250 Cu 75
c
C 4-350 kemil (1) 180 in-Ib
Series G- LG Frame 160 - 600 Cu/AI 75
C
C 2-500 kemil (2) 3751n-lb
(#14-10) 35 In-Ib
15 - 100
Cu/AI
75
c
C 14-1/0 (1)
(#8) 40 In-Ib
Series C- FFrame
(#6-4) 45 in-Ib
(#3-1/0) 50 in-Ib
60 - 200
CulAl
75
c
C 4-4/0 (1)
120 in-Ib
100 - 225 Cu/AI 75°C
6-300 kemll (1) 120 in-Ib
Series C- J Frame 250 Cu 75°C 4-350 kemll (1)
275 in-Ib
225
CulAl
75°C 3-350 kemll (1)
275 in-Ib
Series C- K Frame 300
CulAl
75 D C 250-500 kemll (1)
375 In-Ib
350 - 400 Cu/AI 75 D C
3/0-250 kemil (2) 2751n-lb
450 - 500
Cu/AI
75°C 3/0-350 kemil (2) 275 in-Ib
Series C- L Frame
600 Cu/AI 75°C
400-550 kemll (2) 275 in-Ib
Series C- M Frame
700 - 800 Cu/AI WC
3/0-400 kemll (3) 3751n-lb
900 - 1000 Cu/AI 75°C 4/0-500 kemll (4)
375 In-Ib
Series C- N Frame
1200 Cu/AI WC
500-750 kemil (3) 450 In-Ib
Series C- R Frame
1400 - 1600 Cu/AI 75°C
500-1000 kemil (4) 550 in-Ib
NOTE: All field installations must meet the National Electric Code for wire size and bending space requirements.
10
