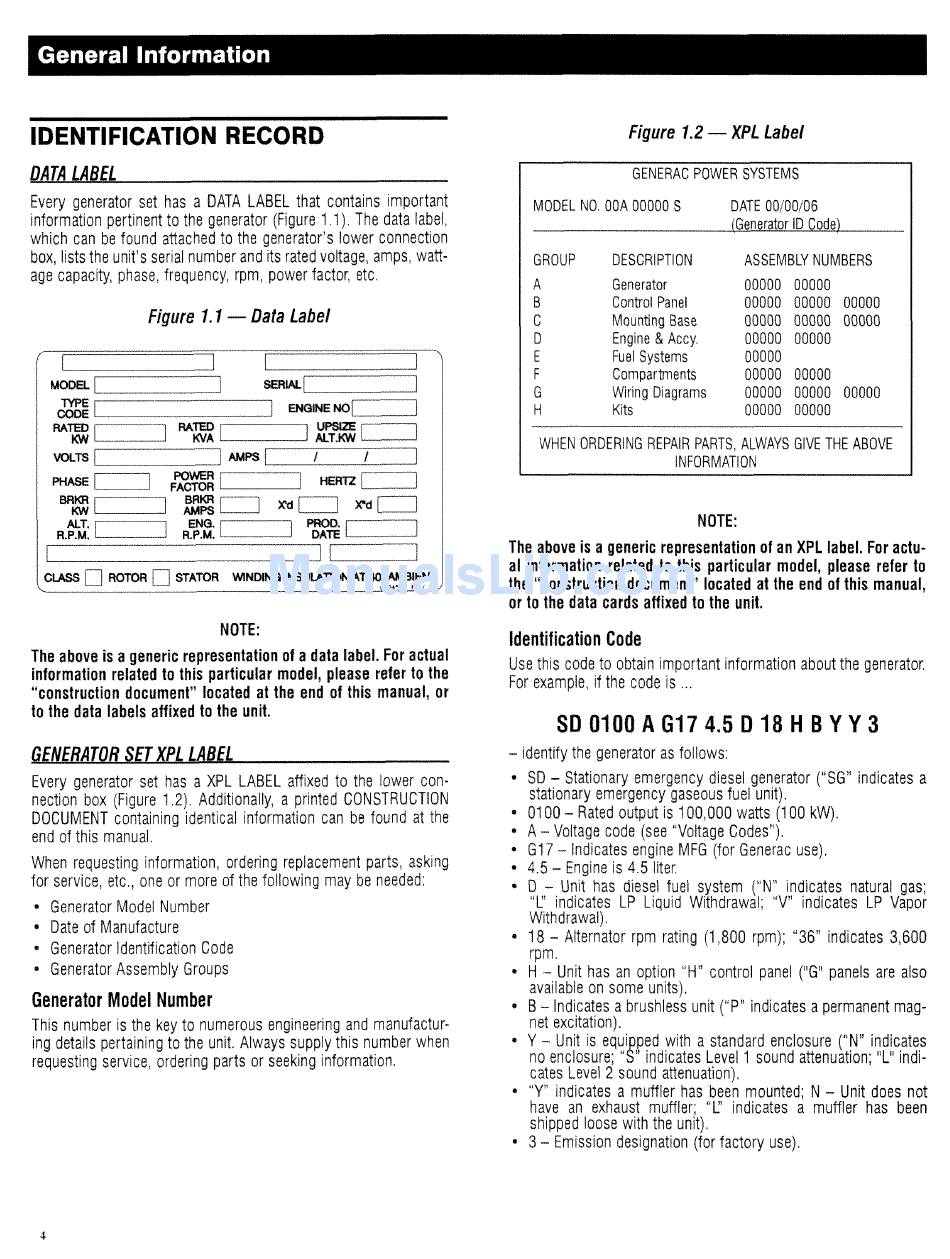

General Information
IDENTIFICATION RECORD
DATA LABEL
Figure
1.2 -
XPL Label
GENERAC POWER SYSTEMS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE ABOVE
INFORMATION
NOTE:
The above is a generic representation of an XPllabel. For actu-
al information related to this particular model, please refer to
the "construction document" located at the end of this manual,
or to the data cards affixed to the unit.
Every generator set has a DATA LABEL that contains important
information pertinent to the generator (Figure 1,1), The data label,
which can be found attached to the generator's lower connection
box, lists the unit's serial number and its rated voltage, amps, watt-
age capacity, phase, frequency, rpm, power factor, etc
Figure 1.1 - Data Label
MODEL NO OOA 00000 S
GROUP DESCRIPTION
A Generator
B
Control Panel
C Mounting Base
D
Engine
&
Accy,
E Fuel Systems
F Compartments
G Wiring Diagrams
H
Kits
DATE 00/00/05
ASSEMBLY NUMBERS
00000 00000
00000 00000 00000
00000 00000 00000
00000 00000
00000
00000 00000
00000 00000 00000
00000 00000
NOTE:
The above is a generic representation of a data label. For actual
information related to this particular model, please refer to the
"construction document" located at the end of this manual, or
to the data labels affixed to the unit.
GENERATOR SET XPL LABEL
Every generator set has a XPL LABEL affixed to the lower con-
nection box (Figure 1,2), Additionally, a printed CONSTRUCTION
DOCUMENT containing identical information can be found at the
end of this manual.
When requesting information, ordering replacement parts, asking
for service, etc" one or more of the following may be needed:
• Generator Model Number
• Date of Manufacture
• Generator Identification Code
• Generator Assembly Groups
Generator Model Number
This number is the key to numerous engineering and manufactur-
ing details pertaining to the unit Always supply this number when
requesting service, ordering parts or seeking information,
4
Identification Code
Use this code to obtain important information about the generator,
For example, if the code is '"
SO 0100 A617 4.5 0 18 H BY Y 3
- identify the generator as follows:
• SO - Stationary emergency diesel generator ("58" indicates a
stationary emergency gaseous fuel unit),
• 0100 - Rated output is 100,000 watts (100 kW),
• A- Voltage code (see "Voltage Codes"),
• G17 -Indicates engine MFG (for Generac use).
• 4,5 - Engine is 4,5 liter.
• 0 - Unit has diesel fuel system ("N" indicates natural gas;
'T'
indicates LP Liquid Withdrawal;
"v"
indicates LP Vapor
Withdrawal),
• 18 - Alternator rpm rating (1,800 rpm); "36" indicates 3,600
rpm.
• H - Unit has an option "H" control panel ("G" panels are also
available on some units).
• B- Indicates a brushless unit ("P" indicates a permanent mag-
net excitation).
• Y - Unit is equipped with a standard enclosure ("N" indicates
no enclosure; "5' indicates Level 1 sound attenuation; "L" indi-
cates Level 2 sound attenuation),
• "Y" indicates a muffler has been mounted; N - Unit does not
have an exhaust muffler; "L:' indicates a muffler has been
shipped loose with the unit),
• 3 - Emission designation (for factory use),
