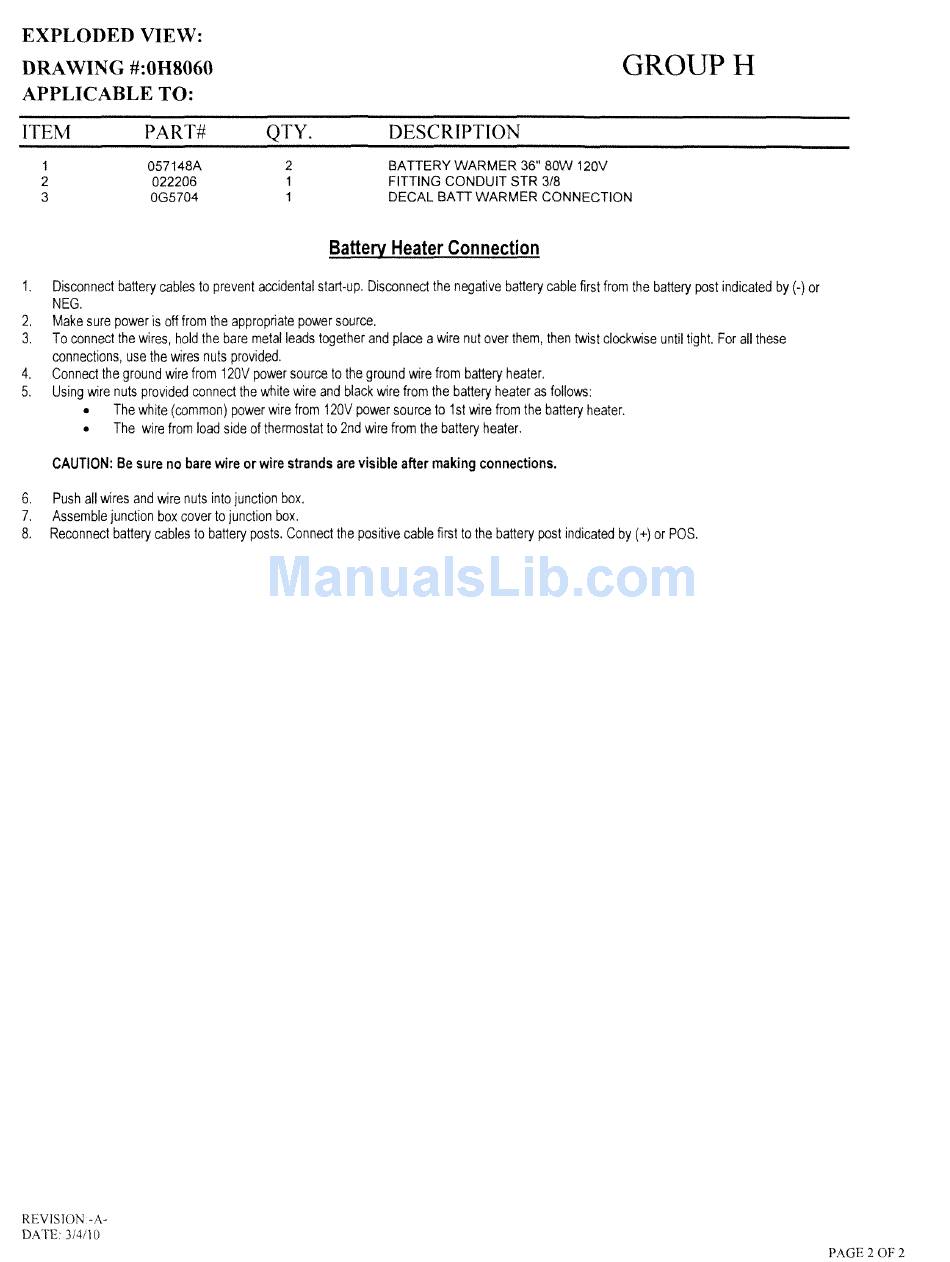

Generac Power Systems 13694330200 Owner's Manual page 114

EXPLODED VIEW:
DRAWING #:OH8060
APPLICABLE TO:
GROUPH
ITEM
1
2
3
PART#
057148A
022206
OG5704
QTY.
2
1
1
DESCRIPTION
BATIERY WARMER 36" 80W 120V
FITIING CONDUIT STR 3/8
DECAL BATIWARMER CONNECTION
Battery Heater Connection
1. Disconnect battery cables to prevent accidental start-up. Disconnect the negative battery cable first from the battery post indicated by (-) or
NEG.
2. Make sure power is off from the appropriate power source.
3. To connect the wires, hold the bare metal leads together and place a wire nut over them, then twist clockwise until tight. For all these
connections, use the wires nuts provided.
4. Connect the ground wire from 120V power source to the ground wire from battery heater.
5. Using wire nuts provided connect the white wire and black wire from the battery heater as follows:
• The white (common) power wire from 120V power source to 1st wire from the battery heater.
• The wire from load side of themnostat to 2nd wire from the battery heater.
CAUTION: Be sure no bare wire or wire strands are visible after making connections.
6. Push all wires and wire nuts into junction box.
7. Assemble junction box cover to junction box.
8. Reconnect battery cables to battery posts. Connect the positive cable first to the battery post indicated by (+) or POS.
REVISION-A-
DATE 3/4/10
PAGE 2 OF 2
