Generac Power Systems 13694330200 Owner's Manual page 69

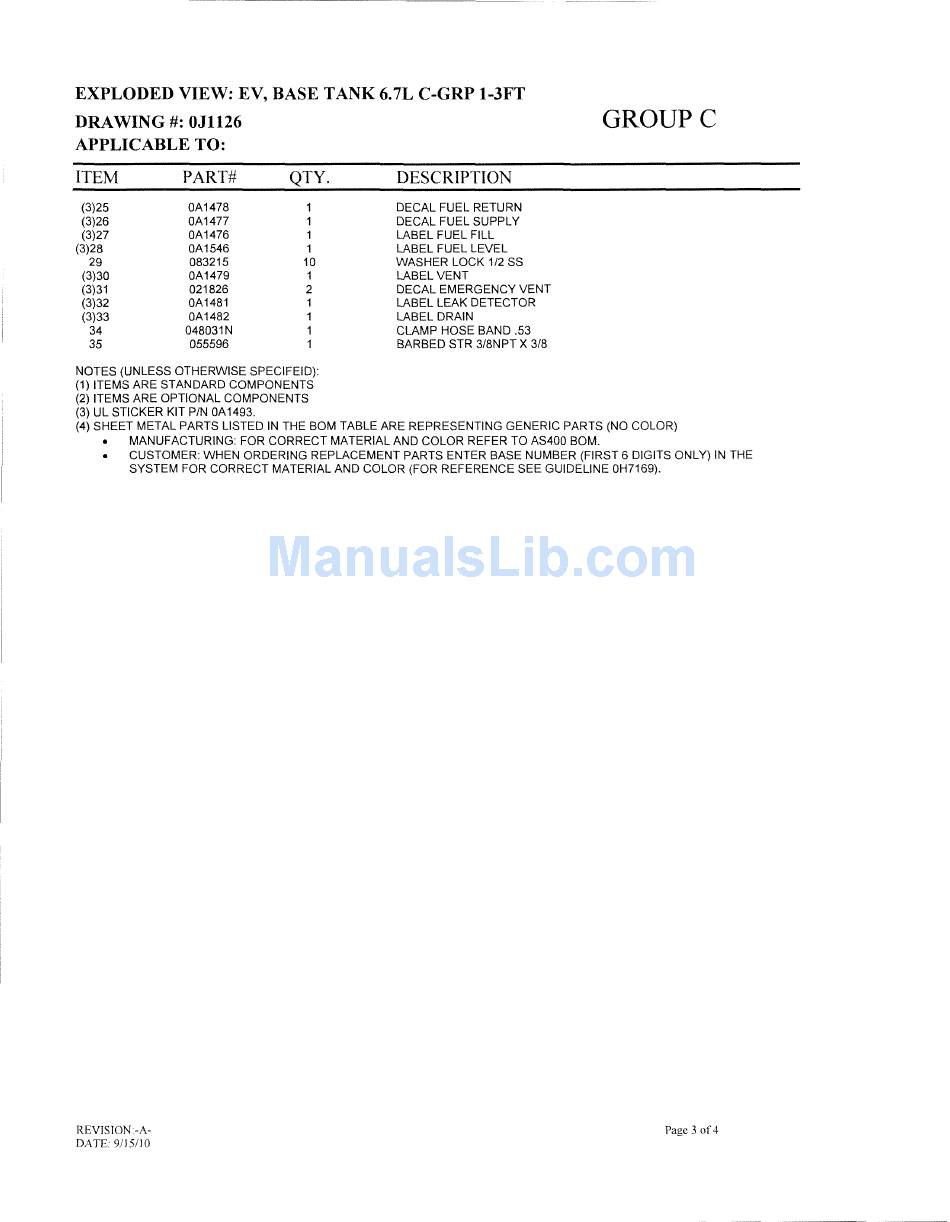

EXPLODED VIEW: EV, BASE TANK 6.7L C-GRP 1-3FT
DRAWING #: OJ1126
APPLICABLE TO:
ITEM PART# QTY. DESCRIPTION
(3)25 OA1478 1 DECAL FUEL RETURN
(3)26 OA1477 1 DECAL FUEL SUPPLY
(3)27
OA1476
1 LABEL FUEL FILL
(3)28 OA1546
1
LABEL FUEL LEVEL
29 083215 10 WASHER LOCK 1/2 SS
(3)30
OA1479 1 LABEL VENT
(3)31 021826 2 DECAL EMERGENCY VENT
(3)32
OA1481 1 LABEL LEAK DETECTOR
(3)33
OA1482 1 LABEL DRAIN
34 048031N 1 CLAMP HOSE BAND .53
35 055596
1
BARBED STR 3/8NPT X 3/8
GROUpe
NOTES (UNLESS OTHERWISE SPECIFEID):
(1) ITEMS ARE STANDARD COMPONENTS
(2) ITEMS ARE OPTIONAL COMPONENTS
(3) UL STICKER KIT PIN OA1493.
(4) SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)
MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM.
CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE
SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE OH7169).
REVISION-A-
DATE 9115/10
Page 3 of4
