UG-012

HARDWARE CONFIGURATION

To configure the hardware, follow these steps:
1. Plug the USB A to Mini-B cable into the PC, if the cable is
not already connected.
2. Connect the ISEB to the USB cable.
If prompted to install the device, see the Software
Configuration section for details on how to install and
select the correct driver.
3. Connect the ISEB to the ADXL346 satellite using the
18-inch, 20-pin ribbon cable. This cable is keyed to prevent
inserting it backwards and causing damage to the system.
4. Connect the ADXL346 satellite to the opposite end of the
ribbon cable.

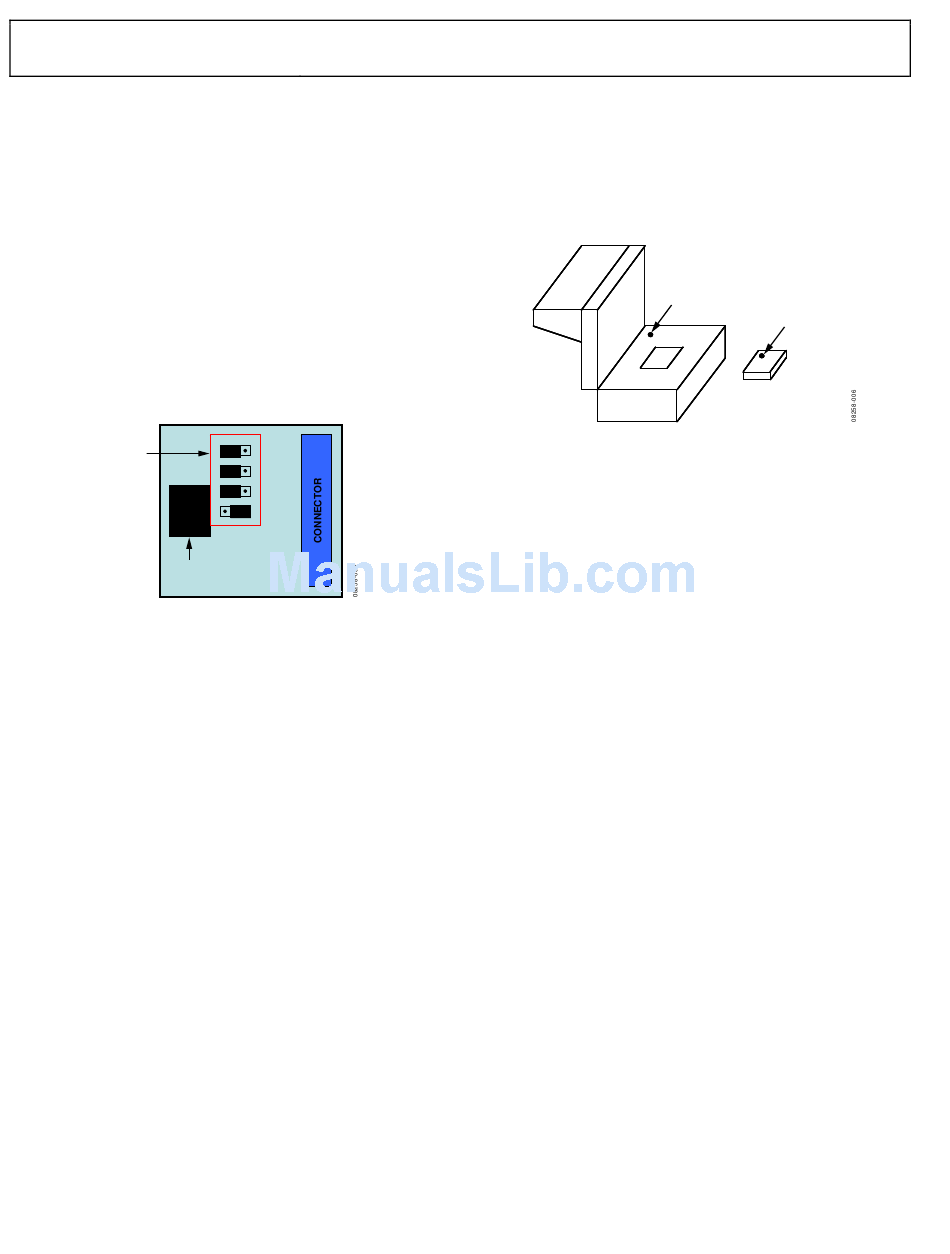

5. Verify that the jumpers located in the center of the
ADXL346 satellite are configured as shown in Figure 5.
JUMPER
POSITIONS
ADXL346
Figure 5. Correct Jumper Positions for the ADXL346 Satellite
6. Place the ADXL346 ultralow power accelerometer into the
socket on the satellite board.
The Socket Pin 1 Indicator is located inside the socket close
to the hinge, as shown in Figure 6. This pin indicator should
match up with the Pin 1 Indicator on the ADXL346.
7. After positioning the ADXL346 into the socket, firmly
close the socket until it latches.
Figure 6. Location of Pin 1 Indicators for the ADXL346 Accelerometer and Socket
The inertial sensor evaluation system should now be set up and
ready to use.
Rev. 0 | Page 4 of 12
Evaluation Board User Guide
ADXL346 SOCKET
PIN 1 INDICATOR
ADXL346
ACCELEROMETER
PIN 1 INDICATOR
