Page 1 Reference Guide for the Model RT338 ISDN Router NETGEAR, Inc. A Bay Networks Company 4401 Great America Parkway Santa Clara, CA 95054 USA Phone 888-NETGEAR M-RT338NA-1 December 1999...
Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
Page 3 Certificate of the Manufacturer/Importer It is hereby certified that the Model RT338 ISDN Router has been suppressed in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions.
Page 5: Table Of Contents
Contents Preface Purpose of this Document ....................xxi Audience for this Document .....................xxi Conventions ........................xxii Special Message Formats ..................xxii Use of Enter, Type, Press, and Click ...............xxii Other Conventions ....................xxiii Related Publications ...................... xxiii Chapter 1 Introduction About the Router ......................1-1 Features ..........................1-1 Key Features ......................1-2 ISDN Support ......................1-3...
Page 6 Connecting to the ISDN Port ..................2-5 Connecting the Ethernet Cable ................2-5 Connecting the Model RT338 Router to a Single PC ........2-5 Connecting the Model RT338 Router to a Hub or Switch ........2-5 Connecting a Telephone, Fax Machine, or Modem ..........2-5 Connecting the Power Adapter ................2-6 Verifying Power ......................2-6...
Page 7 Connecting for Configuration ..................3-6 Connecting Through a Serial Port ................3-6 Connecting with Microsoft Windows HyperTerminal ..........3-6 Reconnecting with Microsoft Windows HyperTerminal ........3-12 Connecting Through a Telnet Connection ..............3-12 Chapter 4 Initial Router Configuration Configuration Methods ....................4-1 Using the FirstGear Router Configuration Utility ............4-2 Installing FirstGear ....................4-2 Choosing Between the Setup Wizard and Advanced Setup ........4-2 Starting FirstGear .....................4-3...
Page 8 Setting ISP Parameters ....................5-6 Performing the ISP Connection Test ................5-7 Completing the Configuration ...................5-8 Using Advanced Setup ....................5-9 Advanced Setup .......................5-9 Menu Bar Commands ..................5-10 Advanced Setup Window Tabs ................5-10 General Tab .....................5-11 ISDN Tab ......................5-11 North America ISDN Configuration ............5-12 ISDN Advanced Features Tab ..............5-13 Europe ISDN Configuration ...............5-15 Ethernet Tab ....................5-17...
Page 9 Editing IP Options ......................7-9 Editing Filter Sets ......................7-11 Setting Static Routes ....................7-13 Chapter 8 Configuring Dial-In Access Setting Up Default Dial-In Access ..................8-1 Setting Up Dial-In Users ....................8-5 RADIUS Authentication ....................8-7 RADIUS Server Configuration ..................8-7 RADIUS Client Configuration ...................8-8 The Key Field ......................8-9 Adding Users to the RADIUS Database ..............8-9 Using RADIUS Authentication for CLID ..............8-9 Chapter 9...
Page 10 Chapter 11 System Maintenance System Status ......................11-1 System Information ....................11-4 Terminal Baud Rate ......................11-5 Log and Trace .......................11-5 View Error Log .......................11-5 UNIX Syslog and Accounting .................11-6 Diagnostic Menu ......................11-8 Call Testing and TCP/IP Tools ................11-10 System Tools ......................11-11 Back Up and Restore Configuration ................11-11 Backing Up and Restoring the Configuration with a Serial Connection ....11-12 Backing Up and Restoring the Configuration Using TFTP ........11-13 Software Update ......................11-13...
Page 11 Troubleshooting a TCP/IP Network Using a Ping Utility ..........12-4 Testing the LAN Path to Your Router ..............12-4 Testing the Path from Your PC to a Remote Device ..........12-5 Troubleshooting a Remote Node or ISP Connection ..........12-5 Troubleshooting a Remote User Connection ..............12-8 Troubleshooting Multilink Operation ................12-8 Troubleshooting Internet Applications .................12-10 Troubleshooting the Manager Interface ..............12-11...
Page 12 Appendix E Using the Protocol Analyzer and Trace Tools The Diagnostic Process ....................E-1 ISDN Protocol Analyzer ....................E-2 Packet Tracing ....................... E-5 Packet Trace Display Format ................... E-8 Glossary Index Contents...
Page 13 Example of Subnetting a Class B Address ..........1-9 Figure 1-3. Single IP Address Operation Using NAT ..........1-12 Figure 2-1. Front Panel of Model RT338 Router ............2-3 Figure 2-2. Rear Panel of Model RT338 Router ............2-4 Figure 3-1. HyperTerminal Window and Connection Description Dialog Box ....3-7 Figure 3-2.
Page 14 Figure 5-5. Advanced Setup Window .................5-9 Figure 5-6. General Tab ...................5-11 Figure 5-7. ISDN Tab ....................5-12 Figure 5-8. ISDN Advanced Features Tab ..............5-13 Figure 5-9. ISDN Menu Tab (DSS1) .................5-15 Figure 5-10. Ethernet Tab ..................5-17 Figure 5-11. Remote Node Tab ..................5-19 Figure 5-12.
Page 15 Figure 9-1. Outgoing Packet Filtering Process ............9-1 Figure 9-2. Menu 21 - Filter Set Configuration ............9-2 Figure 9-3. Menu 21.3 - Filter Rules Summary ............9-3 Figure 9-4. LAN Packet Which Triggered Last Call ............9-8 Figure 9-5. Menu 21 - Filter Set Configuration ............9-10 Figure 9-6.
Page 16 This page intentionally blank. Figures...
Page 17 Tables Table 1-1. Address Classes ..................1-7 Table 1-2. Netmask Notation Translation Table for One Octet ........1-10 Table 1-3. Netmask Formats ...................1-10 Table 2-1. LED Descriptions ..................2-3 Table 3-1. Hyperterminal COM Port Properties ............3-9 Table 4-1. Manager Interface Menu Commands ............4-5 Table 4-2.
Page 18 Table 7-1. Remote Node Profile Fields ..............7-3 Table 7-2. Remote Node PPP Options Fields ............7-7 Table 7-3. Relationship Between BTR and MTR ............7-8 Table 7-4. Remote Node Network Layer Options Fields ...........7-9 Table 7-5. Remote Node Filters Fields ..............7-12 Table 7-6. Edit IP Static Route Fields ..............7-15 Table 8-1.
Page 19 Table C-5. National ISDN-1 Service with Northern Telecom Switch ......C-4 Table C-6. Custom ISDN Service with Northern Telecom Switch ......C-5 Table C-7. Available Phone Company Features ............C-6 Table D-1. ISDN Call Clearing Codes ..............D-1 Tables...
Page 20 This page intentionally blank. Tables...
Page 21: Preface
The router supports concurrent data and voice communications, reducing cost and administration of multiple phone lines. Purpose of this Document This guide describes the features of the Model RT338 ISDN Router and provides installation and configuration instructions. Audience for this Document Users should have the following experience to configure and install the Model RT338 router: •...
Page 22: Conventions
Reference Guide for the Model RT338 ISDN Router Conventions This section describes the conventions used in this guide. Special Message Formats This guide uses the following formats to highlight special messages: Note: This format is used to highlight information of importance or special interest.
Page 23: Other Conventions
Reference Guide for the Model RT338 ISDN Router Other Conventions This guide uses the following typographical conventions: italics Book titles and UNIX file, command, and directory names. Screen text, user-typed command-line entries. courier font Initial Caps Menu titles and window and button names.
Page 24 This page intentionally blank.
Page 25: Introduction
About the Router The Model RT338 router transports data from one local area network (LAN) to another LAN via a wide area network (WAN) connection. The router compares the network addresses of data packets sent through the LAN to entries in its address tables. If a match is found for a destination network, the router passes the packet to the path indicated by the entry in the routing table.
Page 26: Key Features
Standard basic rate ISDN (BRI) connection – ISDN, 2B+D, providing two 64 Kbps data channels and a 16 Kbps control channel – Two-wire U interface with internal NT-1 adapter on Model RT338-U router – Four-wire S/T interface on Model RT338-S router •...
Page 27: Isdn Support
Free technical support seven days a week, twenty-four hours a day ISDN Support The Model RT338 router is designed to take advantage of the ISDN technology for transmission of data over digital telephone networks. A BRI, which is the usual ISDN implementation, consists of two 64 Kbps B channels for data and one 16 Kbps D channel for control information.
Page 28: Tcp/Ip Support
1-5. IP Address Masquerading by Dynamic NAT+ The Model RT338 router lets several networked PCs share an Internet account using only a single IP address, which may be statically or dynamically assigned by your ISP. This process is also known as IP address masquerading and is an extension of Network Address Translation (NAT).
Page 29: Calling Line Identification
In many areas, you must specifically request that CLID be enabled by the telephone company for your ISDN line. In some regions, CLID may not be available. In the Model RT338 router, the CLID data is transmitted on the analog phone ports. Callback For security and cost accounting, the router uses Callback.
Page 30: What Is A Router
Routing Information Protocol (RIP). Using RIP, routers update one another periodically and check if there are changes to be added to the routing table. The Model RT338 router supports both the older RIP-1 and the newer RIP-2 Protocols. Among other improvements, RIP-2 supports subnet and Multicast Protocols.
Page 31: Table 1-1. Address Classes
Reference Guide for the Model RT338 ISDN Router There are five standard classes of IP addresses. The address classes determine the network and host sections of the address differently. Address classes allow for different numbers of hosts on a network. Each address type begins with a unique bit pattern, which is used by the TCP/IP software to identify the address class.
Page 32: Netmask
Reference Guide for the Model RT338 ISDN Router For each unique value of the network portion of the address, the base address of the range (host address of all zeros) is known as the network address and is not usually assigned to a host. The top address of the range (host address of all ones) is not assigned but is used as the broadcast address for sending a packet simultaneously to all hosts with the same network address.
Page 33: Figure 1-2. Example Of Subnetting A Class B Address
Reference Guide for the Model RT338 ISDN Router Subnet addressing lets you split one IP address into smaller physical networks or subnetworks. Some node numbers are used as subnet numbers. A Class B address provides 16 bits of node numbers, translating to 64,000 nodes. Most organizations do not use 64,000 nodes; free bits can be reassigned.
Page 34: Table 1-2. Netmask Notation Translation Table For One Octet
Reference Guide for the Model RT338 ISDN Router Table 1-2 lists the additional subnet mask bits in dotted-decimal notation. To use the table, write down the original class netmask and replace the 0 value octets with the dotted-decimal value of the additional subnet bits.
Page 35: Private Ip Addresses
IP addresses from the ISP. This approach is more costly than a single-address account, which is typically held by a user with a modem rather than a router. The Model RT338 router uses an address-sharing method called NAT. This method lets several networked PCs share an Internet account using only a single IP address, which may be statically/dynamically assigned by the ISP.
Page 36: Mac Addresses And Address Resolution Protocol
Reference Guide for the Model RT338 ISDN Router Figure 1-3 illustrates a single IP address operation. Private IP addresses assigned by user IP addresses assigned by ISP 192.168.0.2 192.168.0.3 192.168.0.1 172.21.15.105 Internet 192.168.0.4 192.168.0.5 7786EA Figure 1-3. Single IP Address Operation Using NAT This scheme offers the additional benefit of protection similar to that of a firewall.
Page 37: Domain Name System Server
Reference Guide for the Model RT338 ISDN Router If a device sends data to another station on the network and the destination MAC address is not yet recorded, ARP is used. An ARP request is broadcast onto the network. All stations on the network receive and read the request.
Page 38: Installing And Connecting The Router
Chapter 2 Installing and Connecting the Router This chapter provides instructions for installing the Model RT338 router and connecting to the Manager interface through a serial port or Telnet connection. Refer to Chapter 4, “Initial Router Configuration” for instructions to use the Manager interface and other configuration utilities.
Page 39: Local Network Requirements
Local Network Requirements Hardware Requirements The Model RT338 ISDN Router is intended for use in a network of workstations that are interconnected by twisted pair Ethernet or Fast Ethernet cables. Each workstation in the network must meet the following requirements: •...

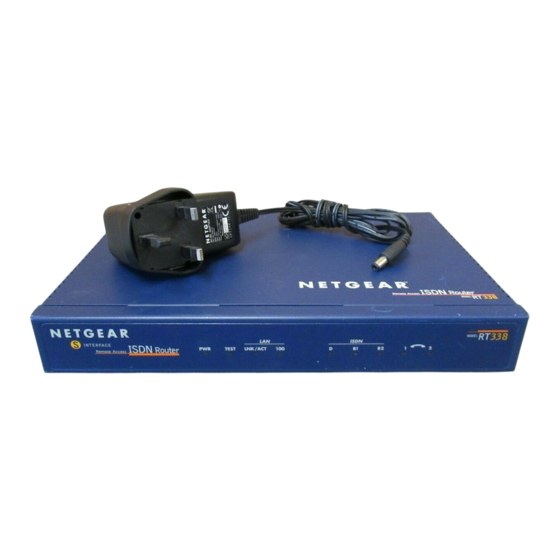

Page 40: Router Description
Reference Guide for the Model RT338 ISDN Router Router Description The front panel of the Model RT338 router (Figure 2-1) contains status LEDs. ISDN TEST LNK/ACT 9532EA Key: 1 = PWR (Power) LED 2 = TEST LED 3 = Link/Activity and 100 Mbps LAN LEDs...
Page 41: Connecting The Serial Cable (Optional)
Reference Guide for the Model RT338 ISDN Router The rear panel of the Model RT338 router is shown in Figure 2-2. Refer to this diagram to identify all of the ports on the router when you attempt to make any connections.
Page 42: Connecting To The Isdn Port
Connecting the Ethernet Cable The LAN port on the Model RT338 router is wired as a PC, not as a hub. Follow the procedure that is appropriate for your installation. If you are connecting to a 100 Mbps Fast Ethernet network or a mixed 10/100 Mbps network, all 100 Mbps connections should be made with Category 5 rated Ethernet cable (included with your router).
Page 43: Connecting The Power Adapter
Reference Guide for the Model RT338 ISDN Router Connecting the Power Adapter To connect the router to the power adapter: Plug the connector of the power adapter into the 12 V DC adapter outlet on the rear panel of the router.
Page 44: Preparing Your Network
Preparing Your Network This chapter describes the preparations to connect a PC to the Internet or a remote LAN using the Model RT338 ISDN Router. Perform the following tasks before configuring the router: • Order ISDN service from a local phone company.
Page 45 Reference Guide for the Model RT338 ISDN Router The Model RT338 router supports the following ordering codes: • IOC-S (basic voice and data service) • IOC-U (basic voice and data plus supplemental voice services) • EZ-ISDN-1 (basic voice and data plus supplemental voice services) Note: The IOC-S capability package does not enable any supplemental services, such as call waiting.
Page 46: Isp Checklist
Reference Guide for the Model RT338 ISDN Router ISP Checklist If you are contracting with an Internet service provider (ISP) for Internet access, choose between a single-user account and a multiuser LAN account. Connect your multiuser network through a single-user account by using the Network Address Translator (NAT) feature of your router.
Page 47: Installing Tcp/Ip
Physically connect the PCs and the router using a hub or a direct connection. Restart the router and allow it to boot. Restart each PC. The Model RT338 router is shipped preconfigured as a DHCP server and assigns the following TCP/IP configuration information automatically: •...
Page 48: Selecting Ip Addresses For Your Network
Use private addresses if you are accessing the Internet for which a single dynamic or static IP address is assigned and you have no other InterNIC-registered addresses for the LAN. If you have not been assigned an IP address, NETGEAR recommends that you let the DHCP server functionality of the router assign an address (refer to “Configuring TCP/IP”...
Page 49: Connecting For Configuration
Reference Guide for the Model RT338 ISDN Router Connecting for Configuration If you use a PC, configure the router through the FirstGear Router Configuration Utility or the menu-based Manager interface of your router. For complete instructions for using FirstGear, refer “Using the FirstGear Router Configuration Utility”...
Page 50: Figure 3-1. Hyperterminal Window And Connection Description Dialog Box
Enter a descriptive name for the connection in the Name text box of the New Connection dialog box. The example in Figure 3-1 shows “RT338” as the connection name. HyperTerminal uses this text as the file name when you save the connection information in a session file. Preparing Your Network...
Page 51: Figure 3-2. Hyperterminal Connect To Dialog Box
Reference Guide for the Model RT338 ISDN Router Click OK. The Connect To dialog box opens, as shown in Figure 3-2. Figure 3-2. HyperTerminal Connect To Dialog Box In the Connect Using field, select either COM1 or COM2 (depending on the serial port).
Page 52: Figure 3-3. Com Port Properties Dialog Box
Reference Guide for the Model RT338 ISDN Router Click OK. The COM1 or COM2 Properties dialog box opens, as shown in Figure 3-3. Figure 3-3. COM Port Properties Dialog Box In the COM1 or COM2 Properties dialog box, set the parameters shown in Table 3-1.
Page 53: Figure 3-4. Router Password Prompt In Hyperterminal Window
The HyperTerminal window displays the router Password prompt as shown in Figure 3-4. Figure 3-4. Router Password Prompt in HyperTerminal Window Type the Manager interface password for the Model RT338 router, and press [Enter]. The default password is 1234. 3-10 Preparing Your Network...
Page 54: Figure 3-5. Router Main Menu In Hyperterminal Window
Reference Guide for the Model RT338 ISDN Router The router Main Menu opens as shown in Figure 3-5. Figure 3-5. Router Main Menu in HyperTerminal Window Use the menus to configure the router as necessary. After configuring the router, from the HyperTerminal menu bar choose File > Save.
Page 55: Reconnecting With Microsoft Windows Hyperterminal
Reference Guide for the Model RT338 ISDN Router Reconnecting with Microsoft Windows HyperTerminal The next time you connect to the router using HyperTerminal, open the session file as follows: From the HyperTerminal menu bar, choose File > Open. The Open dialog box opens.
Page 56: Initial Router Configuration
Chapter 4 Initial Router Configuration This chapter contains initial configuration information for the Model RT338 ISDN Router using either the FirstGear Router Configuration Utility or the built-in Manager interface. Configuration Methods Use one of the following options to configure the router: •...
Page 57: Using The Firstgear Router Configuration Utility
Reference Guide for the Model RT338 ISDN Router Using the FirstGear Router Configuration Utility FirstGear uses an interview-style quick configuration procedure and operates on a PC running Windows 95 or later. This section contains instructions for the following procedures: •...
Page 58: Starting Firstgear
On the Windows taskbar, click Start and choose Programs > FirstGear for RT338 > Advanced Setup. When you start FirstGear, it searches the LAN for the Model RT338 router. If FirstGear does not find a Model RT338 router, it displays an alert box.
Page 59: Using The Manager Interface Configuration Method
Reference Guide for the Model RT338 ISDN Router Using the Manager Interface Configuration Method Turning On Power to the Router When power is applied, the router performs POST (power-on self-test) and initializes the ISDN line. The startup display appears if a serial connection to the Manager interface is established...
Page 60: Navigating The Manager Interface
Reference Guide for the Model RT338 ISDN Router Navigating the Manager Interface The Manager interface is the interface used to configure your router. Table 4-1 lists and describes the commands that let you navigate through the menus in the Manager interface.
Page 61: Manager Interface Menu Summary
Reference Guide for the Model RT338 ISDN Router Manager Interface Menu Summary Table 4-2 describes the top-level Manager interface menus. Table 4-2. Manager Interface Menu Summary Number Menu Title Description General Setup Used to set up general information and enable specific protocol routing or bridging.
Page 62: General Setup Menu
Reference Guide for the Model RT338 ISDN Router General Setup Menu The General Setup Menu contains administrative and system-related information. To enter administrative and system-related information: Enter 1 from the Main Menu to display Menu 1 - General Setup, as shown in Figure 4-3.
Page 63: North American Isdn Menu
Reference Guide for the Model RT338 ISDN Router North American ISDN Menu Use the commands described in Table 4-1 Table 4-2 to display the ISDN Setup menu for North America. Figure 4-4 shows Menu 2 - ISDN Setup. Menu 2 - ISDN Setup Switch Type= AT&T 5ESS NI-1...
Page 64: Isdn Advanced Setup Menu (North America)
Reference Guide for the Model RT338 ISDN Router ISDN Advanced Setup Menu (North America) Use the ISDN Advanced Setup menu, shown in Figure 4-5, to configure advanced ISDN settings. Menu 2.1 - ISDN Advanced Setup ISDN Features Access Code: Conference Call= 60...
Page 65: Dss1 Isdn Menu
Reference Guide for the Model RT338 ISDN Router DSS1 ISDN Menu Table 4-5 lists and describes the fields and field descriptions for Menu 2 - ISDN Setup. Table 4-5. ISDN Setup Field Descriptions (DSS1) Field Description Switch Type This field is fixed as DSS1.
Page 66: Isdn Advanced Setup Menu (Dss1)
Reference Guide for the Model RT338 ISDN Router Figure 4-6 shows Menu 2 - ISDN Setup for DSS1. Menu 2 - ISDN Setup Switch Type= DSS1 B Channel Usage= Switch/Switch ISDN Data = Subaddress= A/B Adapter 1 = Subaddress= A/B Adapter 2 = Subaddress=...
Page 67: Table 4-6. Isdn Advanced Setup Menu Fields (Dss1)
Reference Guide for the Model RT338 ISDN Router (Table 4-6) lists and describes the fields from Menu 2.1 - ISDN Advanced Setup (DSS1) menu (Figure 4-7). Table 4-6. ISDN Advanced Setup Menu Fields (DSS1) Field Description Phone 1 and 2 Call...
Page 68: Ethernet Setup
Reference Guide for the Model RT338 ISDN Router Ethernet Setup Use menu 3 to configure Ethernet LAN parameters, including interface type, filters, DHCP, and IP address information. From the Main Menu, enter 3. There are two submenus: • Menu 3.1 - General Setup •...
Page 69: Figure 4-9. Menu 3.2 - Tcp/Ip And Dhcp Ethernet Setup
Reference Guide for the Model RT338 ISDN Router If you are setting up your network for the first time, read about IP addresses starting with “IP Addresses and the Internet” on page 1-6. For most applications, the default TCP/IP and DHCP settings of the router are satisfactory.
Page 70 Reference Guide for the Model RT338 ISDN Router Table 4-7 lists and describes the fields to use for setting up TCP/IP parameters. When you finish entering information in all of the fields, press [Enter] at this prompt: Press [Enter] to Confirm.
Page 71 RIP Version This field determines how the router handles RIP (Routing Information Protocol). The following RIP options are supported by the Model RT338 router: • RIP-1—The router accepts and sends RIP-1 messages only. • RIP-2B—The router accepts RIP-1 and RIP-2 messages (both broadcast and multicast) and sends RIP-2 messages in broadcast format.
Page 72: Setting The Manager Interface Password
Reference Guide for the Model RT338 ISDN Router Setting the Manager Interface Password For security, you should change the Manager interface password from the default value of 1234. To change the Manager interface password: Select option 23 (System Security) from the main menu.
Page 73: Using Firstgear To Configure Internet Access
Chapter 5 Using FirstGear to Configure Internet Access This chapter provides instructions for configuring the Model RT338 ISDN Router with the FirstGear Setup Wizard and Advanced Setup options. The Setup Wizard configures the router so that a workstation or small network can access an ISP using IP routing. Use the Setup Wizard to do setup tasks and modify the configuration later using the Advanced Setup option.
Page 74: Figure 5-1. Internet Access Wizard Isdn Line Setup Window, North America
Reference Guide for the Model RT338 ISDN Router North America ISDN Configuration Figure 5-1 shows the North American version of the ISDN Line Setup screen. The information needed to be entered in this screen is provided by the telephone company.
Page 75 Reference Guide for the Model RT338 ISDN Router To configure the North American ISDN line information: Select the type of ISDN switch or protocol used by your telephone company. If the switch is running National ISDN Protocol (NI-1), select National ISDN regardless of the switch manufacturer.
Page 76: Figure 5-2. Internet Access Wizard Isdn Line Setup Window, Dss1
Reference Guide for the Model RT338 ISDN Router Click on the Next button at the bottom of the screen to send the ISDN information to the router and to launch the ISDN Initialization and Loopback Test. If you are only changing the current ISP data, you may disable the initialization and loopback test by deselecting the checkbox.
Page 77: Initializing Isdn And Performing The Loopback Test
Reference Guide for the Model RT338 ISDN Router Initializing ISDN and Performing the Loopback Test If the Perform ISDN Initialization/Loopback Test box is checked, FirstGear initializes the router ISDN line and performs a loopback test when Next is clicked on. During the ISDN initialization and loopback test, the following events occur: •...
Page 78: Setting Isp Parameters
Reference Guide for the Model RT338 ISDN Router Setting ISP Parameters The information in the next configuration window (Figure 5-3) is provided by your ISP. Figure 5-3. Internet Access Wizard ISP Parameters Window To configure the ISP Parameters Screen to dial your ISP: Enter the login name (assigned be the ISP) in the User Name field.
Page 79: Performing The Isp Connection Test
Reference Guide for the Model RT338 ISDN Router Enter the primary telephone number of the ISP and an alternate number (if applicable). Enter the phone number in the correct format for dialing locally. Do not enter the area code unless it is required for local dialing.
Page 80: Completing The Configuration
5-4. The router is configured for basic Internet access. Figure 5-4. Internet Access Wizard ISP Test Complete Window Go to the NETGEAR home page for more information about the router. Or, select Advanced Setup to customize the configuration (refer to “Using Advanced Setup” on page 5-9).
Page 81: Using Advanced Setup
To launch Advanced Setup, do one of the following: • From the last window of the Internet Access Wizard, click on Advanced Setup. • Click Start and choose Programs > FirstGear for RT338 > Advanced Setup. The Advanced Router Configuration window opens (Figure 5-5).
Page 82: Menu Bar Commands
Reference Guide for the Model RT338 ISDN Router Menu Bar Commands There are three choices on the menu bar for the Advanced Router Configuration (Figure 5-5). Table 5-1. Menu Bar Commands Menu Command Description File New Connection Reads the current router configuration, discarding any changes made in the Advanced Setup menus.
Page 83: General Tab
Reference Guide for the Model RT338 ISDN Router General Tab The General tab (Figure 5-6) is used to set parameters that identify the router. Select this tab from the Advanced Router Configuration window (Figure 5-5). Figure 5-6. General Tab Table 5-3 describes the fields from the General tab.
Page 84: North America Isdn Configuration
Reference Guide for the Model RT338 ISDN Router North America ISDN Configuration Figure 5-7 shows the ISDN tab for North America. Figure 5-7. ISDN Tab Table 5-4 lists and describes the fields of the ISDN tab for North America. Table 5-4.
Page 85: Isdn Advanced Features Tab
Reference Guide for the Model RT338 ISDN Router Table 5-4. ISDN Tab Fields for North America (continued) Field Description SPID Use the SPID box in both the Channel 1 and Channel 2 areas to set the SPID numbers provided by your telephone company. Depending on your switch type, you may have zero, one, or two SPIDs assigned to your line.
Page 86 Reference Guide for the Model RT338 ISDN Router Table 5-5 lists and describes the fields of the ISDN Advanced Features tab. Table 5-5. Advanced ISDN Features Tab Field Description Conference Call Enter the feature key codes used by your local telephone company to access each Advanced Calling Feature.
Page 87: Europe Isdn Configuration
Reference Guide for the Model RT338 ISDN Router Europe ISDN Configuration In Europe and other areas using the DSS1 (CTR-3) Protocol, use the ISDN menu tab to set the directory numbers and call handling protocols. Figure 5-9 shows the ISDN menu tab for DSS1.
Page 88 Reference Guide for the Model RT338 ISDN Router Table 5-6. ISDN Menu Tab Fields (DSS1) (continued) Field Description A/B Adapter 1 & 2 Enter the telephone number and subaddress assigned to each A/B Adapter Subaddress (Phone 1 & 2). These numbers and subaddresses are used as outgoing Calling Party Numbers (CGPN) for the A/B Adapter calls.
Page 89: Ethernet Tab
Reference Guide for the Model RT338 ISDN Router Ethernet Tab The Ethernet tab (Figure 5-10) has the configuration information for the local Ethernet port. Figure 5-10. Ethernet Tab Table 5-7 describes the fields of the Ethernet tab. Table 5-7. Ethernet Tab Fields...
Page 90 • RIP-2M—Router accepts RIP-1 and RIP-2 messages (both broadcast and multicast) and sends RIP-2 messages in multicast format. RIP-2 also supports subnetting and multicasting. NETGEAR recommends the RIP-2B version. Select RIP-1 if other connected routers or workstations have problems with RIP-2.
Page 91: Remote Node Tab
Reference Guide for the Model RT338 ISDN Router Remote Node Tab A remote node is required for placing calls to or answering calls from a remote network. When a remote node is configured, traffic to a remote LAN prompts the router to make a call automatically (Dial On Demand).
Page 92: Figure 5-12. Add/Modify Remote Node Tab
Reference Guide for the Model RT338 ISDN Router Figure 5-12 shows the Add/Modify Remote Node tab. Figure 5-12. Add/Modify Remote Node Tab Table 5-8 lists and describes the fields of the Add/Modify Remote Node tab. Table 5-8. Remote Node Tab Fields...
Page 93 Reference Guide for the Model RT338 ISDN Router Table 5-8. Remote Node Tab Fields (continued) Field Description Call Direction If this parameter is set to Both, the router can both place and receive calls to and from this remote node. If set to Incoming, the router does not place a call to this remote node.
Page 94: Selecting Ppp Detail On The Remote Node Tab
Reference Guide for the Model RT338 ISDN Router Table 5-8. Remote Node Tab Fields (continued) Field Description Idle Timeout Use these radio buttons and the text box to configure how long the router maintains an idle connection. Your options are: •...
Page 95: Table 5-9. Ppp Detail Tab
Reference Guide for the Model RT338 ISDN Router Table 5-9 lists and describes the fields of the PPP Detail tab. Table 5-9. PPP Detail Tab Field Description Encapsulation Select CCP (Compression Control Protocol) for the PPP or MP link. Two options are available in this field: Standard PPP—Standard PPP options are used (default).
Page 96: Selecting Tcp/Ip Detail On The Remote Node Tab
Reference Guide for the Model RT338 ISDN Router Selecting TCP/IP Detail on the Remote Node Tab Click on the TCP/IP Detail on the Remote Node tab (Figure 5-12 on page 5-20) to open the TCP/ IP Detail tab (Figure 5-14).
Page 97 Reference Guide for the Model RT338 ISDN Router Table 5-10. TCP/IP Detail Tab (continued) Field Description My WAN Set this field to 0.0.0.0, unless you are using numbered links or a single user account Address (NAT) with a fixed address. Some networks require hosts on both ends of the ISDN link to have unique addresses from the LAN.
Page 98: Static Routes Tab
Reference Guide for the Model RT338 ISDN Router Static Routes Tab Use the Static Routes tab (Figure 5-15) to view and edit static routes. Static routes are created when you configure an ISP or remote node connection. Normally you do not need to configure additional static routes.
Page 99: Figure 5-16. Add/Modify Static Route Tab
Reference Guide for the Model RT338 ISDN Router The Add/Modify Static Route Tab opens (Figure 5-16). Complete the new static route by filling in the fields. Table 5-11 describes the fields on the Add/Modify Static Route tab. Figure 5-16. Add/Modify Static Route Tab Table 5-11.
Page 100: Using The Manager Interface To Configure Internet Access
Chapter 6 Using the Manager Interface to Configure Internet Access This chapter describes how to use the Manager interface to configure your Model RT338 ISDN Router for Internet access. Information Checklist Use Menu 4 of the Manager interface to configure Internet access. Before configuring the router for Internet access, make sure the ISP provides you with the following information: •...
Page 101: Configuring Internet Access
Reference Guide for the Model RT338 ISDN Router Configuring Internet Access Use Menu 4 (Internet Access Setup) to configure the router for access to an ISP. When the menu is completed, a remote node for the ISP is added in Menu 11, using ISP configuration parameters in addition to those that were specified in Menu 4.
Page 102 Reference Guide for the Model RT338 ISDN Router Note: For North America, dial an ISDN data call using 1+area code or you will receive a 56K connection instead of a 64K connection. Check with your local phone company. Enter your login name in the My Login Name field.
Page 103: Configuring For Local Servers With Nat
Reference Guide for the Model RT338 ISDN Router Press [Enter] at the Press ENTER to Confirm... prompt to confirm your selections. Press [Esc] at any time to cancel your selections. The Manager interface asks if you want to test the Internet connection. If you select Yes, the router calls the ISP to test the Internet connection.
Page 104: Local Web And Ftp Server Example
Some online games and videoconferencing applications are incompatible with NAT. The Model RT338 router is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well. In some cases, one local PC can run the application properly if that PC’s IP address is entered as the default in Menu 15.
Page 105: Backup Isp Accounts
Reference Guide for the Model RT338 ISDN Router Backup ISP Accounts For backup purposes, you may want to configure more than one ISP account. The NAT feature can be enabled for all of these accounts, making it convenient to switch ISP in the event of a failure.
Page 106: Figure 6-4. Menu 11.1 - Remote Node Profile
Reference Guide for the Model RT338 ISDN Router Type an unused remote node number at the prompt, and press Enter. Menu 11.1 - Remote Node Profile opens as shown in Figure 6-4. Menu 11.1 - Remote Node Profile Rem Node Name= ?
Page 107: Switching To A Backup Isp
Reference Guide for the Model RT338 ISDN Router Press Enter to open Menu 11.3. The Remote Node Network Layer Options menu opens as shown in Figure 6-5. Menu 11.3 - Remote Node Network Layer Options Rem IP Addr: Rem Subnet Mask= 0.0.0.0 My WAN Addr= 0.0.0.0...
Page 108: Remote Node Configuration
Chapter 7 Remote Node Configuration This chapter describes how to configure the Model RT338 ISDN Router to access a remote node. A remote node represents both a remote gateway and the network behind in an ISDN connection. A remote node must be configured in order for a router to place calls to a remote network or answer calls from a remote network.
Page 109: Remote Node Setup
Reference Guide for the Model RT338 ISDN Router Remote Node Setup Use Menu 4 (Internet Access Setup) to configure the router for Internet access. The router adds a remote node for you because the ISP falls outside the normal criteria that define a remote node.
Page 110: Table 7-1. Remote Node Profile Fields
Reference Guide for the Model RT338 ISDN Router At the bottom of Menu 11.1, press Enter to save Menu 11.1. Press [Esc] at any time to cancel your selections. Table 7-1 lists and explains the fields in the Remote Node Profile menu.
Page 111 Reference Guide for the Model RT338 ISDN Router Table 7-1. Remote Node Profile Fields (continued) Field Description Outgoing: My Login Name This is a required field if Call Direction is either Both or Out. Enter the login name your router uses when it calls this remote node.
Page 112 Reference Guide for the Model RT338 ISDN Router Table 7-1. Remote Node Profile Fields (continued) Field Description Telco Options: Transfer Type When establishing a call in North America, your router specifies a data rate and the type of call based on this field. Three options are available for this field: •...
Page 113: Editing Ppp Options
Reference Guide for the Model RT338 ISDN Router Editing PPP Options To edit PPP options: Select Yes in the Edit PPP Options field of Submenu 11.1 - Remote Node Profile. Press [Enter] to display Menu 11.2 - Remote Node PPP Options.
Page 114 Reference Guide for the Model RT338 ISDN Router Table 7-2 lists and describes each field in Menu 11.2 - Remote Node PPP Options. Refer to “Bandwidth on Demand” on page 7-8” for further information about related fields in this menu.
Page 115: Bandwidth On Demand
Reference Guide for the Model RT338 ISDN Router Bandwidth on Demand The Bandwidth on Demand (BOD) feature lets you bundle both B channels in one logical connection. The second channel is added and subtracted dynamically according to traffic demand. The router uses the Multilink Protocol (MP) in implementing bandwidth on demand. An extension to MP, the Bandwidth Allocation Control Protocol (BACP) may optionally be used.
Page 116: Editing Ip Options
Reference Guide for the Model RT338 ISDN Router Editing IP Options To edit IP options: Select Yes in the Edit IP Options field of Submenu 11.1 - Remote Node Profile. Press [Enter] to display Menu 11.3 - Remote Node Network Layer Options.
Page 117 RIP Version This field determines how the router handles RIP (Routing Information Protocol). The following RIP options are supported by the Model RT338 router: • RIP-1—Router accepts and sends RIP-1 messages only. • RIP-2B—Router accepts RIP-1 and RIP-2 messages (both broadcast and multicast), and sends RIP-2 messages in broadcast format.
Page 118: Editing Filter Sets
Reference Guide for the Model RT338 ISDN Router Editing Filter Sets Filters can be applied to incoming or outgoing data in a remote node connection. Filters can also be used to cause or prevent the placement of outgoing calls to the remote node. To use filters, start...
Page 119: Figure 7-6. Menu 11.5 - Remote Node Filters
Reference Guide for the Model RT338 ISDN Router After defining filters in Menu 21, apply the filters to the remote node by entering the filter number in Menu 11.5 - Remote Node Filters. Cascade up to four filter sets by entering the numbers of the desired filter sets, separated by commas and with no spaces between them.
Page 120: Setting Static Routes
Reference Guide for the Model RT338 ISDN Router Setting Static Routes RIP handles the routing automatically on a directly connected internetwork, which allows the router to learn which networks can be accessed through each defined remote node. However, RIP cannot propagate across isolated networks (for example, in a dialup situation when no calls are active).
Page 121: Figure 7-8. Ip Static Routing Table Example
Reference Guide for the Model RT338 ISDN Router At the command prompt, type: ip route stat [Enter] The command interpreter displays the static IP routing table as shown in the example in Figure 7-8. ras> ip rout stat Dest FF Len Interface...
Page 122: Figure 7-10. Menu 12.1 - Edit Ip Static Route
Reference Guide for the Model RT338 ISDN Router Select an unused number from the menu and press [Enter]. Menu 12.1 - Edit IP Static Route opens as shown in Figure 7-10. Menu 12.1 - Edit IP Static Route Route #: 1...
Page 123 Reference Guide for the Model RT338 ISDN Router Press [Enter] at the Press ENTER to Confirm... prompt to save your selections, or press [Esc] at any time to cancel your selections. As an example of when a static route is needed, consider the following case: •...
Page 124: Configuring Dial-In Access
Chapter 8 Configuring Dial-In Access This chapter describes how to configure the Model RT338 ISDN Router to receive calls from remote dial-in users (for example, telecommuters) and remote nodes. There are several differences between remote dial-in users and remote nodes: •...
Page 125: Figure 8-1. Menu 13 - Default Dial-In Setup
Reference Guide for the Model RT338 ISDN Router To configure default dial-in settings: From the Manager interface Main Menu, enter 13 to open Menu 13 - Default Dial-in Setup as shown in Figure 8-1 on page 8-2. Menu 13 - Default Dial-in Setup...
Page 126 Reference Guide for the Model RT338 ISDN Router Table 8-1 lists and describes the fields in the Default Dial-in Setup menu and explains how to configure the protocol-independent fields in this menu. Table 8-1. Default Dial-in Setup Fields Field Description Telco Options: Choose the Caller ID (CLID) authentication parameter for all incoming calls.
Page 127 Reference Guide for the Model RT338 ISDN Router Table 8-1. Default Dial-in Setup Fields (continued) Field Description IP Address Supplied By: Dial-in User Choose whether the router lets a remote host specify its own IP address. If this field is set to Yes, the router lets a remote host specify its own IP address. If this field is set to No, the remote host uses the IP address assigned by the router from the IP pool.
Page 128: Setting Up Dial-In Users
Reference Guide for the Model RT338 ISDN Router Setting Up Dial-In Users To add a remote dial-in user and configure the settings: From the Manager interface Main Menu, open Menu 14 - Dial-In User Setup as shown in Figure 8-2.
Page 129: Table 8-2. Edit Dial-In User Fields
Reference Guide for the Model RT338 ISDN Router Enter settings for the dial-in user setup. Refer to Table 8-2 for information about the fields on the Edit Dial-in User menu. Press [Enter] at the Press ENTER to Confirm... prompt to save your selections.
Page 130: Radius Authentication
Reference Guide for the Model RT338 ISDN Router RADIUS Authentication The Model RT338 router stores up to eight dial-in user profiles. You can use an external RADIUS (Remote Authentication Dial-In User Service) server to provide authentication service for an unlimited number of users for up to eight users. RADIUS is a software security authentication protocol developed by the IETF RADIUS Working Group.
Page 131: Radius Client Configuration
Reference Guide for the Model RT338 ISDN Router RADIUS Client Configuration To configure the router’s RADIUS client: From the Manager interface Main Menu, open Menu 23 - System Security. Type 2 and press [Enter] to open Menu 23.2 - System Security - External Server as shown Figure 8-4.
Page 132: The Key Field
Create a user record in the /users file where the user name (the first field) is the telephone number and the password (the second field) is always “Netgear-CLID” (case sensitive). The regular user name is put in a User-Name field.
Page 133: Configuring Filters
Chapter 9 Configuring Filters This chapter describes how to use and configure filters for your Model RT338 ISDN Router. The router uses filters to decide whether to allow passage of a data packet and/or to make a call over the ISDN line.
Page 134: Router Filter Structure
Reference Guide for the Model RT338 ISDN Router Router Filter Structure Up to 12 filter sets, each with up to six rules, can be configured. For IP packets, these rules involve comparing the protocol type of a data packet (for example, TCP), source or destination address, or port number.
Page 135: Figure 9-3. Menu 21.3 - Filter Rules Summary
Reference Guide for the Model RT338 ISDN Router After filling in the Edit Comments field, press [Enter] at the Press ENTER to Confirm... prompt to confirm your selections. Press [Esc] at any time to cancel your selections. The new data is displayed in the read-only section of Menu 21 - Filter Set Configuration.
Page 136: Configuring A Filter Rule
Reference Guide for the Model RT338 ISDN Router If the filter type is IP (TCP/IP), the abbreviations listed in Table 9-2 are used. Table 9-2. Filter Type IP Abbreviations Abbreviation Description Protocol Source Address Source Port number Destination Address If the filter type is GEN (generic), the abbreviations listed in Table 9-3 are used.
Page 137 Reference Guide for the Model RT338 ISDN Router Table 9-4 lists and describes the TCP/IP Filter Rule menu fields and a description of each field. Table 9-4. TCP/IP Filter Rule Fields Field Description Active Choose Yes to make the filter rule active, or choose No to make the filter rule inactive.
Page 138: Generic Filter Rule
Reference Guide for the Model RT338 ISDN Router Table 9-4. TCP/IP Filter Rule Fields (continued) Field Description More Choose whether or not you want to pass the packet through the next filter rule before an action is taken. Two options are available for this field: •...
Page 139: Applying A Filter Set
Reference Guide for the Model RT338 ISDN Router Table 9-5. Generic Filter Rule Fields (continued) Field Description Value In this field, specify (in hexadecimal) the value that the router should use to compare with the masked packet. The value should align with Offset. Because length is given in bytes, you need to enter twice the length in hexadecimal numbers for this field.
Page 140: Cascading Filter Sets
Reference Guide for the Model RT338 ISDN Router Cascading Filter Sets When cascading sets, you may need to modify all but the last set in order to have them continue to the next set rather than terminate. You may need to modify filter sets 1 and 3 so that they continue to set 10.
Page 141 Reference Guide for the Model RT338 ISDN Router You can wait until an erroneous call is placed, then examine this packet header to determine the source and cause. The IP packet header contains information such as the next-level protocol type (for example, ICMP, TCP, UDP), source and destination addresses, and source and destination port numbers.
Page 142: Implementing The Filter
Reference Guide for the Model RT338 ISDN Router Implementing the Filter Now you can proceed to define a call filter to block the three NetBIOS service ports. To define a call filter: Go to Menu 21 - Filter Set Configuration (Figure 9-5), and choose a name and filter set.
Page 143: Figure 9-6. Menu 21.1.1 - Tcp/Ip Filter Rule Menu
Reference Guide for the Model RT338 ISDN Router Specify Source Port #137, NetBIOS Naming Service, and set the Port # Comparison field to look for port numbers equal to 137. For packets that match this comparison, you want to drop the packet, so set Action Matched to “Drop.”...
Page 144: Applying The Filter
Reference Guide for the Model RT338 ISDN Router Figure 9-7 shows the Filter Rules Summary menu with all six rules defined. Menu 21.1 - Filter Rules Summary # A Type Filter Rules M m n - - ------------------------------------------------------------------- - - 1 Y IP Pr=6, SA=0.0.0.0, SP=137, DA=0.0.0.0...
Page 145 Reference Guide for the Model RT338 ISDN Router Press [Enter] to save this menu. Proceed back to the bottom of Menu 11.1, Remote Node Profile, and press [Enter] to save all the changes. When you finish, restart the router. Note: After editing and saving a submenu of Menu 11.1, you must also save Menu 11.1 or the submenu changes are discarded.
Page 146: Advanced Phone Features
Chapter 10 Advanced Phone Features The Model RT338 router supports a comprehensive set of advanced calling features known as Supplemental Services. European and North American ISDN Supplemental Services may vary and have different naming conventions. These features include: • Call Waiting •...
Page 147: Call Waiting
Reference Guide for the Model RT338 ISDN Router Table 10-1. Default Key Sequences Feature Key Sequence Conference Transfer Drop Call Forwarding Call Waiting ISDN Call Waiting lets you place a call on hold while you answer another incoming call on the same phone (directory) number.
Page 148: Three Way Calling
Reference Guide for the Model RT338 ISDN Router Three Way Calling The Three Way Calling feature lets you add a third party to an existing call. You must subscribe to this service with your telephone company. To add a third party to an existing call: Press the flash hook button and immediately release it to put the existing call on hold and receive a dial tone.
Page 149: Call Forwarding
The call is automatically transferred. Call Forwarding The Model RT338 router supports Call Forwarding Variable and can be done passively through the Phone ports. Your telephone company provides you with the appropriate dial access codes to activate or deactivate the Call Forwarding feature.
Page 150: System Maintenance
Chapter 11 System Maintenance This chapter describes how to use diagnostic tools to maintain the Model RT338 ISDN Router. These diagnostic tools include displays of system status, ISDN B channel status, log and trace capabilities, and upgrades to the system software.
Page 151 Reference Guide for the Model RT338 ISDN Router Table 11-1 lists the commands used in Menu 24.1 - System Maintenance - Status. Table 11-1. System Maintenance Status Menu Commands Command Field Name Command Enter 1 Drop B1 Disconnects the current B1 channel call.
Page 152: Figure 11-2. Packet Examples
Reference Guide for the Model RT338 ISDN Router Table 11-2. System Maintenance - Status Fields (continued) Field Description Ethernet: Section displays the current status of the LAN connection on your router. Status Current speed and duplex status of the LAN port.
Page 153: System Information
Reference Guide for the Model RT338 ISDN Router System Information Static system information is displayed in Menu 24.2.1 - System Maintenance - Information as shown in Figure 11-3. Menu 24.2.1 - System Maintenance - Information Name: Routing: IP RAS S/W Version: V2.40(N.00)b08 | 8/11/1999...
Page 154: Terminal Baud Rate
Reference Guide for the Model RT338 ISDN Router Terminal Baud Rate To change the baud rate of the serial Manager interface connection, use Menu 24.2.2 - System Maintenance - Change Console Port Speed as shown in Figure 11-4. Menu 24.2.2 - System Maintenance - Change Console Port Speed...
Page 155: Unix Syslog And Accounting
Reference Guide for the Model RT338 ISDN Router After each display, you are prompted with an option to clear the Error Log. Enter the appropriate choice and press [Enter]. UNIX Syslog and Accounting To configure the router to send UNIX system logs to another system, use Menu 24.3.2 - System...
Page 156 Reference Guide for the Model RT338 ISDN Router Enable the router to send the following types of syslog messages: • Call detail record (CDR) • Filter event log • PPP event log • Packet trigger • Voice call (POTS) log To configure the router for logging with the syslogd program on a local host: Go to Menu 24.3.2 - System Maintenance - UNIX Syslog and Accounting.
Page 157: Diagnostic Menu
Reference Guide for the Model RT338 ISDN Router Diagnostic Menu Use the diagnostic menu to test several functions of your router. To open the diagnostic menu: From the Main Menu, enter 24 to open Menu 24 - System Maintenance. Enter 4 to open Menu 24.4 - System Maintenance - Diagnostic as shown in Figure 11-6.
Page 158 Reference Guide for the Model RT338 ISDN Router The diagnostic test fields from Menu 24.4 - System Maintenance - Diagnostic are listed and defined in Table 11-6. Table 11-6. System Maintenance - Diagnostic Fields Field Command Description Hang Up B1 Call [Enter 1] Hangs up B channel 1.
Page 159: Call Testing And Tcp/Ip Tools
Reference Guide for the Model RT338 ISDN Router Call Testing and TCP/IP Tools Manual Call and Internet Setup Test are used for testing call placement and session connection with remote hosts. Both tests cause a call to be placed to a remote node and show the progress of the connection.
Page 160: System Tools
Reference Guide for the Model RT338 ISDN Router Figure 11-8 shows an example of a trace display for a failed call when using a TCP/IP Protocol connection. In this case, the login name or password may be incorrect, because the first sign of a problem is the LCP down message immediately following the PAP login step.
Page 161: Backing Up And Restoring The Configuration With A Serial Connection
Reference Guide for the Model RT338 ISDN Router NETGEAR recommends backing up your router configuration after the router is functioning. You can back up and restore operations through a serial connection using a terminal emulation program (such as HyperTerm) or over the LAN using the Telnet Protocol and a third-party TFTP program.
Page 162: Backing Up And Restoring The Configuration Using Tftp
Do not attempt to use this menu unless you have the new software version. Note: NETGEAR recommends that you change the Manager interface port baud rate to 38400 before updating the software. Doing so results in an update time of 5 to 10 minutes.
Page 163: Updating Router Software Using Tftp
Reference Guide for the Model RT338 ISDN Router Select Menu 24 - System Maintenance. Enter 7 to select Software Update. A message is displayed asking if you want to continue. Press Y and wait for the Debug Mode command prompt.
Page 164: Using Command Interpreter Mode
To view a list of valid commands: • Type “help” at the command prompt. For more detailed information, refer to the Application Notes contained in the Model RT338 Resource CD or the NETGEAR Web site at the http://www.NETGEARinc.com URL. Configuring Call Control The Model RT338 ISDN Router provides call control management functions for the remote node and remote dial-in user.
Page 165: Viewing Call History
Reference Guide for the Model RT338 ISDN Router The default for the total budget is 0 minutes, and the total period is 0 hours. These values disable budget control. Reset the total outgoing call time in the Menu 24.9.3 - Budget Management. The total outgoing call timer can be programmed to reset itself periodically through Menus 11 and 13.
Page 166: Configuring The Manager Interface Password
Reference Guide for the Model RT338 ISDN Router Configuring the Manager Interface Password The internal Manager interface of the Model RT338 ISDN Router is protected by a Manager interface password. The factory default Manager interface password is 1234. To change the Manager interface password: Select option 23 (System Security) from the Main Menu to display Menu 23 - System Security.
Page 167: Troubleshooting
This chapter has troubleshooting information for the Model RT338 ISDN Router. Instructions are provided to help you diagnose and solve each problem described. Basic Functioning The following events occur when power is applied to the Model RT338 ISDN Router: • PWR (Power) LED lights.
Page 168: Test Led
• Be sure that you are using the correct cable: — If you are connecting a Model RT338 router directly to a workstation or to the uplink (MDI) port of a hub, use the included red crossover cable. — If you are connecting a Model RT338 router to a normal (MDI-X) hub port, use the included white straight-through cable.
Page 169: Isdn Initialization Or Reset
Reference Guide for the Model RT338 ISDN Router ISDN Initialization or Reset An error message may appear from the Manager interface during power-up initialization, when you manually reset the ISDN through the diagnostic menu, or when you attempt to save the...
Page 170: Troubleshooting A Tcp/Ip Network Using A Ping Utility
Reference Guide for the Model RT338 ISDN Router Troubleshooting a TCP/IP Network Using a Ping Utility Most TCP/IP terminal devices (and routers) contain a ping utility that sends an echo request packet to the designated device. The device responds with an echo reply. Troubleshoot a TCP/IP network by using the ping utility in the built-in Manager interface (Menu 24.4) or in the PC or workstation.
Page 171: Testing The Path From Your Pc To A Remote Device
Reference Guide for the Model RT338 ISDN Router Testing the Path from Your PC to a Remote Device After verifying that the LAN path works correctly, test the path from your PC to a remote device: Click Start and select Run.
Page 172: Figure 12-1. Trace Display For A Successful Tcp/Ip Protocol Connection
Reference Guide for the Model RT338 ISDN Router Run the Internet Setup Test or place a manual call to the remote node. Run the Internet Setup Test from FirstGear or from Menu 24.4.11, or place a manual call to the remote node using Menu 24.4.5.
Page 173 Reference Guide for the Model RT338 ISDN Router • $$$ IPCP negotiation started Authentication was successful, and the IP Control Protocol (IPCP) has begun further negotiations to establish a PPP link. • $$$ CCP stopped Compression Control Protocol (CCP) has determined that data compression is not used.This step may not appear if the ISP does not support compression.
Page 174: Troubleshooting A Remote User Connection
Reference Guide for the Model RT338 ISDN Router • Check the error log in Menu 22.3.1, which usually provides some indication of why the call was dropped. If there is nothing in the log, the call may have been dropped by the remote device.
Page 175: Figure 12-2. Trace Display For A Successful Multilink Connection
Reference Guide for the Model RT338 ISDN Router Use the Space bar to toggle to 128. Press [Enter] to proceed to the bottom of the screen. You are returned to Menu 11.1. Continue to the bottom of Menu 11.1 by pressing [Enter].
Page 176: Troubleshooting Internet Applications
• Quake If you have problems with an application that is not supported by the Model RT338 router, you can let the application run on a local PC by forwarding all unmapped incoming packets to that PC. You can do this by entering the IP address of the device as the default SUA server in Menu 15.
Page 177: Troubleshooting The Manager Interface
Reference Guide for the Model RT338 ISDN Router Troubleshooting the Manager Interface Refer to the following section if you cannot access the Manager interface by the serial port or by using Telnet. If you cannot access the Manager interface by the serial port, do the following: Verify that the router is connected to the serial port of your terminal or computer.
Page 178: Restoring The Default Configuration And Password
This file can be found in the directory where FirstGear was installed. It is also available on the NETGEAR Web site. This procedure restores the Manager interface password to “1234” and sets the Manager interface baud rate to “9600.” This recovery method is for cases when the Manager interface password is not known.
Page 179: Technical Specifications
Appendix A Technical Specifications This appendix provides technical specifications for the Model RT338 ISDN Router. General Specification Network Protocol and Standards Compatibility WAN Protocols: PPP, Multilink PPP, BACP Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP ISDN Standard: National ISDN-1 (North America) AT&T 5ESS Custom (North America)
Page 180 Reference Guide for the Model RT338 ISDN Router Physical Specifications Dimensions: 253 by 181 by 35 mm 9.95 by 7.1 by 1.4 in. Weight: 1.1 kg 2.5 lb. Environmental Specifications Operating temperature: 0° to 40° C Operating humidity: 90% maximum relative humidity, noncondensing...
Page 181: Configuring Windows Tcp/Ip
Appendix B Configuring Windows TCP/IP Before using FirstGear, verify that a network adapter card is installed in your PC and a TCP/IP component is installed and configured for your network adapter. For PCs running Windows 3.1, a TCP/IP application package (NetManage Chameleon) must be installed.
Page 182: Configuring Tcp/Ip Properties By Dhcp
LAN. If a DHCP server is ready, click on the OK button for the Network Properties window and then reboot the PC when prompted. The Model RT338 router is shipped preconfigured as a DHCP server. The router assigns the following TCP/IP configuration information before being configured: •...
Page 183: Configuring Tcp/Ip Properties Manually
Reference Guide for the Model RT338 ISDN Router Configuring TCP/IP Properties Manually To manually enter the TCP/IP configuration information for a PC in the Network Properties Window: Select TCP/IP. Click on Properties. Select the IP Address tab. Click on Specify an IP address.
Page 184: Verifying Tcp/Ip Properties
Reference Guide for the Model RT338 ISDN Router Verifying TCP/IP Properties After your PC has been configured and rebooted, you can check the TCP/IP configuration using the Windows utility winipcfg.exe (for NT systems, use ipconfig.exe). To verify TCP/IP properties: From the Windows taskbar Click on Start and choose Run.
Page 185: Appendix C Ordering Isdn Lines
This section has information about how to order an ISDN line. If an ISDN line is already installed, check the following information to make sure that you can use all the features of your Model RT338 ISDN Router. Ordering the Line...
Page 186: Provisioning For Switches In North America
National ISDN Users Forum (NIUF). Summarizing a specific set of ISDN features and services, IOCs contain all the configuration information needed to easily provision an ISDN line. IOCs are accepted by most U.S. telephone companies. The NETGEAR Model RT338 ISDN Router supports the following ordering codes: •...
Page 187: Provisioning For At&T 5Ess Switch
Reference Guide for the Model RT338 ISDN Router Provisioning for AT&T 5ESS Switch Table C-2 lists the provisioning features and settings for National ISDN-1 services when using the AT&T 5ESS switch. Table C-2. National ISDN-1 Services with AT&T 5ESS Switch...
Page 188: Provisioning For Northern Telecom Switch
Reference Guide for the Model RT338 ISDN Router Table C-4 lists the provisioning features and settings for Point-to-Point ISDN services when using the AT&T 5ESS switch. Table C-4. Point-to-Point Service with AT&T 5ESS Switch Provisioning Feature Setting Term Type Call Appearances (CA)
Page 189: Supplemental Voice Services
Yes or No (set to opposite of EKTS) Supplemental Voice Services To take advantage of the special voice features on a NETGEAR ISDN device, you must subscribe to one or more services offered by the phone company. The following services are available for the AT&T 5ESS and Northern Telecom DMS-100 N1-1 switches and for the DMS-100 Custom...
Page 190 Reference Guide for the Model RT338 ISDN Router Table C-7 lists the features and services available from the phone company. Table C-7. Available Phone Company Features Feature* Phone Company Service** Call Waiting Additional Call Offering (ACO) Inbound Call Bumping Conference Call...
Page 191: Appendix Disdn Clearing Codes
Appendix D ISDN Clearing Codes This appendix provides information about the ISDN call clearing codes returned by the network when using a Model RT338 ISDN Router. These codes may vary depending on your service provider. Clearing Codes Table D-1 lists the ISDN call clearing codes.
Page 192 Reference Guide for the Model RT338 ISDN Router Table D-1. ISDN Call Clearing Codes (continued) Reason Description Destination out of order Invalid number format Facility rejected Response to status inquiry Normal, unspecified No circuit/channel not available Network out of order...
Page 193: Using The Protocol Analyzer And Trace Tools
Many router connection problems can be diagnosed using the ISDN and Remote Node connection tests in the internal Manager interface of the Model RT338 router. These tests can be found in Menu 24.4 - System Maintenance - Diagnostic. Detailed information about using this menu can be found in Chapter 11, “System...
Page 194: Isdn Protocol Analyzer
You can diagnose an ISDN call connection failure using the Embedded ISDN Protocol Analyzer (EPA) of the Model RT338 router. The EPA executes from the command line interface within the internal Manager interface. To use the EPA, you must connect to the router using the serial MANAGER port.
Page 195 Reference Guide for the Model RT338 ISDN Router Figure E-1 shows the ISDN Protocol Analyzer Display. -----Start Isdn Protocol Analyzer Display----- Start of buffer 00:00:11.52 4 bytes LAPD D C SAPI=0 TEI=97 RR P/F=1 NR=6 00:00:11.53 4 bytes LAPD D...
Page 196: Figure E-1. Isdn Protocol Analyzer Display
Reference Guide for the Model RT338 ISDN Router 3 00:00:12.77 4 bytes LAPD R SAPI=0 TEI=97 RR P/F=0 NR=8 00:00:13.40 11 bytes LAPD C SAPI=0 TEI=97 INFO NR=7 NS=8 7 bytes Northern American Dest CR=0X03 PD=Q.931 ALERTing 1 00110100 INFORMATION ELEMENT : SIGNAL...
Page 197: Packet Tracing
Reference Guide for the Model RT338 ISDN Router Packet Tracing Diagnose the PPP connection failures using the packet trace feature of the Model RT338 router. To invoke the packet trace: Access the internal Manager interface of the router using a serial or Telnet terminal connection.
Page 198 Reference Guide for the Model RT338 ISDN Router The trace appears on the screen (Figure E-2). Use [Page Up] and [Page Down] to see the entire trace. rt328> sys trcl cl Program Trace Switch OFF rt328> sys trcl sw on rt328>...
Page 199: Figure E-2. Trace Screen
Reference Guide for the Model RT338 ISDN Router fe4002 0 PNET ebp=4ab20,seqNum=1d PPP1-RECV:24 len:13 0000: c2 23 03 11 00 0b 57 65 6c 63 6f 6d 65 fe4002 195 PNET ppp CHAP login to remote OK! fe400c 0 PNET ebp=4ab50,seqNum=1e PPP1-RECV:24 len:8...
Page 200: Packet Trace Display Format
Reference Guide for the Model RT338 ISDN Router Packet Trace Display Format Data packets are time stamped and displayed up to the first 32 bytes. PPP message packets are summarized, but their contents are not displayed. The format of the packet trace display is shown...
Page 201: Glossary
Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over twisted pair wiring. 100BASE-Tx IEEE 802.3 specification for 100 Mbps Ethernet over twisted pair wiring. B channel 64 Kbps “Bearer” channel used to carry voice or data over the ISDN network. BACP See Bandwidth Allocation Control Protocol.
Page 202 Reference Guide for the Model RT338 ISDN Router DOSBS Also known as DOVBS. See Data Over Voice Bearer Service. DOVBS See Data Over Voice Bearer Service. Data Over Voice DOVBS. The process of sending data over a call that was established as a Bearer Service voice call.
Page 203 Reference Guide for the Model RT338 ISDN Router masquerading A technique by which several hosts share a single IP address for access to the Internet. This process is an extension of Network Address Translator (NAT). See also Network Address Translator.
Page 204 Reference Guide for the Model RT338 ISDN Router See Point-to-Point Protocol. PSTN Public Switched Telephone Network. Password PAP. A method of enabling security on PPP links. When the link is Authentication established, a password is sent by the caller. See Challenge Handshake Protocol Authentication Protocol.
Page 205: Index
Index A/B Adapter 2 field, ISDN Setup menu, 4-10 A/B Adapter field, ISDN menu tab, 5-16 cables, 2-4 A/B Adapter field, ISDN Setup menu, 4-10 call bumping, 3-2 accounting function, 11-6 call control, 11-15 Action Matched/Not Matched field Call Direction field, Remote Node menu tab, 5-21 Generic Filter Rule menu, 9-7 Call Direction field, Remote Node Profile menu, 7-3 TCP/IP Filter Rule menu, 9-6...
Page 206 filter type, Generic IP, 9-4 filtering process, example, 9-1 data over voice bearer service call, 4-8, 6-3, 7-5 filters, configuring, 9-1 default router address, 3-12 FirstGear Destination field, TCP/IP Filter Rule menu, 9-5 advanced setup options, 5-9 Destination IP Address field, Add/Modify Static Route description, 1-2 tab, 5-27 for configuration, 1-5, 4-1...
Page 207 Internet, accessing, 6-2 leased line, 6-3 IP address, 3-5 LEDs description, 2-3 IP Address Supplied By field, Default Dial-in Setup, troubleshooting, 12-2 Length field, Generic Filter Rule menu, 9-6 IP address, static, 6-3 Local IP Address field, LAN menu tab, 5-17 IP addresses and NAT, 1-11 Local Netmask field, LAN menu tab, 5-17...
Page 208 Remote Node Setup, 7-2 System Security, 4-17 Offset field, Generic Filter Rule menu, 9-6 System Security - Change Password, 4-17 System Status, 11-1 Outgoing Authentication field, Remote Node tab, 5-21 TCP/IP Filter Rule, 9-4 Outgoing field, Remote Node Profile menu, 7-4 Manager password, 11-17 Outgoing Login Name field, Remote Node menu tab, Manual Call field, Diagnostic menu, 11-9...
Page 209 protocols Address Resolution, 1-12 security, 1-2, 1-4, 4-17 Bandwidth Allocation Control, 7-8 DHCP, 1-4 serial cable, 2-4 Internet, 1-4 serial port, connecting to, 3-6 Multilink, 7-8 Service Profile Identifier field, 5-3 Routing Information, 1-4, 1-6 Session Options field support, 1-2 Default Dial-in Setup, 8-4 TCP/IP, 11-10, 12-6 Remote Node Profile menu, 7-5...
Page 210 TCP Estab field, TCP/IP Filter Rule menu, 9-5 UNIX system, using to configure, 1-5, 3-6, 4-1 TCP/IP User Name field, Edit Dial-in User, 8-6 configuration, testing, 11-8 configuring, 3-1 network, troubleshooting, 12-4 Protocol, 11-10, 12-6 Value field, Generic Filter Rule menu, 9-7 requirements, 2-2 using with LAN-to-LAN, 7-1 TCP/IP Detail tab fields, 5-24...

NETGEAR RT338 Reference Manual

Preface

Chapter 1 Introduction

Chapter 2 Installing and Connecting the Router

Chapter 3 Preparing Your Network

Chapter 4 Initial Router Configuration

Chapter 5 Using Firstgear to Configure Internet Access

Chapter 6 Using the Manager Interface to Configure Internet Access

Chapter 7 Remote Node Configuration

Chapter 8 Configuring Dial-In Access

Chapter 9 Configuring Filters

Chapter 10 Advanced Phone Features

Chapter 11 System Maintenance

Chapter 12 Troubleshooting

Appendix A Technical Specifications

Appendix B Configuring Windows TCP/IP

Appendix C Ordering ISDN Lines

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NETGEAR RT338

Summary of Contents for NETGEAR RT338
