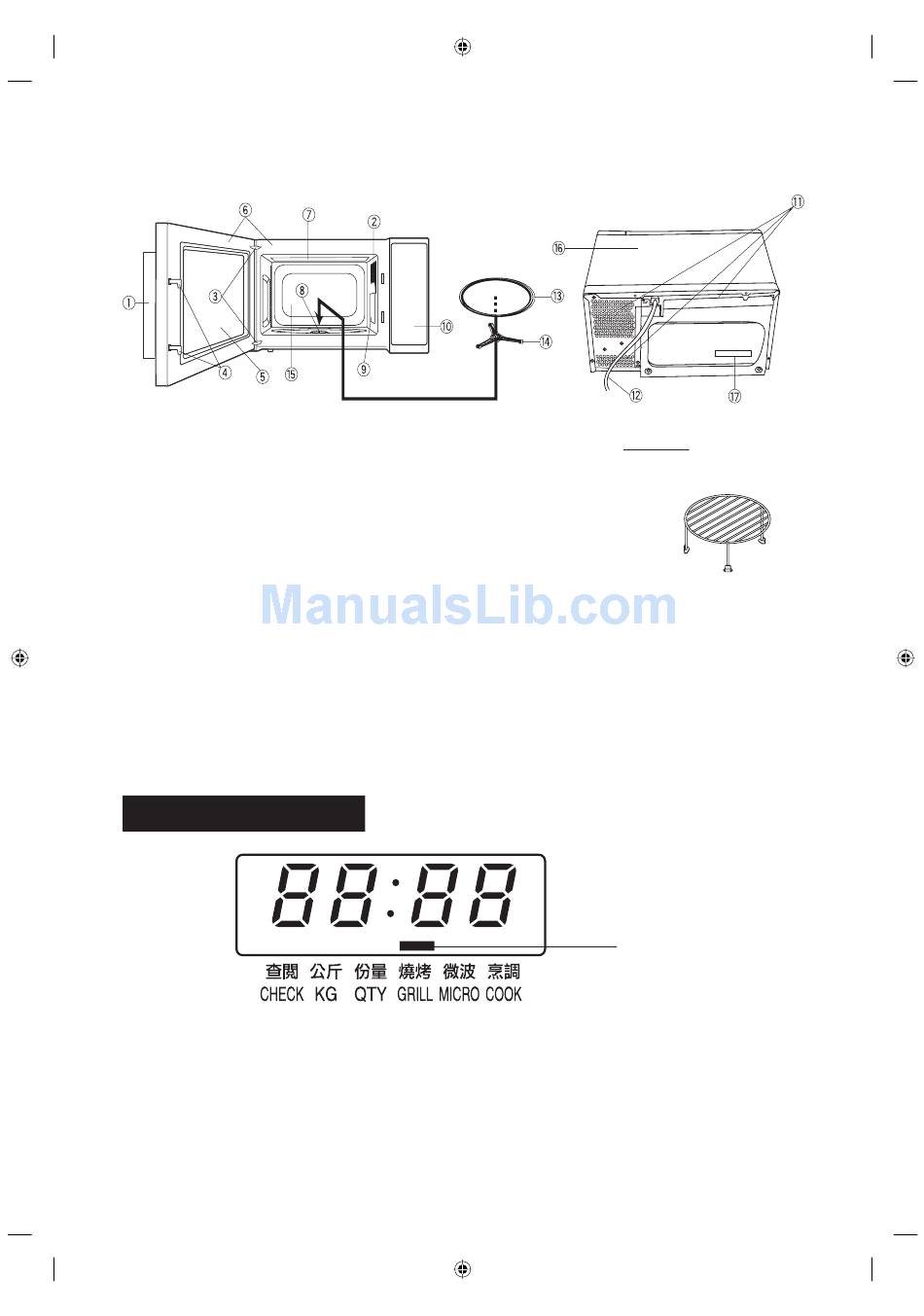

OVEN DIAGRAM

1. Door open handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing surfaces
7. Grill heater
8. Coupling
9. Waveguide cover

OPERATION OF TOUCH CONTROL PANEL

The operation of the oven is controlled by pressing the appropriate pads arranged on the surface of the
control panel.
An entry signal tone should be heard each time you press the control panel to make a correct entry.
In addition the oven will beep for approximately 2 seconds at the end of the cooking cycle, or 4 times when
a cooking procedure is required.
This appliance is not intended to be operated by means of an external timer or separate remote-control
system.

Control Panel Display

R-667R(S) [01 EN].indd 4 R-667R(S) [01 EN].indd 4
10. Control panel (See page E-5)
11. Ventilation openings
12. Power supply cord
13. Turntable
14. Roller stay
15. Oven cavity
16. Outer cabinet
17. Rating label
E – 4
Metal rack
The rack is for Grill, Grill Mix
and Auto Grill.
Indicators
