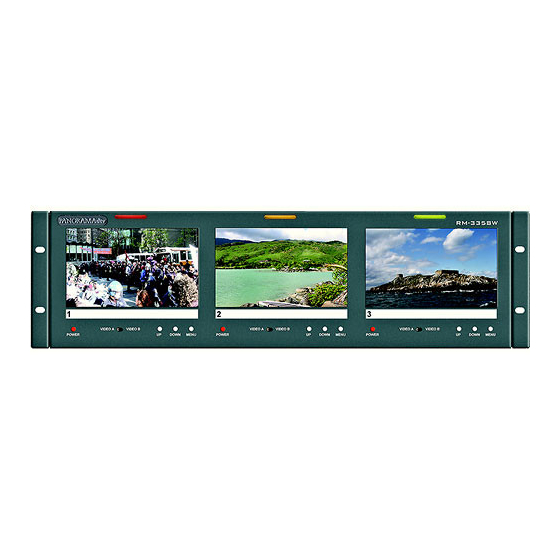

3U Triple LCD Video Monitor
with Three 5.8" (16:9) LCD Video Displays,
Six Composite Video Inputs (on BNC)
with A/B Switching, Six Loop-Through
Outputs (on BNC), and Option for
Title and Contents ....................................................................
Important Safety Instructions and Introduction ..........................................
Description, Features, Applications .....................................................
Specifications and Options .................................................................
Installation ..............................................................................................
Section 2: Operation ..................................................................
Front Panel Features ...............................................................................
FOn-Screen Diaply Controls Operation ..................................................
Rear Panel Features ................................................................................
Section 3: Technical Information .......................................
Tally Control Connector Wiring ...............................................................
© 2006 Wohler Technologies Inc. ALL rights reserved
RM-3358W
Document P/N 821575 Rev-C
Adding SDI Inputs
User Manual
CONTENTS
1
2
3
4
5
6
7
8
10
12
15
16
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wohler RM-3358W
Summary of Contents for Wohler RM-3358W
-
Page 1: Table Of Contents
Specifications and Options ..............Installation ....................Section 2: Operation ..............Front Panel Features ................FOn-Screen Diaply Controls Operation ..........Rear Panel Features ................Section 3: Technical Information ........Tally Control Connector Wiring ............... © 2006 Wohler Technologies Inc. ALL rights reserved... -
Page 2: Important Safety Instructions And Introduction
If you have questions or comments you may contact us at: Wohler Technologies, Inc. 31055 Huntwood Avenue Hayward, CA 94544 Phone: (510) 870-0810 Fax: (510) 870-0811 US Toll-Free: 1-888-596-4537 www.panoramadtv.com sales@panoramadtv.com © 2007 Wohler Technologies, Inc. ALL rights reserved... -
Page 3: Section 1: General Features And Specifications
RM-3358W User Manual P/N 821575 Rev-C Section 1 General Features and Specifications Description Features Applications Specifications Options © 2006 PANORAMAdtv ALL rights reserved... -
Page 4: Description, Features, Applications
The RM-3358W is ideal for confidence video monitoring of multiple video feeds for mobile trucks, news and transmission control rooms, duplication and post production applications. Built and rigorously tested in the USA, the RM-3358W is backed by a strong warranty and a “Satisfaction Guaranteed”... -
Page 5: Specifications And Options
RM-3358W User Manual P/N 821575 Rev-C Section 1: General Features and Specifications Specifications Video Input: Six composite (CVBS) video inputs (two per screen) with A/B select. Each screen has provisions for an optional input module as the "B" input. Video Input Termination:... -
Page 6: Installation
40 degrees Celsius (104 degrees Fahrenheit), adjacent devices can be rack mounted (or stacked) in proximity to the RM-3358W unit. If the above temperature is exceeded, allow a 1RU (1.75”/ 25mm) space above and below the unit for air circulation. -
Page 7: Section 2: Operation
RM-3358W User Manual P/N 821575 Rev-C Section 2 Operation Front Panel Features On-Screen Display Controls Operation Rear Panel Features © 2006 PANORAMAdtv ALL rights reserved... -
Page 8: Front Panel Features
Section 2: Operation Front Panel Features Please refer to Figure-2a on the following page to familiarize yourself with the front panel features of the RM-3358W unit. The following sections describe these functions and are referenced, by number, to Figure-2a. Power Button (1-3) These button switches (1-3) are used to cycle each individual LCD display ON/OFF. - Page 9 RM-3358W User Manual P/N 821575 Rev-C Section 2: Operation Figure-2a: Front Panel Features © 2006 PANORAMAdtv ALL rights reserved...
-
Page 10: Fon-Screen Diaply Controls Operation
RM-3358W User Manual P/N 821575 Rev-C Section 2: Operation On-Screen Display Controls Operation Display controls for each of the three 5.8" LCD Video Displays are viewed on-screen and set via the three buttons beneath the rspective display (See Item 3, page 8). Parameters are manipulated as described below: BRIGHTNESS Press the UP and DOWN buttons directly to increase and decrease the LCD display BRIGHTNESS. - Page 11 RM-3358W User Manual P/N 821575 Rev-C Section 2: Operation LCD Video Display On-Screen Controls (Continued) SYSTEM SETUP To enter the System Setup submenu, choose SYSTEM SETUP in the Main Menu, and press the MENU button. Main Menu System Setup Menu...
-
Page 12: Rear Panel Features
Rear Panel Features Please refer to Figure-2b on the following page to familiarize yourself with the rear panel features of the RM-3358W unit. The following sections describe these features and are referenced, by letter, to Figure-2b. See Figure-2c on page 10 for a top view of the RM-3358W showing rear panel connector clearance dimensions. - Page 13 RM-3358W User Manual P/N 821575 Rev-C Section 2: Operation Figure-2b: Rear Panel Features © 2006 PANORAMAdtv ALL rights reserved...
- Page 14 RM-3358W User Manual P/N 821575 Rev-C Section 2: Operation RMSDI Options installed at channels 1 and 2. Figure-2c: RM-3358W Top View (Depth and Width Clearance Dimensions) © 2006 PANORAMAdtv ALL rights reserved...
-
Page 15: Section 3: Technical Information
RM-3358W User Manual P/N 821575 Rev-C Section 3 Technical Information Tally Control Connector Wiring NOTE: Wohler Technologies, Inc. PCB layout and schematic support documentation is available upon request. 31055 Huntwood Avenue Hayward, CA 94544 PANORAMAdtv Phone: (510) 870-0810 Fax: (510) 870-0811... -
Page 16: Tally Control Connector Wiring
RM-3358W User Manual P/N 821575 Rev-C Section 3: Technical Information Tally Control Connector Wiring A front panel tally LED is associated with each LCD monitor. Interface is provided to the LEDs via the Tally Control Connector on the rear panel (Item E, page 12). Tri-color (RED, GREEN, and YELLOW) tally indications are possible by activating the red and green LED sections simultaneously. - Page 17 RM-3358W User Manual P/N 821575 Rev-C Section 3: Technical Information Tally Control Connector Wiring CHANNEL DRY CLOSURE USING INTERNAL POWER SOURCE (EITHER/OR BOTH LEDS ON IS OK, BOTH = YELLOW) DB25 MALE CHANNEL POSITIVE TRUE LOGIC DRIVE USING EXTERNAL POWER 5 - 12VDC...
- Page 18 RM-3358W User Manual P/N 821575 Rev-C PANORAMAdtv Wohler Technologies, Inc. 31055 Huntwood Avenue 31055 Huntwood Avenue Hayward, CA 94544 Hayward, CA 94544 1-888-596-4537 Phone: (510) 870-0810 Fax: (510) 870-0811 Fax: (510) 870-0811 US Toll-Free: 1-888-596-4537 web: www.panoramadtv.com www.panoramadtv.com sales@panoramadtv.com e-mail: sales@panoramadtv.com...
