Wohler RM-2443W-2C User Manual

Rm-2443w series 2ru, 4-screen, 4.3” hd/sd-sdi and cvbs audio/video monitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

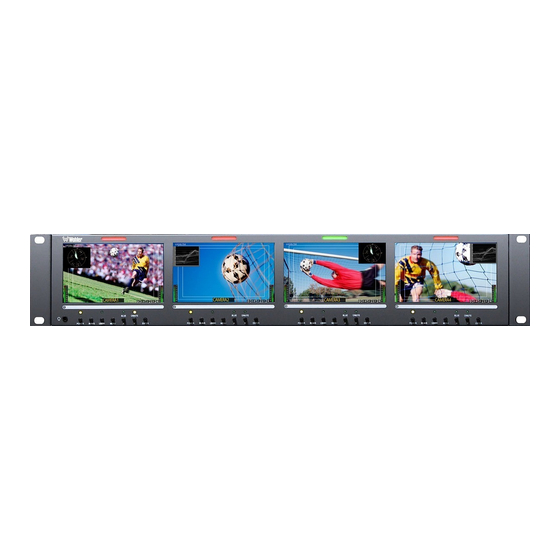

RM-2443W Series
• RM-2443W-2C
• RM-2443W-HD
• RM-2443W-2HD
2RU, 4-Screen, 4.3" HD/SD-SDI and
CVBS Audio/Video Monitors
User Guide
Part Number 821712, Revision C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RM-2443W-2C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wohler RM-2443W-2C

Summary of Contents for Wohler RM-2443W-2C

  • Page 1 RM-2443W Series • RM-2443W-2C • RM-2443W-HD • RM-2443W-2HD 2RU, 4-Screen, 4.3” HD/SD-SDI and CVBS Audio/Video Monitors User Guide Part Number 821712, Revision C...

  • Page 2: Customer Support

    In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    RM-2443W Series User Guide Introduction Overview These 2RU rack-mounted audio/video monitors set a new standard in LCD monitors for broadcast and professional video applications. The monitors have 480 x 272 resolution. All three have anti-glare TFT screens, and full digital signal processing support: HD-SDI and analog composite video standards.

  • Page 4: Safety Instructions

    R M - 2 4 4 3 W Se r i e s U s e r G u i d e S a f e t y I n s tr u c ti o n s Safety Instructions Read, keep, and follow all of these instructions;...

  • Page 5: Installation Recommendations

    RM-2443W Series User Guide I n s ta l la t i o n R e c o m me n d a t io n s Installation Recommendations Mounting The unit is designed to install into a standard 19” rack. The unit should be mounted at approximately eye level for optimum visual observation.

  • Page 6: Features

    R M - 2 4 4 3 W Se r i e s U s e r G u i d e F e a t u r e s Features Common Features All three audio/video monitors are designed for confidence monitoring of video broadcast signal (CVBS) video sources.
  • Page 7 RM-2443W Series User Guide F e a t u r e s • Local control (via menu operation) for all functions including: • Blue gun as mono • Safe area • Safe title • Center markers • H/V delay • Monochrome display mode •...

  • Page 8: Specifications

    HD/SDI-SDI source. The 2C represents the two composite analog inputs on the RM-2443W-2C and has no outputs. Also, the 2C model has no audio capabilities. Specifications The specifications of the audio/video monitors are listed below.
  • Page 9 RM-2443W Series User Guide S p e ci f i c a t i o n s Table 1–1 RM-2443W Series Specifications (Continued) RM-2443W-2HD RM-2443W-HD RM-2443W-2C Specification Values Values Values Resolution (Dots, H x V) 480 x 272 Dot Pitch (H x V, mm) 0.1125 x 0.1095...

  • Page 10: Front Panel Controls

    R M - 2 4 4 3 W Se r i e s U s e r G u i d e F r o n t P a n e l C o n t r o l s Table 1–2 Acceptable Signal Formats for the RM-2443W Series Monitors (Continued)
  • Page 11 RM-2443W Series User Guide F r o n t P a n e l C o n t r o l s • Power : Each of the four Power buttons turn the associated LCD screen on and off; the LED glows green to indicate on. When the indicator above the power switch is green then the unit is receiving power.
  • Page 12 When the OSD Menu is active, this button serves as the down (∨) navigation button in the menu. (The Mute has no function on the -2C model.) Figure 1–3 RM-2443W-2HD and RM-2443W-2C Power Enter Mute In A/B Blue...

  • Page 13: Rear Panel Connectors

    RM-2443W Series User Guide R e a r P a n e l C o n n e c t o r s • Enter : When the OSD Menu is displayed, pressing this button enters items and accepts selections in the .
  • Page 14 HD/SD-SDI or analog CVBS video signals. The inputs comply with SMPTE259M, SMPTE292M/ITU-R BT601. Composite video inputs comply with SMPTE-170M. Note: The input connectors of the RM-2443W-2C will only accept CVBS signal types. • RS-485 I/O (on RJ-45): These two ports are used for system software upgrades and dynamic IMD controls.

  • Page 15: On-Screen Display Features

    Rear Panel Tally Lights RS-485 I/O* Power HD/SD-SDI Inputs *The RS-485 ports are not available on the RM-2443W-2C. On-Screen Display Features Some of the buttons and OSD Menu control the display of features on the screen as shown in Figure 1–8 on the next page.

  • Page 16: Using The Osd Menu

    R M - 2 4 4 3 W Se r i e s U s e r G u i d e U s i n g th e O S D M e n u • Time Code : The de-embedded time code from the HD/SD-SDI source displays in the bottom right corner (except on the -2C model).
  • Page 17 RM-2443W Series User Guide U s i n g t h e O S D M e n u Use the Down buttons to navigate through the seven sub- menu icons. The sub-menus are: Table 1–4 Menus for the RM-2443W Series Monitors HD and 2HD STATUS (No configurable options)

  • Page 18: Menu Parameters

    R M - 2 4 4 3 W Se r i e s U s e r G u i d e U s i n g th e O S D M e n u The OSD Menu for the HD and 2HD Models Table 1–5 HD and 2HD OSD Menu Structure Default...
  • Page 19 RM-2443W Series User Guide U s i n g t h e O S D M e n u Table 1–5 HD and 2HD OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value • MET 1 • MET 2 MON SOURCE MET 1 •...
  • Page 20 R M - 2 4 4 3 W Se r i e s U s e r G u i d e U s i n g th e O S D M e n u Table 1–5 HD and 2HD OSD Menu Structure (Continued) Default Menu Parameters...
  • Page 21 RM-2443W Series User Guide U s i n g t h e O S D M e n u Table 1–5 HD and 2HD OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value • • GREEN COLOR WHITE • YELLOW •...
  • Page 22 R M - 2 4 4 3 W Se r i e s U s e r G u i d e U s i n g th e O S D M e n u Table 1–5 HD and 2HD OSD Menu Structure (Continued) Default Menu Parameters...
  • Page 23 RM-2443W Series User Guide U s i n g t h e O S D M e n u The OSD Menu for the RM-2443W-2C Table 1–6 2C OSD Menu Structure Default Menu Parameters Domain Range Value BRIGHTNESS -116 through 1...
  • Page 24 R M - 2 4 4 3 W Se r i e s U s e r G u i d e U s i n g th e O S D M e n u Table 1–6 2C OSD Menu Structure (Continued) Default Menu Parameters...

  • Page 25: Programming The Hot Key Buttons

    RM-2443W Series User Guide P r o g r a m m i n g t h e H o t K e y B u t to n s Programming the Hot Key Buttons The Enter Button When the OSD Menu is not displayed, you can press the Enter...

  • Page 26: Technical Functional Overview

    R M - 2 4 4 3 W Se r i e s U s e r G u i d e T e c h n i c a l F u n c t i o n a l O v e r v i e w Use the Down buttons to select the following eight...
  • Page 27 RM-2443W Series User Guide T e c h n i c a l F u n c t i o n a l O v e r vi e w Figure 1–9 RM-2443W-HD Block Diagram Tally Light 1 Tally Interface LCD 1 Controls 1 4.3”...
  • Page 28 R M - 2 4 4 3 W Se r i e s U s e r G u i d e T e c h n i c a l F u n c t i o n a l O v e r v i e w Figure 1–10 RM-2443W-2HD Block Diagram Tally Light 1...

  • Page 29: Led Tally

    RM-2443W Series User Guide T e c h n i c a l F u n c t i o n a l O v e r vi e w Figure 1–11 RM-2443W-2C Block Diagram LED Tally Interface 8 2 1 7 1 2 : R M - 2 4 4 3 W S e r i e s U s e r G u i d e ©...
