- Page 1 RM-2350W-HD HD/SD-SDI 3-Screen Audio/Video Monitor User Guide Part Number 821193, Revision C...
- Page 2 In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.
-
Page 3: Table Of Contents

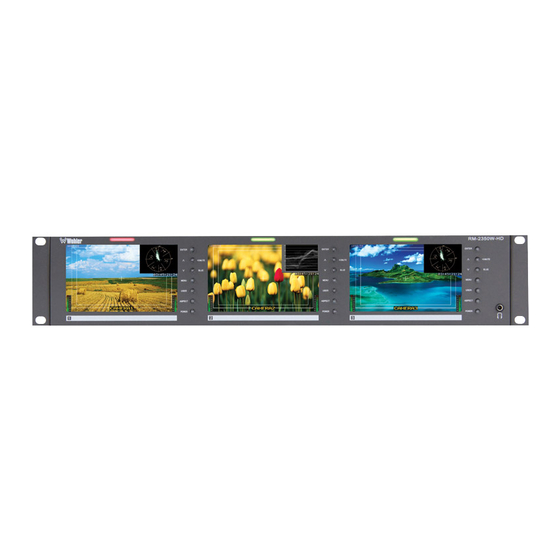

User Guide Introduction Overview The 2U rack-mounted RM-2350W-HD sets a new standard in LCD monitors for broadcast and professional video applications. It provides 800 x 480 resolution, TFT screens, and supports full digital signal processing: HD/SD-SDI and analog composite video standards. All... -
Page 4: Safety Instructions
RM - 2 3 5 0W - H D U s e r G u id e Sa f e t y I n st ru c t i on s Safety Instructions Read, keep, and follow all of these instructions; heed all warnings. Do not use this equipment near water. -
Page 5: Installation Recommendations
RM-2350W-HD User Guide I n s t a l la t io n R e c om m e n d a t io n s Installation Recommendations Mounting The unit is designed to install into a standard 19” rack. The unit should be mounted at approximately ear level for optimum frequency response and at eye level for optimum visual observation. -
Page 6: Features
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Features The RM-2350W-HD audio/video monitor is designed for confidence monitoring of HD/SD-SDI and composite video broadcast signal (CVBS) video sources. Input signals are automatically detected and accommodated. - Page 7 RM-2350W-HD User Guide F ea t u r e s • Three LCDs, 5.0” diagonal each • Selectable 16:9 or 4:3 screen aspects for on screen video • Rack mount mechanical design with vertical tilt • Three multi-rate inputs (one per screen) accepting composite...
-
Page 8: Specifications
On Screen Display (OSD) on/off • Color bar on/off • Audio monitor display on/off • Area marker toggle Specifications The specifications of the RM-2350W-HD are listed below. Table 1–1 RM-2350W-HD Specifications Specification Domain Range Number of Screens Display 5.0” diagonal... -
Page 9: Front Panel Controls
RM-2350W-HD User Guide F r on t Pa n e l C o n t r o ls Table 1–1 RM-2350W-HD Specifications Specification Domain Range • HD/SD-SDI, Analog Composite (1 BNC per LCD Screen) Inputs • Analog Audio (2 RCA per LCD screen) •... - Page 10 RM - 2 3 5 0W - H D U s e r G u id e F r o nt P a n el C o n t r o ls Figure 1–1 RM-2350W-HD Front Panel Tally Lights headphone Jack Enter ∧/...
-
Page 11: Rear Panel Connectors
RM-2350W-HD User Guide R e a r P a ne l C o n n e ct o r s • Aspect: The button toggles the aspect ratio between 4:3 Aspect and 16:9 for the associated LCD screen when the input signal is SD- SDI. - Page 12 RM - 2 3 5 0W - H D U s e r G u id e Re a r Pa n e l C o n ne c t o r s Figure 1–3 RS-485 I/O Pin Out Table 1–2 RS-485 Pin Out RS485 In terminal RS485 Out Terminal...
-
Page 13: On-Screen Display Features
RM-2350W-HD User Guide O n - S cr e e n D is p l a y F ea t u r e s On-Screen Display Features Some of the buttons and OSD Menu control the display of features on the screen as shown in Figure 1–5... - Page 14 RM - 2 3 5 0W - H D U s e r G u id e U s in g t he O S D M e nu Us the buttons to navigate through the seven sub- Down menu icons. The sub-menus are: (No configurable options) STATUS VIDEO...
- Page 15 RM-2350W-HD User Guide U s i ng t h e O S D M e n u Table 1–3 OSD Menu Structure Default Menu Parameters Domain Range Value FORMAT COLOR TEMP MON SOURCE UNDER Not configurable, signal SCAN STATUS SCAN...
- Page 16 RM - 2 3 5 0W - H D U s e r G u id e U s in g t he O S D M e nu Table 1–3 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value Not configurable, signal METER SIZE...
- Page 17 RM-2350W-HD User Guide U s i ng t h e O S D M e n u Table 1–3 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value • VECTOR • , or WFM/VT DISP • TC DISP UMD DISP OSD TLY DISP •...
- Page 18 RM - 2 3 5 0W - H D U s e r G u id e U s in g t he O S D M e nu Table 1–3 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value UMD BAUD RATE •...
-
Page 19: Programming The Hot Key Buttons
RM-2350W-HD User Guide P r o g r a m m i ng t h e H o t K e y B u t t o n s Table 1–3 OSD Menu Structure (Continued) Default Menu Parameters Domain Range Value •... -
Page 20: Technical Functional Overview
Technical Functional Overview Figure 1–6 on page 19 illustrates the overall functionality of the RM-2350W-HD. 8 21 19 3 : RM -2 35 0W -HD U s e r G ui d e © 2 01 3 Woh le r Te ch no lo g ie s, Inc . A ll ri g ht s re s e r v ed . - Page 21 RM-2350W-HD User Guide Te c h n ic a l F u nc t i on a l O v e rv ie w Figure 1–6 Block Diagram 8 21 19 3: R M- 23 50 W- HD U se r G u id e...
