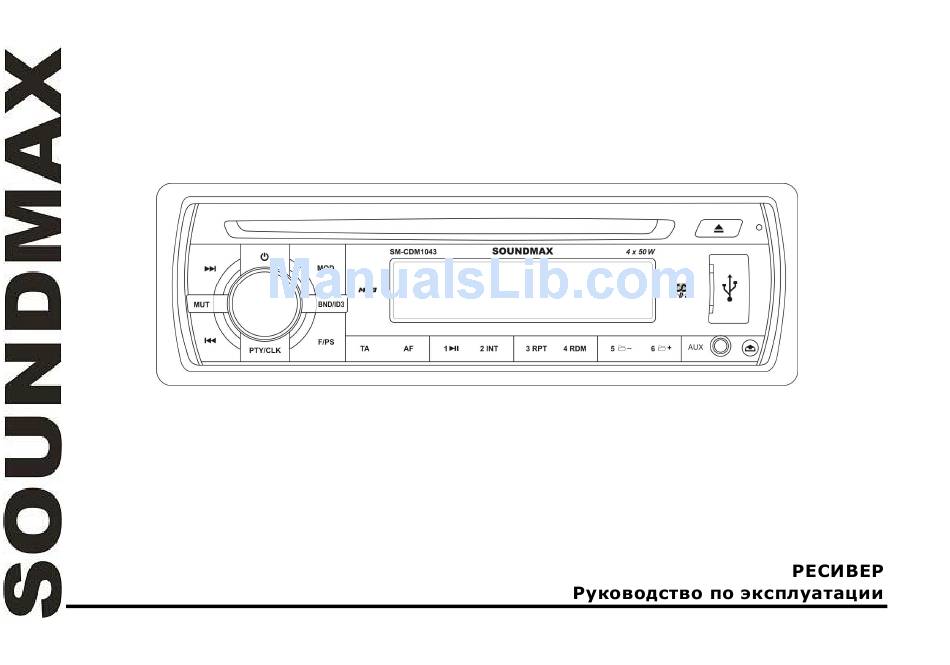

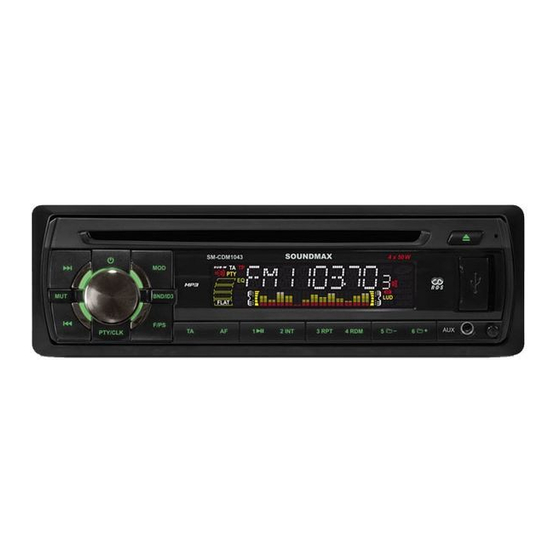

  • Page 1 SM-CDM1043 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS....................................2 IMPORTANT SAFEGUARDS ..................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories 1. Receiver 1 pc 2. Front panel 1 pc 3. Protective case 1 pc 4. ISO connector 1 pc 5. Mounting parts: Nut 5 mm 1 pc Spring washer 2 pcs Plain washer 2 pcs Screw M5x25 mm 1 pc Screw 1 pc Metal strap...

  • Page 5: Installation

    Installation Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.

  • Page 8: Electrical Connection

    Electrical connection Wiring diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibited to make the conductors of auto antenna and ground touch with each other.
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 10: Control Elements

    Control elements Front panel 1. MUT button 2. NEXT button 3. POWER button 4. SEL button/VOLUME knob 5. MOD button 6. BND/SUB button 7. Disc slot 8. LCD display 9. EJECT button 10. USB port 11. PREVIOUS button 12. PTY/CLK button 13.
  • Page 11 Inner panel Press RELEASE button to detach the front panel. 1. Disc slot 2. SD/MMC memory card slot 3. Panel status indicator 4. RESET button (hole) 5. Connector Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator flashes when you remove the panel.

  • Page 12: Lcd Layout

    LCD layout 1. Subwoofer indicator (not active) 2. PTY function indicator 3. TA function indicator 4. TP function indicator 5. AF function indicator 6. Equalizer indicator 7. Digit display (radio frequency, track number, etc.) 8. MP3 playback 9. WMA playback 10.

  • Page 13: General Operations

    General operations Turning on/off Press any button (except OPEN and EJECT button) to turn the unit on. The display will show a message WELCOME to indicate it is ready to use. Press and hold POWER button to turn the unit off. Mode selecting Press MOD button to select between AUX, TUNER, S-CDP (disc), USB and SD/MMC modes.
  • Page 14 Loudness Press SEL button repeatedly until the display shows LOUD ON (LOUD OFF). Rotate VOLUME knob to select between LOUD ON/LOUD OFF. LOUD function is to emphasize the bass output; the word LOUD ON indicates that the LOUD mode is on. Clock setting The clock can be set anytime when the power is on.

  • Page 15: Radio Operations

    Radio operations Band select Press BND/ID3 button repeatedly to select your desired radio band during Radio mode: FM1, FM2, FM3, AM1 (MW1), AM2 (MW2). In each set of the bands you can store up to 6 preset stations, making total 30 preset memory stations.
  • Page 16 strong radio signal) can be played. RDS function RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. AF (Alternative Frequencies) function Press AF button on the panel to turn the AF function on or off. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with a stronger signal, so that you do not have to retune the stations when driving between different transmitter coverage areas.
  • Page 17 Button Music type programs Speech time programs Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics, Other Culture, Science, Varied Jazz, Country Weather, Finance, Children Nation, Oldies Social, Religion, Phone IN Folk Travel, Leisure, Document When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

  • Page 18: Disc Operations

    Disc operations Insert/Eject discs Insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit, even when it is off or in radio mode. For MP3 discs, MP3 symbol will be displayed as the disc is loaded. The first file in the root folder will be played.
  • Page 19 Scanning tracks Press 2/INT button to play the first 15 seconds of each track. Press this button again to resume playback. Repeat Press 3/RPT button to repeat the same track continuously. Press this button again to stop repeating. Random playback Press 4/RDM button to play all the tracks in random order.

  • Page 20: Usb/Sd/Mmc Operation

    USB/SD/MMC operation USB/SD/MMC notes USB format supports 2.0. Capacity: up to 2 Gb. For correct and satisfactory operation, licensed SD/MMC memory cards of famous brands should be used with this unit. Avoid using memory cards of unknown brands. Capacity: up to 2 Gb. Inserting SD/MMC card/USB device Insert an MMC/SD card or a USB device into MMC/SD slot or USB slot.

  • Page 21: Handling Compact Discs

    Handling compact discs Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 22: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 23: Specification

    Specification General Power supply 12 V DC Maximum power output 4 x 50 W Fuse 5 A & 10 A Dimensions/Weight 178 x 51 x 178 mm/1.5 kg Temperature range - +60 Electronic shock protection 40 sec. ESP for CD/120 sec. for MP3 Installation angle –...
