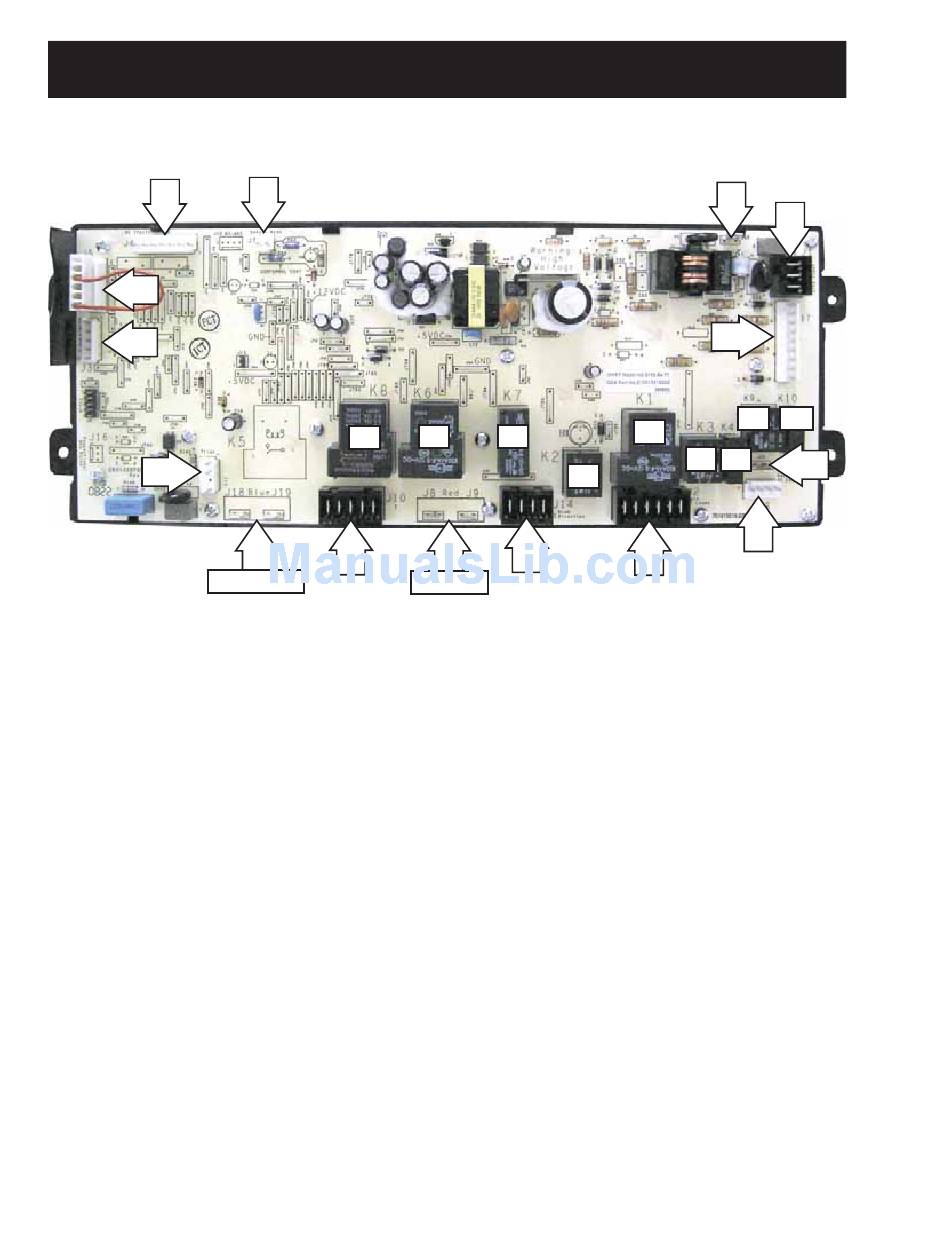

Power Board Connector Locator View

J4
J5
J3
J11
J18 and J19
J1 - L1 and Neutral Supply to Power Board
J2 - Drum Motor
J3 - Washer/Dryer Communication Cable
J4 - 5 VDC, Hall Effect Input, Logic Ground, Outlet
Control Thermistor, Inlet Control Thermistor
J5 - Model Selector
J7 - Sensor Rods
J8 and J9 - Rack Dry Circuit Selection
J10 - Rack Dry Mode Selection
J11 - Triac
J13 - Drum Lamp, Half Power (Gas)
J14 - Drum Direction
J17 - AC Inputs from Drum Motor and Power Board
J18 and J19 - Tumble Hold-Up (Gas)
J20 - Steam Generator and Interlock Relay
J48 - Ground
J7
K6
K8
J10
J8 and J9
– 10 –
K1
K7
K2
J14
J2
K1 - Drum Motor Relay
K2 - Blower Motor Relay
K3 - Gas Ignitor Shut-Off and 2nd Stage Relay
K4 - Half-Power 1st Stage Relay (Gas)
K6 - Rack Dry Selection Relay
K7 - Drum Motor Reversing Relay
K8 - Rack Dry Circuit Mode Relay
K9 - Steam Relay
K10 - Lamp Relay
J48
J1
J17
K9 K10
K3 K4
J20
J13
(Continued Next Page)
