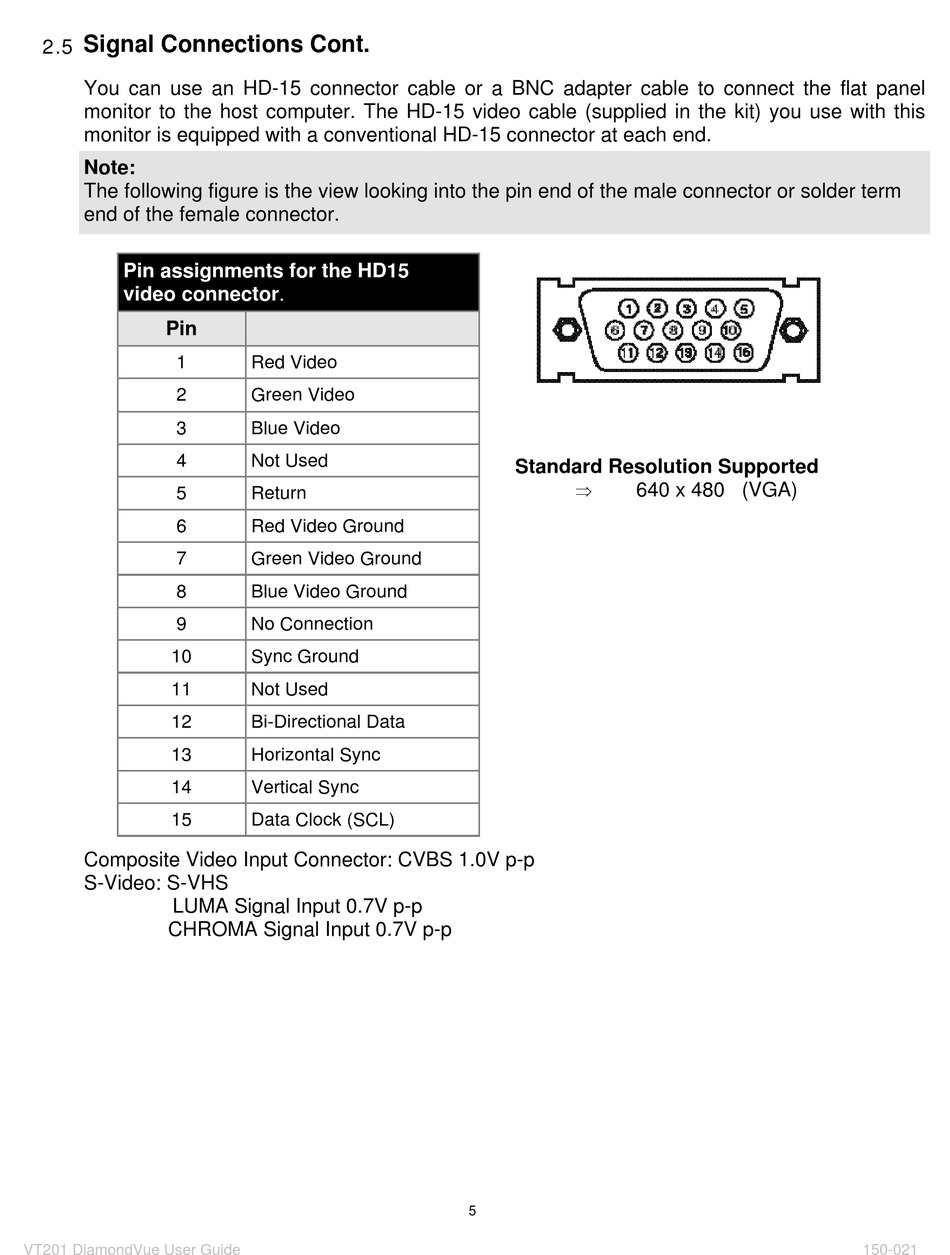

Signal Connections Cont.
You can use an HD-15 connector cable or a BNC adapter cable to connect the flat panel
monitor to the host computer. The HD-15 video cable (supplied in the kit) you use with this
monitor is equipped with a conventional HD-15 connector at each end.
Note:
The following figure is the view looking into the pin end of the male connector or solder term
end of the female connector.
Pin assignments for the HD15
video connector.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Composite Video Input Connector: CVBS 1.0V p-p
S-Video: S-VHS
LUMA Signal Input 0.7V p-p
CHROMA Signal Input 0.7V p-p
VT201 DiamondVue User Guide
Red Video
Green Video
Blue Video
Not Used
Return
Red Video Ground
Green Video Ground
Blue Video Ground
No Connection
Sync Ground
Not Used
Bi-Directional Data
Horizontal Sync
Vertical Sync
Data Clock (SCL)
Standard Resolution Supported

