Section
2

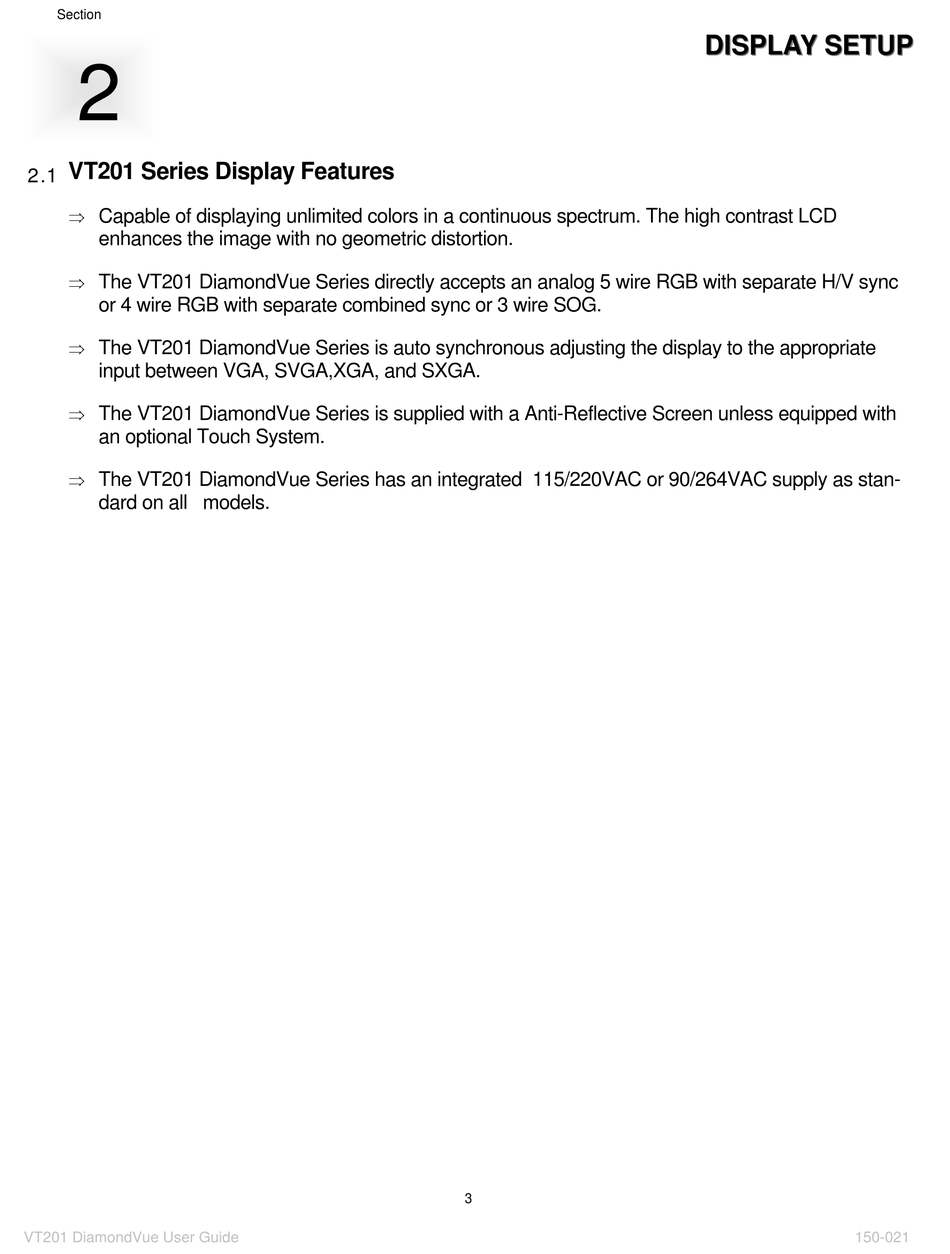

2.1 VT201 Series Display Features

Capable of displaying unlimited colors in a continuous spectrum. The high contrast LCD
enhances the image with no geometric distortion.

The VT201 DiamondVue Series directly accepts an analog 5 wire RGB with separate H/V sync
or 4 wire RGB with separate combined sync or 3 wire SOG.

The VT201 DiamondVue Series is auto synchronous adjusting the display to the appropriate
input between VGA, SVGA,XGA, and SXGA.

The VT201 DiamondVue Series is supplied with a Anti-Reflective Screen unless equipped with
an optional Touch System.

The VT201 DiamondVue Series has an integrated 115/220VAC or 90/264VAC supply as stan-
dard on all models.
