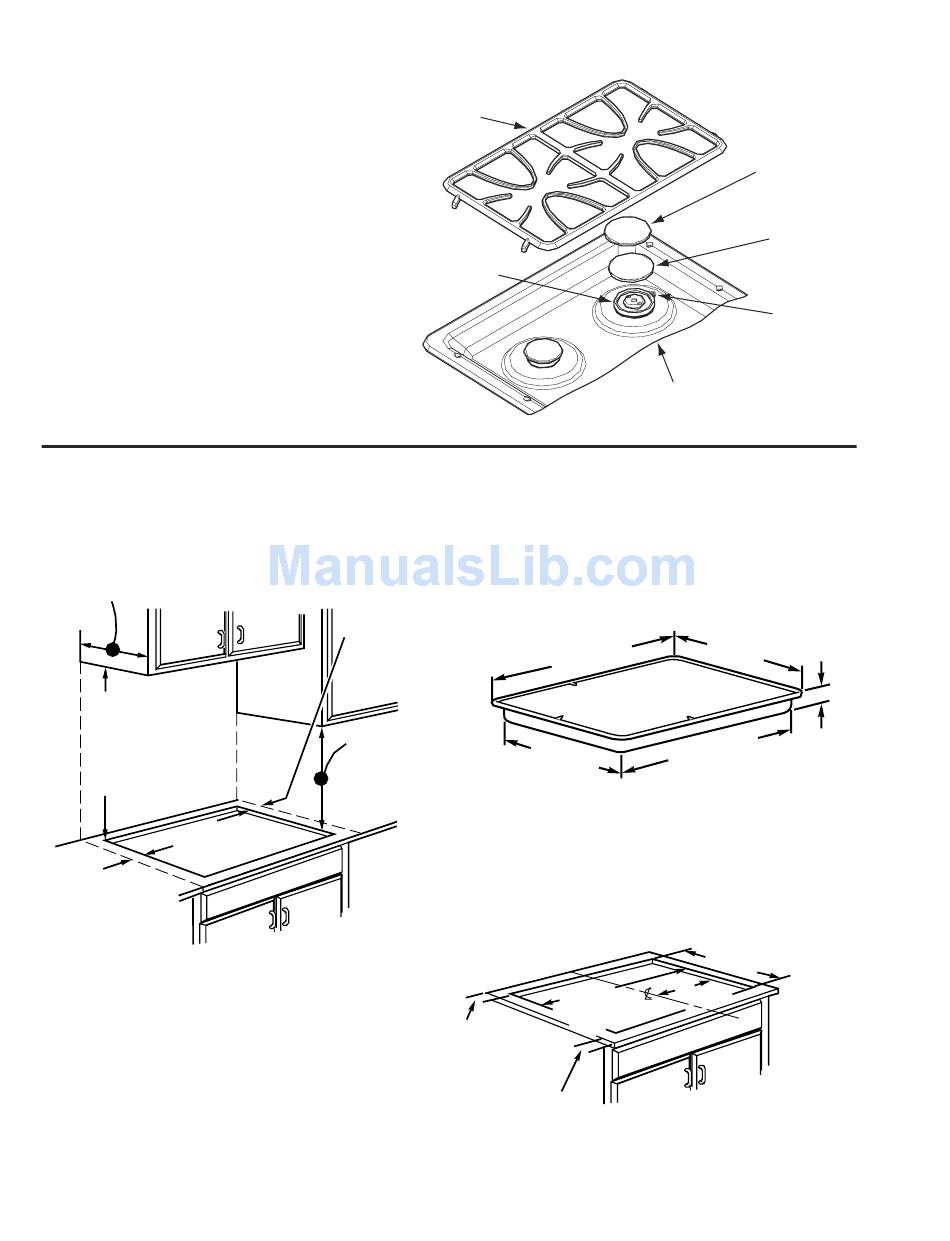

30-in. Gas Cooktop with Sealed
(Spill-Proof) Burners
These gas cooktops are only 3 in. deep and
can be installed over cabinet drawers.
All models are shipped for natural gas
operation. They can be converted for
liquid propane use.
Use these gas cooktops with any 30-in. or
wider exhaust hood if desired. No special
ventilation is required.
The following MINIMUM clearance
dimensions must be maintained.
13" MAX. Depth
of unprotected
overhead cabinets
30" MIN.
clearance from
countertop to
unprotected
unprotected
overhead surface
2" MIN.
clearance from
cutout to side
wall on the left
of the unit
BURNER
GRATE
BURNER
BASE
Overall Cooktop Dimensions
2" MIN.
clearance from
cutout to side
wall on the right
of the unit
18" MIN.
height from
countertop to
nearest cabinet on
either side of unit
Cutout Dimensions of the Cooktop
GEA00742
2 1/4" Min.
Between cutout
and the wall behind
the cooktop
2 1/2"Min.
from front edge
of cutout
and front edge
of countertop
– 4 –
BURNER BOX
BOTTOM
30"
COOKTOP
28 1/4"
19 3/8"
14 1/4"
28 1/2"
length of
cut
BURNER
CAP
BURNER
HEAD
SPARK
IGNITER
GEA00741
21"
3"
GEA00743
19 5/8" width of cut
GEA00744
