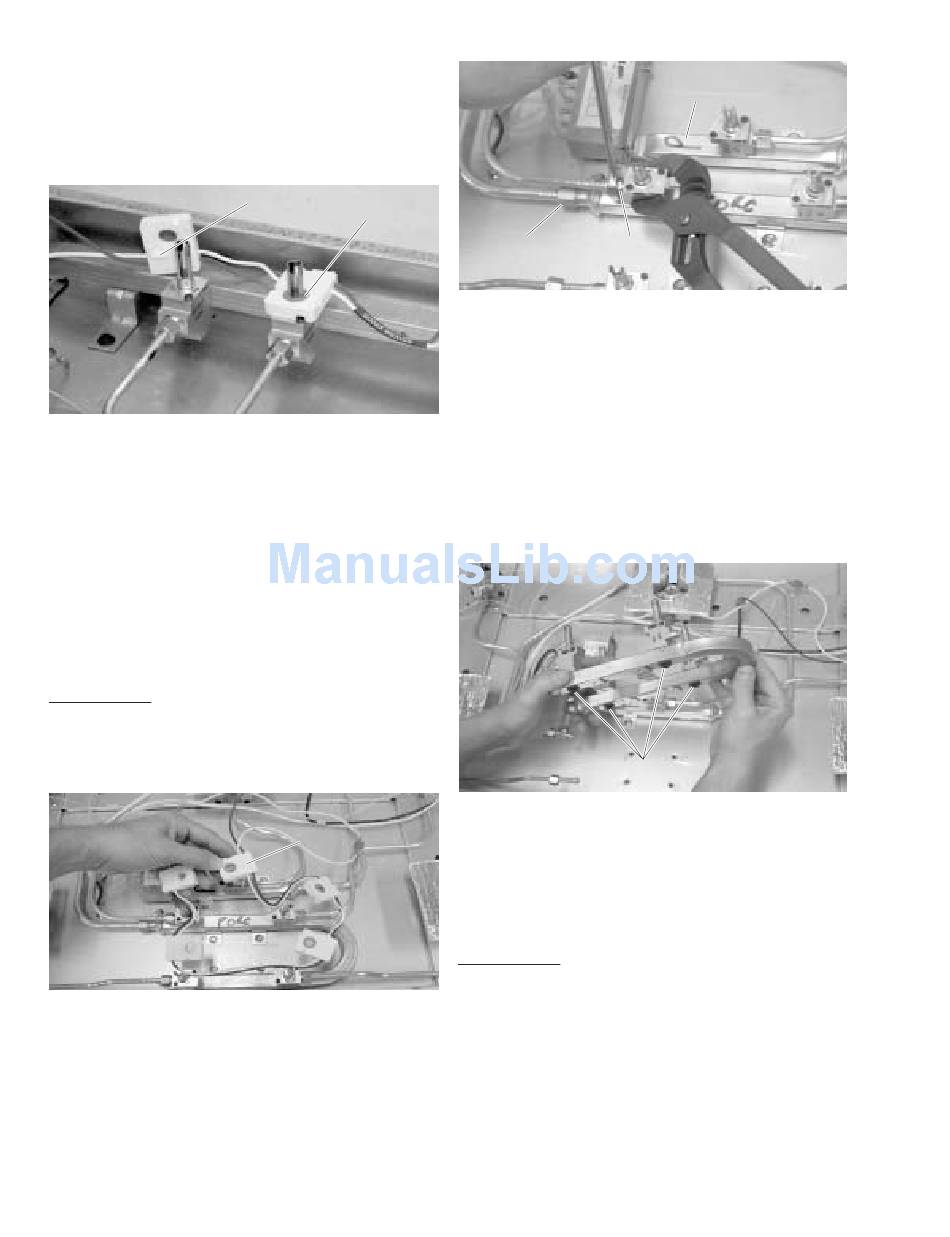

Igniter Switch Removal

1. Remove the burners and top (see Burner and
Top Removal).
2. Unplug the wires to the igniter switch.
Note: On 36-in. models, note the color and posi-
tion of switches.
3. Lift each igniter switch off the valve stem.
Note: When replacing the switch, replace the
entire harness with colors in same positions. The
bottom of the switch is molded to conform to the
top of the valve for a locked-in fit.

Valve Removal

36-in. Models

1. Remove the burners and top (see Burner and
Top Removal).
2. Lift the igniter switches off the valve stems.
(Note the color and positions of the switches.)
Molded
Molded
Molded
Color
Color
Lock Fit
Lock Fit
Indicator
Indicator
GEA00777
Igniter
Igniter
Switch
Switch
Switch
GEA00778
– 18 –
5/8-in. Nut
5/8-in. Nut
5/8-in. Nut
1/2-in. Nut
1/2-in. Nut
1/2-in. Nut
3. Remove the 1/2-in. nut on the gas line to the
valve and remove the gas line.
4. Remove the 5/8-in. nut on the gas line to the
horseshoe-shaped manifold or the 9/16-in. nut
on the gas line to the straight manifold and
remove the gas line.
5. Remove the 1/4-in. screws and the manifold
from the burner box.
1/4-in. Screws
1/4-in. Screws
1/4-in. Screws
6. Remove the 1/4-in. screw from the manifold
and remove the valve.
Valve Removal
30-in. Models
1. Remove the burners and top (see Burner and
Top Removal).
Straight
Straight
Straight
Manifold
Manifold
Manifold
GEA00779
GEA00780
