2. Lift the igniter switch off the valve stem.
1/2-in. Nut
1/2-in. Nut
3. Remove the 1/2-in. nut on the gas line to the
valve and remove the gas line.
4. Loosen the 1/4-in. screw from the manifold
until the valve can be removed.

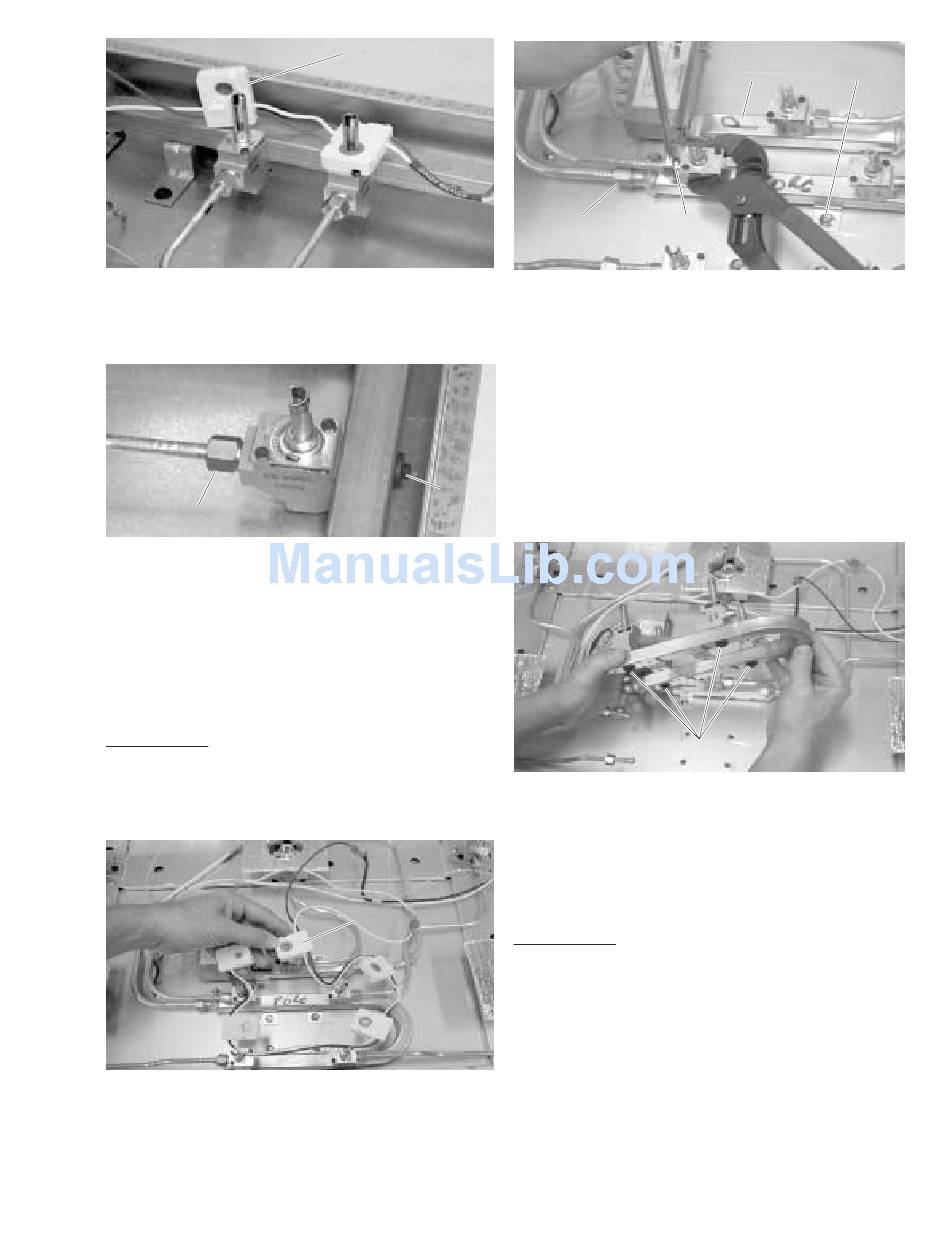

Manifold Removal

36-in. Models

1. Remove the burners and top (see Burner and
Top Removal).
2. Lift the igniter switches off the valve stems.
(Note the color and positions of the switches.)
Igniter Switch
Igniter Switch
GEA00840
3. Remove the 1/2-in. nuts (5) on the gas lines to
4. Remove the 5/8-in. nut on the gas line to the
5. Remove the 1/4-in. screws (6) and 2 manifolds
1/4-in.
1/4-in.
Screw
Screw
GEA00781
6. Remove the 1/4-in. screws (5) from 2 mani-
Igniter
Igniter
Manifold Removal
Switch
Switch
30-in. Models
1. Remove the burners and top (see Burner and
GEA00778
– 19 –
Manifold
Manifold
5/8-in. Nut
5/8-in. Nut
1/2-in. Nut
1/2-in. Nut
the valves and remove the gas lines.
horseshoe-shaped manifold or the 9/16-in. nut
on the gas line to the straight manifold and
remove the gas line.
from the burner box.
1/4-in. Screws
1/4-in. Screws
folds and remove the valves.
Top Removal).
Straight
Straight
1/4-in.
1/4-in.
Nut
Nut
GEA00841
GEA00780
