Summary of Contents for StarTech.com PCISOUND5LP

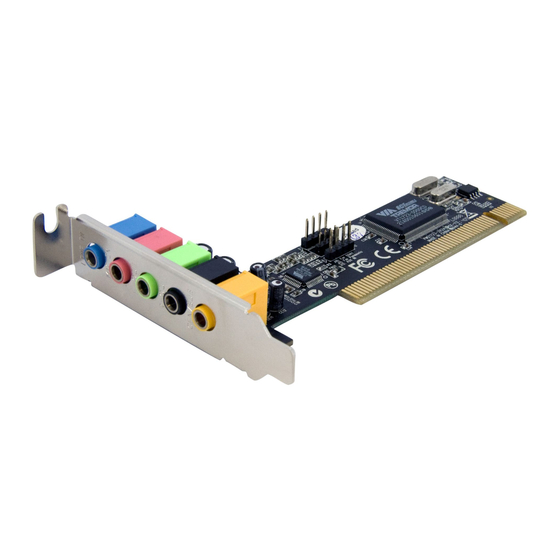

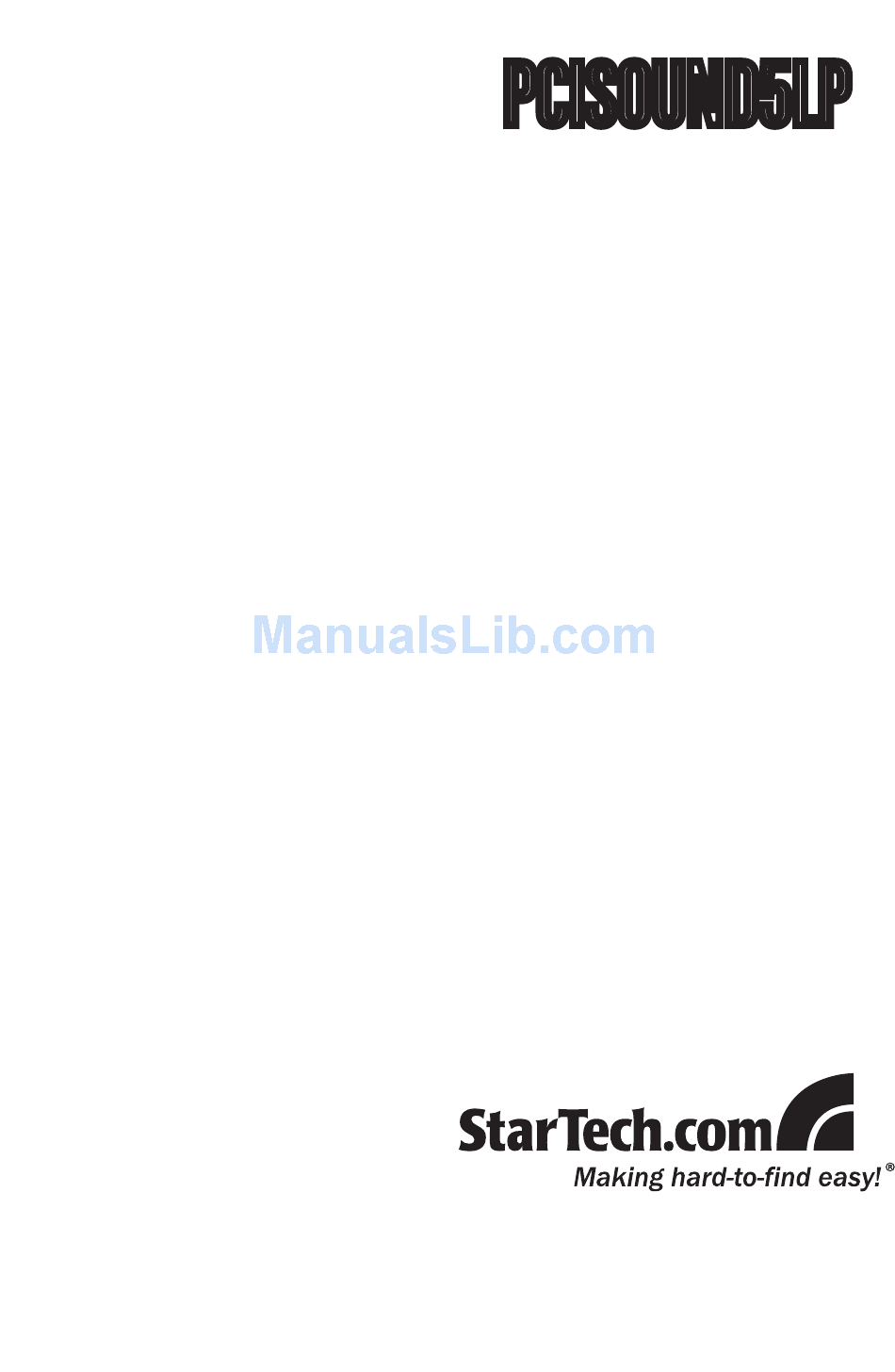

- Page 1 PCISOUND5LP Instruction Manual PCI Sound Adapter Card 5.1 Channel Low Profile PCI Sound Adapter Card - 24 bits...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 1 Hardware Installation ..............1 Driver Installation .................2 Physical Layout ............... 3 Internal Header Connectors ............3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction
PCISOUND5LP sound card to avoid any conflicts. If previously installed drivers are not removed, the PCISOUND5LP sound card may not function properly. (Note: If your computer has on-board sound you may need to disable it on the motherboard. -
Page 5: Driver Installation
Run. Type “D:\SOUND\VT1723\setup.exe”. (Assuming you have placed the CD in CD-ROM drive D:). Follow any on-screen instructions to complete the software installation. Restart your system. Once you have rebooted the computer, the PCISOUND5LP sound card will be ready to use. -
Page 6: Physical Layout
Physical Layout Line In (blue) – Connect to the audio output of a stereo receiver, CD player, etc. Mic In (pink) – Connect to the microphone (Mono). Front-Speaker (green) – Connect to front speakers or earphones or audio-in of a stereo receiver. Rear-Speaker (black) –... -
Page 7: Specifications
Specifications Bus Interface PCI v2.2 (5V) 1 x Aux-In header Internal Connectors 2 x Analog CD/IN header 5 x 3.5mm Mini Jack External Connectors (Line-In, Mic, Front Out, Rear Our, Center/Sub Out) Chipset VIA Tremor VT1723 Full Duplex: 6 output streams, 2 Duplex Mode input streams Playback: 96k/24-bit... -
Page 8: Technical Support
Technical Support StarTech.com’s lifetime technical support is an integral part of our com- mit-ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our com- prehensive selection of online tools, documentation, and downloads. - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
