Instruction Manual
5 Channel PCI Sound Adapter Card
with AC97 3D Audio Effects
PCISOUND5CH
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 12/15/2011
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PCISOUND5CH
Summary of Contents for StarTech.com PCISOUND5CH

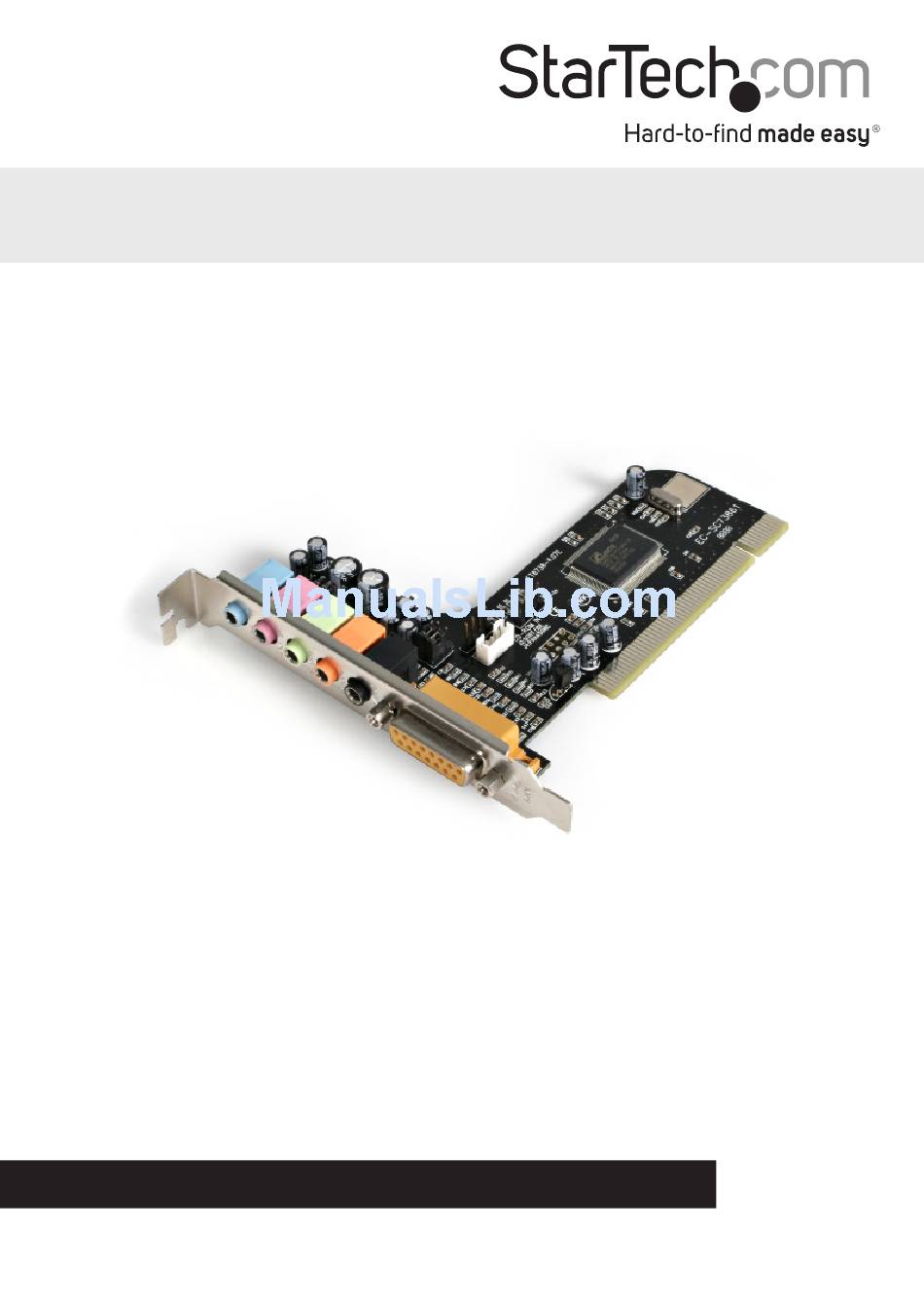

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 12/15/2011...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Installation ....................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 Software Installation (optional) ......................4 Jumper Configuration ..........................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 3: Introduction
Introduction This StarTech.com 5 Channel PCI Sound Card offers a cost-effective multimedia solution, delivering high quality 5.1 channel audio that’s ideal for gaming, HTPC applications or any surround sound configuration. Providing true Full-Duplex playback/capture with different sampling rates (up to 48KHz stereo), the PCI sound card supports simultaneous recording and playback, and features a GAME/MIDI port that lets you use a Serial joystick or other gaming device. -
Page 4: Installation

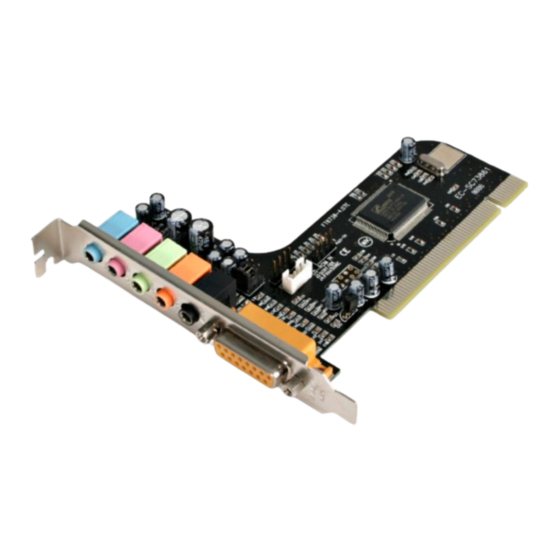

Installation External View Line In (blue) MIC In (pink) Front Speaker Out (green) Rear Speaker Out (orange) Sub/Center Speaker Out (black) Game/MIDI port Internal View Center/Sub jumper CD-ROM In AUX-In header header Instruction Manual... -
Page 5: Installation
WARNING! PCI cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
Driver Installation Windows 2000/XP/Vista/7 1. After restarting your computer, a message should appear indicating that Windows has detected a hardware change. Click the Next button to continue with the installation. 2. Put the CD entitled Drivers and Utility - Installation into your CD-ROM drive. 3. -
Page 7: Specifications
Specifications Bus Interface PCI (5V) 5 x 3.5mm mini-jack (Line In, Mic In, Front Out, Rear Out, External Connectors Center/Sub) 1 x Game/MIDI 2 x 4-pin CD-ROM In header (Sony, Panasonic) Internal Connectors 1 x 4-pin AUX In header Chipset ID CMedia CMI8738 Duplex Mode Full Duplex... -
Page 8: Technical Support
