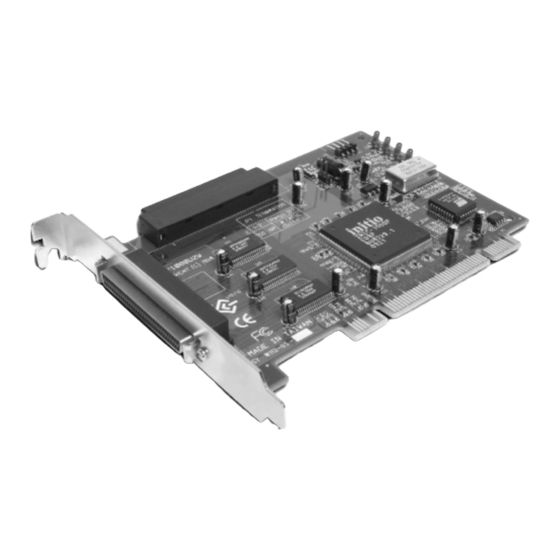

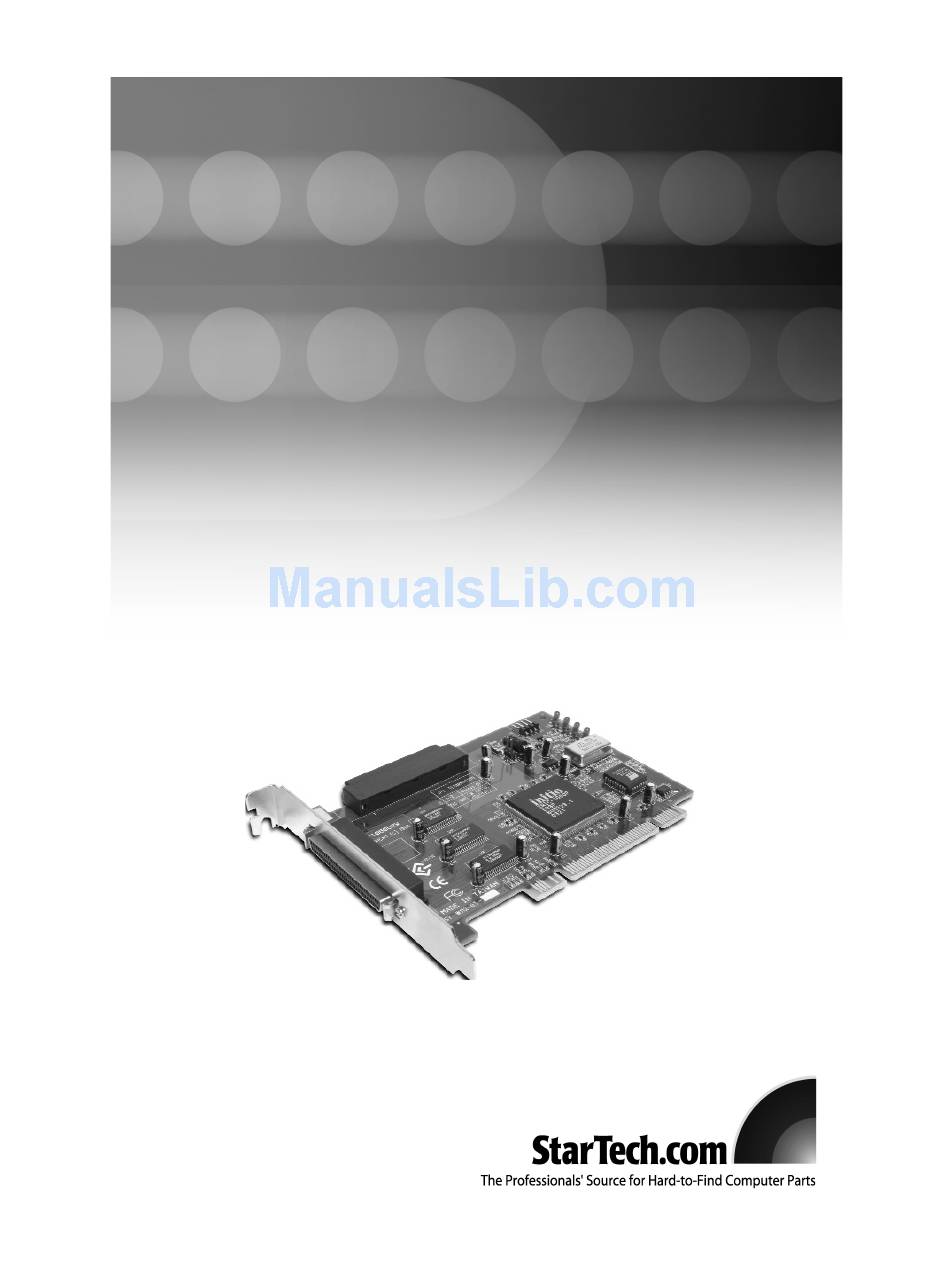

- Page 1 SCSI PCI Card 80 MBytes/sec Ultra2 SCSI PCI Controller Card PCISCSIU2W Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........4 Accessory Products from StarTech.com ......5 Technical Support . -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com Ultra2 SCSI host adapter card. This reliable synchronous PCI card can control up to 15 SCSI devices like CD-ROMs, CD-RWs, scanners and removable media devices. The dedicated on-board processor provides high-speed single-ended SCSI bus transfers at up to 80 MBytes/sec. The card also comes with a high quality 68-pin ribbon cable so that you can start attaching your internal SCSI peripherals right away. -
Page 5: Installation
Instruction Manual Installation This section will guide you through the installation of your PCI card and the related software. Please read through the instructions carefully and complete each step in the order listed. Installing the Card Slots 1. Make sure that your system is unplugged and you are grounded. 2. -
Page 6: Connecting And Terminating Your Scsi Devices
SCSI chain. For your convenience, this product includes a LVD SCSI terminator. NOTE: StarTech.com offers a wide range of internal and external SCSI cables and terminators to suit your needs. Refer to the “Accessory Products from StarTech.com”... -
Page 7: Verifying Your Installation
Instruction Manual Verifying Your Installation Windows 98SE/ME 1. Go to Start > Settings > Control Panel. 2. Double click System. 3. Click the Hardware tab. 4. If the card does not appear with a red x or yellow exclamation point (!) next to it, Windows has not detected a problem with the installation and the card should function normally. -
Page 8: Accessory Products From Startech.com
Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. 2 Drive U320 Terminated Internal SCSI Cable SCSI320INT... - Page 9 Instruction Manual 3 ft. SCSI3 to SCSI2 Cable HPDB68M to HPDB50M SCSI2W2EXT_3 10 ft. SCSI Cable HPDB68 M/M SCSI33PEX_10 3 ft. External SCSI3 Cable HPDB68 M/M SCSI33PEX4 6 ft. SCSI3 Cable HPDB68M to HPDB68M SCSI33PEX6...
-
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 11 Revised: 1 October 2004 (Rev. B)
