Page 1: Instruction Manual
PCI1PM Instruction Manual PCI Parallel Adapter 1-Port Remappable PCI Parallel Adapter Card Manual Revision:01/10/2011 For the most up-to-date information, please visit www.startech.com... - Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 DIP Switch Settings ..............2 Hardware Installation ..............3 Driver Installation ................. 3 Legacy ISA Address Mode ............3 Standard Plug-and-Play Mode ..........9 Pinout................ -
Page 4: Introduction

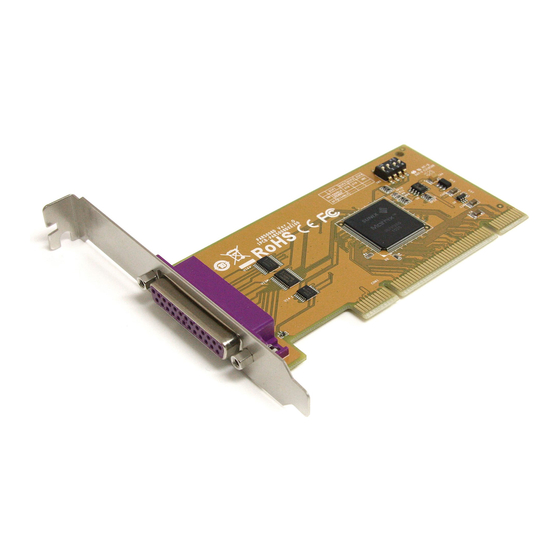

Introduction The PCI1PM Re-mappable 1 Port PCI Parallel Card adds one fully featured I/O mapped IEEE 1284 parallel port to your system using a PCI expansion slot. Saving time and money in costly upgrades of legacy hardware, the re-mappable parallel card can be installed and configured using legacy memory ranges (278, 378, and 3BC legacy ISA addresses) under DOS®... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable,... -
Page 6: Hardware Installation
Hardware Installation 1. Turn your computer off and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices. 2. - Page 7 2. When prompted, select that the hardware is already installed, then choose the “Add a new hardware device” from the list of device types. 3. Select the option to install the hardware manually, then select “Ports” has the hardware type.
- Page 8 4. From the Standard Port Types, select ECP Printer Port, then proceed to complete the installation. 5. Once the hardware wizard has completed, access the Device Manager by right-clicking on My Computer and selecting the “Manage” option. In the Computer Management window, select Device Manager from the left window panel.
- Page 9 8. Select “I/O Range” under the Resource Settings then click the “Change Settings” button. 9. Select the “Value” that matches the DIP switch settings used for the adapter card and note any conflicts that appear. Accept the settings and reboot the computer. 10.
- Page 10 2. Click on “Action” from the top menu and select the “Add Legacy Hardware” option. This will launch the Add Hardware wizard. 3. When prompted, select the option to install hardware manually, then select “Ports” as the hardware type. 4. From the Standard Port Types category, select ECP Printer Port, then proceed to complete the wizard.
- Page 11 5. From Device Manager, right-click on the newly added port and select “Properties”. 6. Select the “Resources” tab from along the top tabs and then click the “Set Configuration Manually” button. 7. Select the “I/O Range” field from Resource Settings and uncheck the “Use Automatic Settings”...
-
Page 12: Standard Plug-And-Play Mode
8. Select the “Value” that matches the DIP switch settings used for the adapter card and note any conflicts that appear. Accept the settings and reboot the computer. 9. If a conflict is not reported in Device Manager, then the port should be ready for use. -
Page 13: Pinout
2. When prompted to insert the disc, insert the Driver CD that came with the card, into your CD/DVD drive and Windows will automatically proceed to search the CD. 3. If a Windows Security dialog window appears, click the “Install this driver software anyway”... -
Page 14: Specifications
Specifications PCI revision 2.3 (33MHz) Bus Interface 3.3V/5V compatible Form Factor Full/Low Profile Chipset ID Sunix UL7512EQ External Connectors 1 x DB25 female IEEE 1284-1994 Supported Standards (ECP/EPP/SPP/BPP) Maximum Data Transfer Rate 1.8 Mbps FIFO Buffer 16 Byte Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F) -
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 16 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
