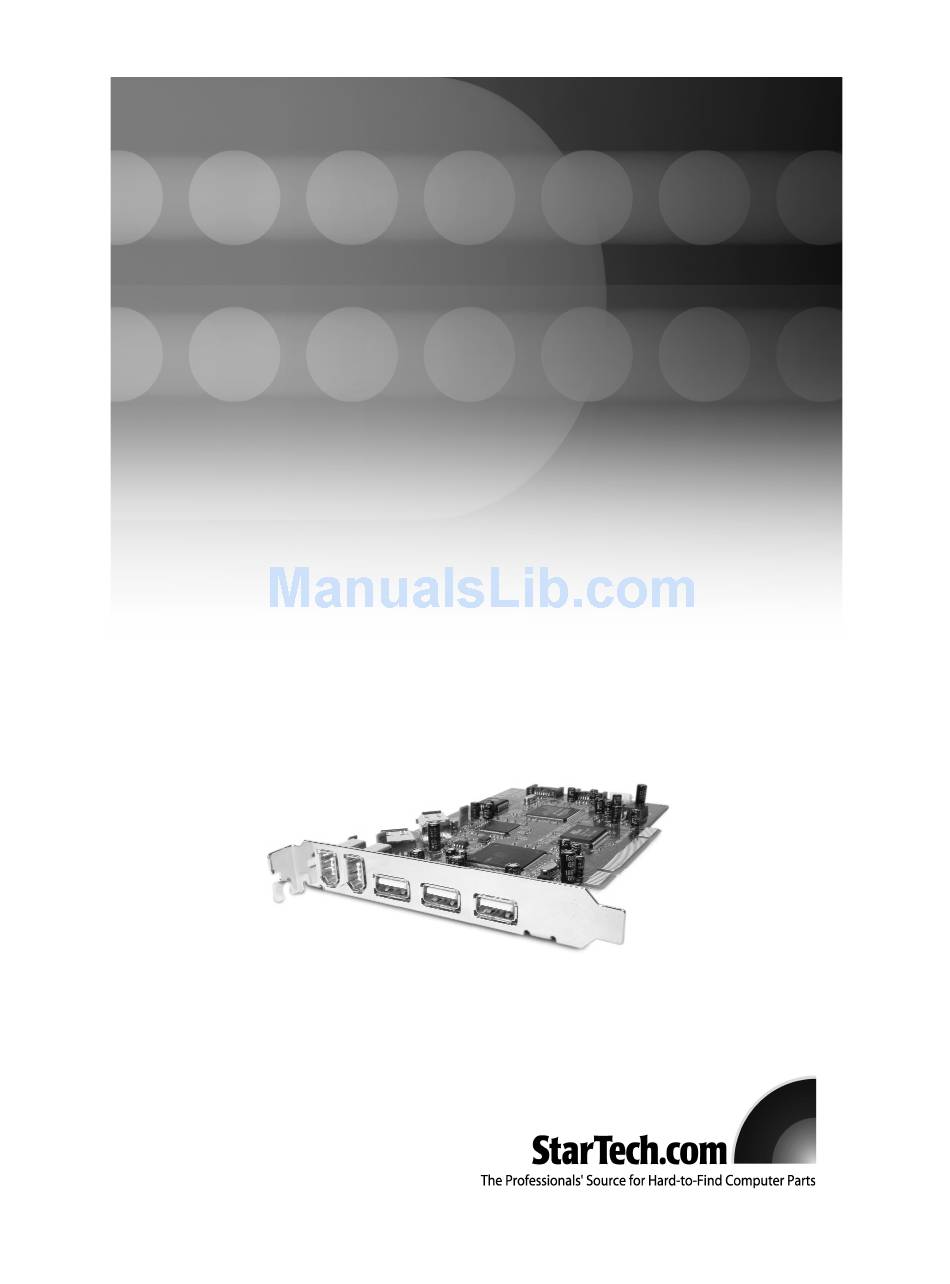

- Page 1 Slot Saver PCI Card 2 Port SATA, 3 Port FireWire, 4 Port USB 2.0 Slot Saver PCI Card PCISAT2F3U4 Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Specifications ...........7 Accessory Products from StarTech.com ......7 Technical Support . -
Page 4: Introduction

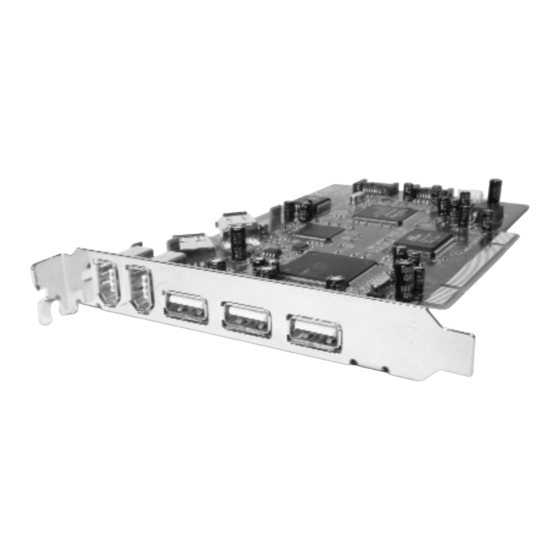

Instruction Manual Introduction Thank you for purchasing a StarTech.com Slot Saver PCI card. This product allows you to add 2 Serial ATA (SATA), 3 FireWire 400, and 4 USB 2.0 ports to your computer using a space-saving single card design. Perfect for users looking to upgrade their computers to handle demanding high-speed devices, this card offers easy Plug and Play installation and the ability to connect peripherals using a variety of popular interfaces. -
Page 5: Installation
Instruction Manual • 1 x Installation disk • 1 x Supplemental power “Y” cable • 1 x Instruction Manual Installation This section will guide you through the installation of your PCI Slot Saver card. Please read through the instructions carefully and complete each step in the order listed. Installing the Card Slots 1. -
Page 6: Installing The Drivers
Instruction Manual supply. If there is no power connector available, you may remove one from an existing device (i.e. CD-ROM). 8. If you removed a power connector from another device in the previous step, connect the LP4 female connector on the “Y” cable to that device so both that device and the card can be powered. - Page 7 Instruction Manual 11. On the next screen select only Specify a location. Choose Browse. 12. In the file selection box, double click folders under 3 Floppy (A:) in the following order: USB2.0 Host > Nec > Win98_me. Click OK. 13. The file location box under Specify a location will now contain the path to the files. Click Next.
-
Page 8: Verifying Your Installation
Instruction Manual Windows 2000/XP Windows 2000/XP includes native support for USB 2.0 and FireWire and will install the drivers automatically. Ensure that you have the most current Microsoft Service Pack installed. When Windows installs these drivers, you may receive a warning that the files have not been digitally signed. -
Page 9: Troubleshooting
USB port. If you receive this warning, connect a powered USB hub such as StarTech.com’s ST4200USB to the computer and connect the device to the hub. Since it has an external power source, the hub will be able to supply sufficient power to the device. -
Page 10: Specifications
FCC Class B, CE, UL Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. 6 ft. IEEE-1394 FireWire Cable 4-6 pin M/M 1394_46_6 10 ft. - Page 11 Instruction Manual Mutant Mods 6 ft. Red - Yellow Lava Lamp LED IEEE-1394 FireWire Cable, 6-6 pin 1394_6FLRY Mutant Mods 6 ft. Blue LED IEEE-1394 FireWire Cable, 6-6 pin 1394_6LEDBL Mutant Mods 6 ft. Red LED IEEE-1394 FireWire Cable, 6-6 pin 1394_6LEDRD Mutant Mods 6 ft.
- Page 12 Instruction Manual 18 in. Serial ATA Data Cable with LP4 Adapter SATA18POW 18 in. Right Angle Serial ATA Cable (1 end) SATA18RA1 24 in. Serial ATA Drive Connection Cable SATA24 24 in. Right Angle Serial ATA Cable (1 end) SATA24RA1 Serial ATA to ATA/133 Adapter M/F SATA2ATA133 36 in.
-
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 14 Revised: 2 September 2004 (Rev. B)
