Operation

To operate the Intelix DIGI-HDMI-4X4 matrix switcher, please perform the
following steps.
Note: The DIGI-HDMI-4X4 features on-board memory. Settings are
stored during power off and restored during power on.

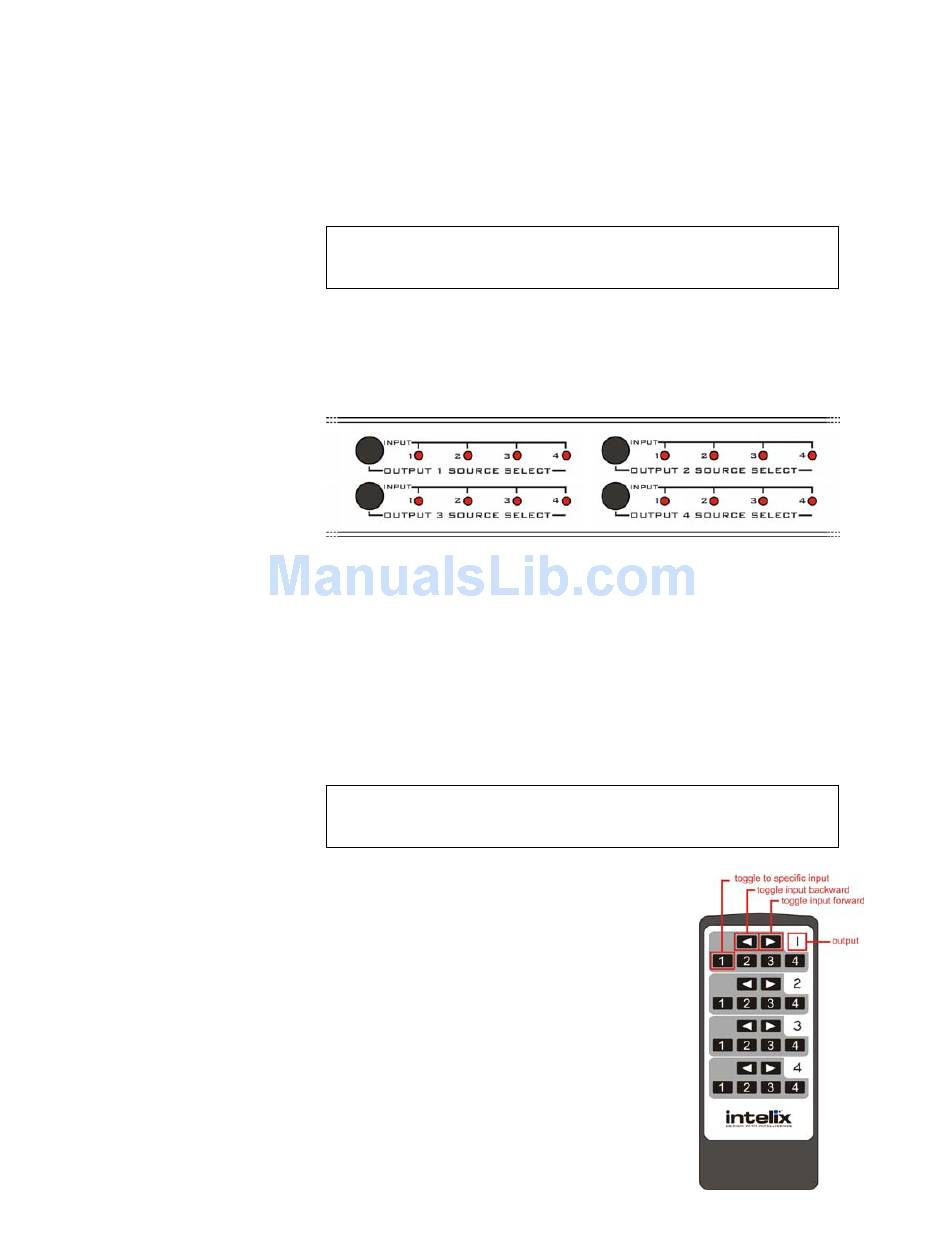

Front Panel Control
The DIGI-HDMI-4X4 features front panel control for switching inputs to the
various outputs. Each output is represented by a push toggle button. Selecting
the button toggles what input is being routed to the output.
1. Determine if the DIGI-HDMI-4X4 front panel is locked. If the panel is
locked, the keylock status indicator LED will be illuminated. If the panel is
locked, unlock it by selecting the keylock selector button.
2. Determine which output you wish to change.
3. On the determined output, select the push toggle button. The input indicator
will cycle through the inputs.
4. Optional: Once the desired input is selected, lock the front panel by
selecting the keylock selector button.
Note: The DIGI-HDMI-4X4 front panel will automatically lock after
one minute of inactivity.
Included Remote Control
The DIGI-HDMI-4X4 includes a wireless remote control
for switching inputs to the various outputs. Each output
is represented by a bank of buttons on the remote
control.
1. Determine which output you wish to change.
2. On the determined output, select the desired input
number.
3. On the determined output, toggle through the inputs
by selecting the toggle input backward or toggle
input forward button.
