RS232 Remote Control

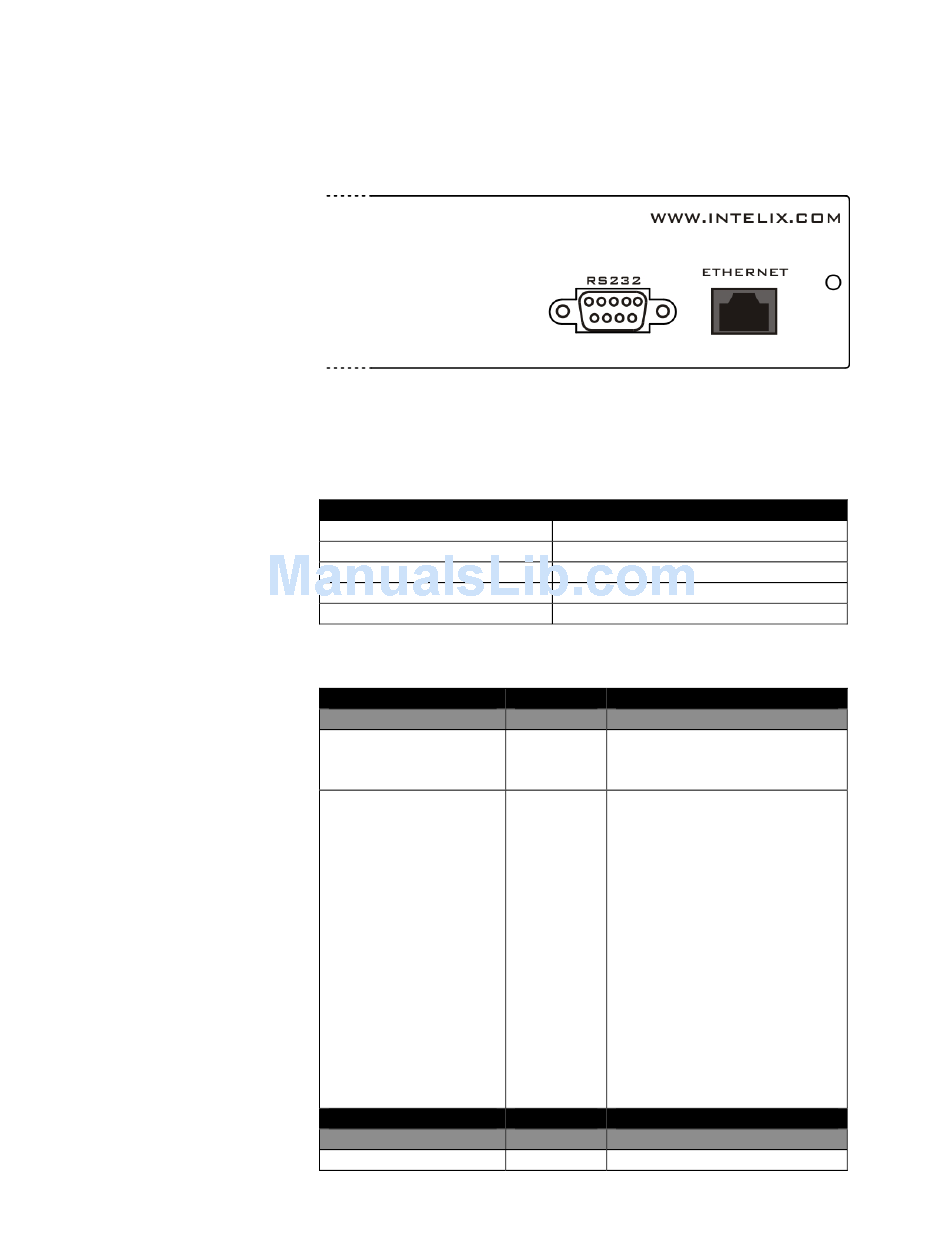

The DIGI-HDMI-4X4 supports remote control through a rear panel RS232
control port.
1. If controlling the DIGI-HDMI-4X4 through the RS232 control port on the
rear panel, connect a straight-through serial cable directly to the matrix.
DIGI-HDMI-4X4 RS232 Settings
Settings
Bits per second
Data bits
Parity
Stop bits
Flow control
DIGI-HDMI-4X4 RS232 Codes
Misc. Commands
Function
Get Device Type
Get Device Status
Output 1 Commands
Function
Toggle Input 1
www.intelix.com
9600
8
None
1
Hardware
Code Return String
br <space> ASCII string containing the
letter "a" followed by the
name of the device
bc <space> ASCII string in the format of:
"\r\n" + "s1Ys2Ys3Ys4Y" +
"\r\n" where Y is the input
source being routed to each
output. The value of Y maps
as follows:
0 = input 1
1 = input 2
2 = input 3
3 = input 4
The outputs channels map as
follows:
s1 = output 1
s2 = output 2
s3 = output 3
s4 = output 4
Code Return
cir 09\r The updated status for output
