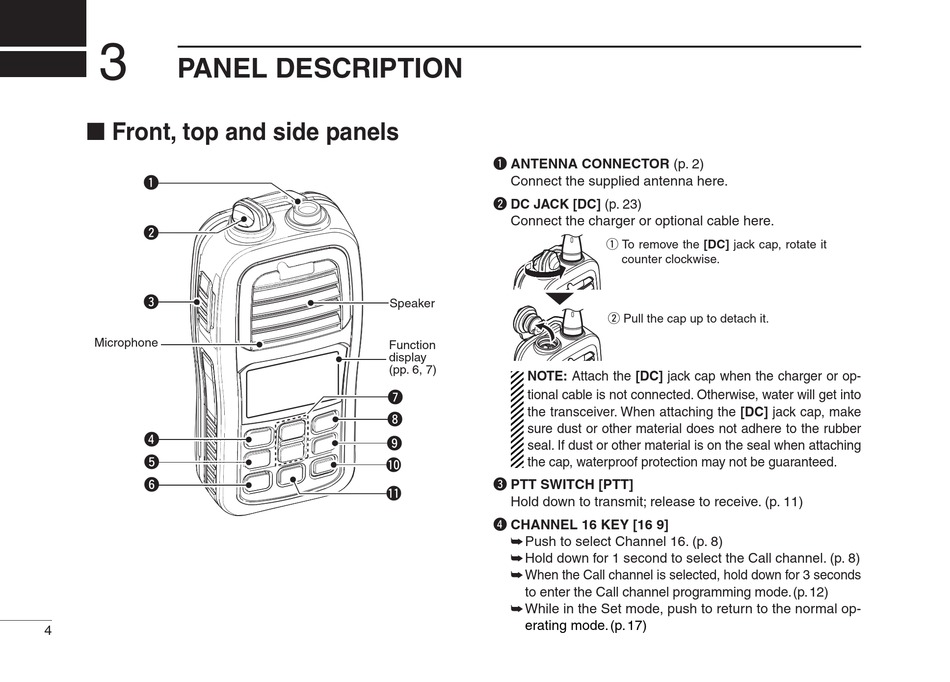

PANEL DESCRIPTION

■ Front, top and side panels

q
w
e
Microphone
r
t
y
4
q ANTENNA CONNECTOR (p. 2)
Connect the supplied antenna here.
w DC JACK [DC] (p. 23)
Connect the charger or optional cable here.
Speaker
Function
display
(pp. 6, 7)
NOTE: Attach the [DC] jack cap when the charger or op-
u
tional cable is not connected. Otherwise, water will get into
the transceiver. When attaching the [DC] jack cap, make
i
sure dust or other material does not adhere to the rubber
o
seal. If dust or other material is on the seal when attaching
!0
the cap, waterproof protection may not be guaranteed.
e PTT SWITCH [PTT]
!1
Hold down to transmit; release to receive. (p. 11)
r CHANNEL 16 KEY [16 9]
➥ Push to select Channel 16. (p. 8)
➥ Hold down for 1 second to select the Call channel. (p. 8)
➥ When the Call channel is selected, hold down for 3 seconds
to enter the Call channel programming mode. (p. 12)
➥ While in the Set mode, push to return to the normal op-
erating mode. (p. 17)
q To remove the [DC] jack cap, rotate it
counter clockwise.
w Pull the cap up to detach it.
