D Battery pack

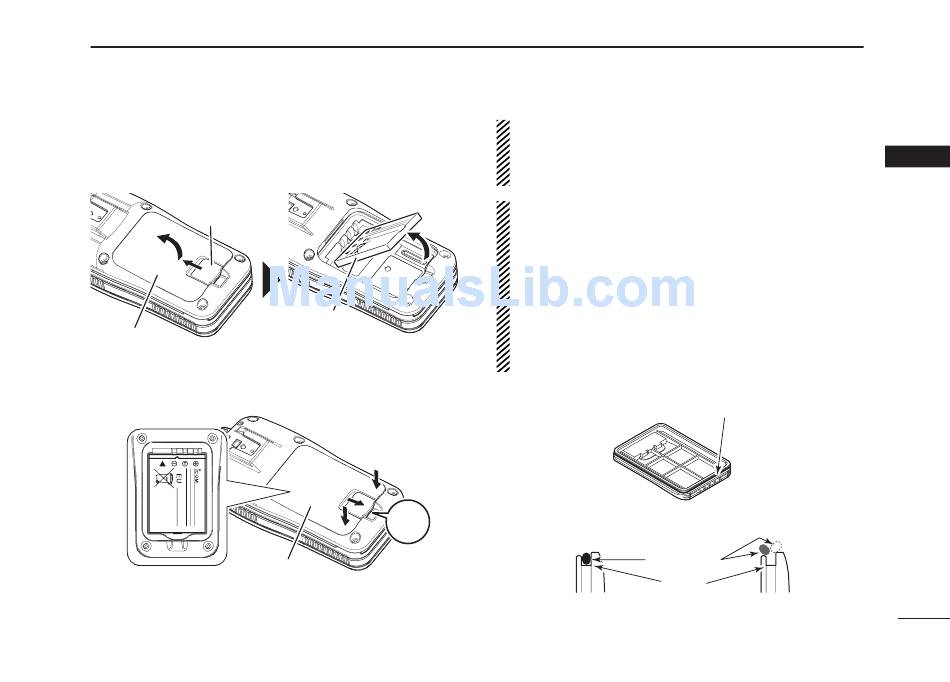

To remove the battery pack:
Slide the latch and then lift the battery cover to remove it.
Then remove the battery pack, as shown.
Latch
Battery cover
To insert the battery pack:
Place the battery pack into the transceiver so it fi ts fl at, and
then securely attach the battery cover, as shown.
Battery cover

SUPPLIED ACCESSORIES AND ATTACHMENTS

Battery pack
Push the cover until
the latch comes back
to the locked position.
"Click"
NEVER remove the battery cover when the transceiver is
wet or soiled. This may result in water or dust getting into
the transceiver/battery pack, and may result in the trans-
ceiver being damaged.
CAUTION:
• When attaching or removing the battery cover, make sure
the rubber seal is correctly set in the groove of the cover.
If the seal is not correctly in the groove, it may be dam-
aged when attaching the battery cover. If the seal is dam-
aged, waterproof protection is not guaranteed.
• When attaching the battery cover, make sure dust or
other material does not adhere to the rubber seal. If dust
or other material is on the seal when attaching the battery
cover, waterproof protection may not be guaranteed.
Make sure the rubber seal is properly seated in the
groove and there is dust or other material is on it.
Correct position
Rubber seal
Groove
Battery cover
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Incorrect position
Battery cover
3
