Hazardous Area, Vandal Resistant Telephone
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com
Industrial Communications Worldwide
Model VR700
Installation and Operation
7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1
PHONE: (403) 258-3100
Guardian
IN NORTH AMERICA
TOLL FREE: 1-800-363-8010
Telecom Inc.
MADE IN CANADA
www.guardiantelecom.com
1
2
3
4
5
6
7
8
9
*
#
0
GUARDIAN TELECOM
VR700
Tel.: (403) 258-3100
VANDAL RESISTANT TELEPHONE
Fax: (403) 253-4967
Class I, DIV. 2, Groups A, B, C, and D
Class I, Zone 2, Group IIC Hazardous Locations
LR65547
Temperature code T5
Enclosure Type 4X
L.N. 21
R.E.N. 0.8B
LINE VOLTAGE: 24 - 56V DC
LOOP CURRENT: 20 - 120mA.
RINGER SENSITIVITY: 40 - 100V, 16 - 25Hz.
SEE USER'S GUIDE FOR INSTALLATION
SER. NO.: VR7XXXX
WARNING:
DO NOT DISCONNECT POWER WHILE CIRCUITS ARE LIVE
UNLESS AREA IS KNOWN TO BE NON-HAZARDOUS. DO NOT
REPLACE FUSE WHILE CIRCUIT IS LIVE OR WHILE AREA IS KNOWN
TO BE HAZARDOUS. FIELD REPAIR IS NOT POSSIBLE.
SEE INSTRUCTION MANUAL FOR PROPER OPERATION AND
INSTALLATION INSTRUCTIONS.
MADE IN CANADA
P004210 Rev. E 041116 3/7/2007 3:48 PM
Advertisement
Table of Contents
Related Manuals for Guardian Telecom VR700
Summary of Contents for Guardian Telecom VR700
-
Page 1: Installation And Operation

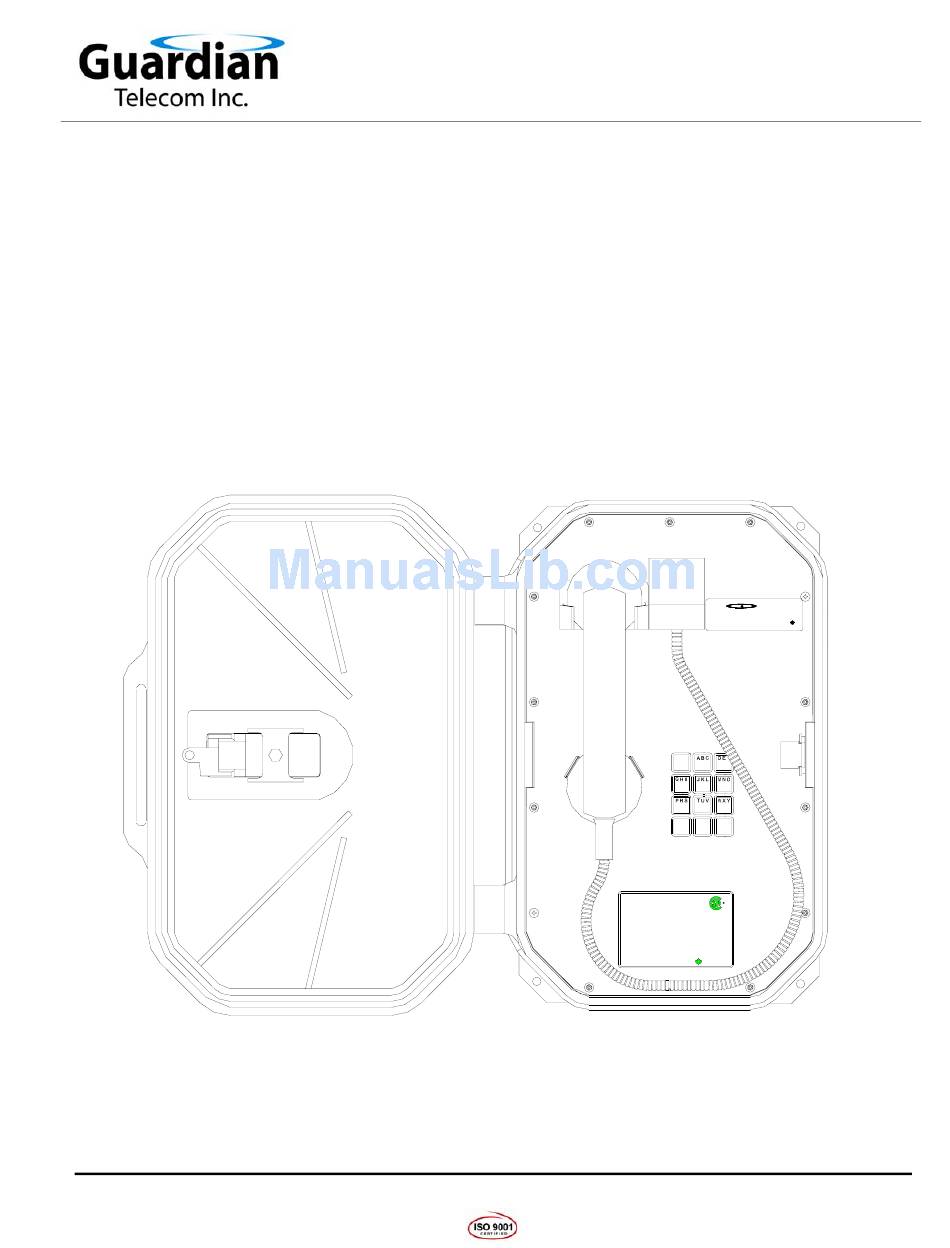

Industrial Communications Worldwide Hazardous Area, Vandal Resistant Telephone Model VR700 Installation and Operation PHONE: (403) 258-3100 Guardian IN NORTH AMERICA TOLL FREE: 1-800-363-8010 Telecom Inc. MADE IN CANADA www.guardiantelecom.com GUARDIAN TELECOM VR700 Tel.: (403) 258-3100 VANDAL RESISTANT TELEPHONE Fax: (403) 253-4967 Class I, DIV. -
Page 2: Table Of Contents
(1) VR700 Telephone (2) Door Latch Keys (1) Mounting Plate (1) Installation & Operation Manual Models and Options • P5710 Model VR700 Hazardous Area Telephone Accessories • P7226 Hazardous Area Ring Detect Relay • P7231 Hazardous Area Off-hook Detect Relay (24V) •... -
Page 3: Overview

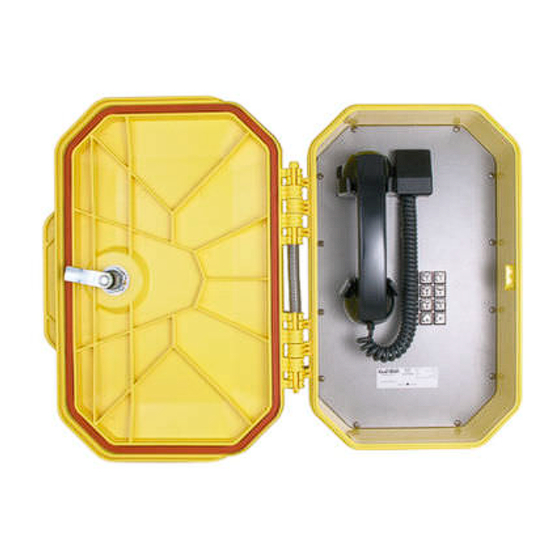

Overview Hazardous Area Telephone The VR700 is a vandal resistant telephone designed to provide safe, reliable communication in Class I, Division 2, hazardous locations. The unit is housed in a rugged, weather and corrosion resistant enclosure that ensures the unit will function dependably in the most severe conditions. -
Page 4: Figure 1 - Overall Dimensions
Guardian Telecom Inc. Installation and Operation Model VR700 12.0" [305mm] 6.3" [160mm] Figure 1 - Overall Dimensions 8.0" [203mm] Ø0.265" [Ø7mm] for #10 or M5 ORANGE GREEN 2 WIRE BLUE FUSE CONNECT TO SURGE CIRCUIT BOARD ARRESTOR HARNESS RING TIP... -
Page 5: Installing The Vr700
• Tip: The VR700 is To change the Tone/Pulse setting to pulse, if required: factory preset for DTMF o Move the jumper from pins 1 & 2 of the Tone/Pulse connector to tone. -
Page 6: Figure 3 - Setting Dialing Mode
Guardian Telecom Inc. Installation and Operation Model VR700 TONE/PULSE JUMPER Guardian Telecom Inc. S/N:____________ Calgary, Canada PHONE RIN- TONE/ HANDSET LINE PULSE Figure 3 - Setting Dialing Mode Page 6... -
Page 7: Maintenance
Dialing Mode and Figure setting the dialing mode and the replacement of fuses. All other repairs or 2 - Installation. alterations must be carried out by Guardian Telecom or an Authorized Service Depot. See Warranty and Disclaimer for details. Operation •... -
Page 8: Engineering Specifications
Guardian Telecom Inc. Installation and Operation Model VR700 Engineering Specifications Electrical Performance 300 - 3400 H UDIBLE ANGE REQUENCY ESPONSE DTMF or 40/60 P 10 PPS IALING ETHOD ULSE (TOLR) -38 +/- 3 dB RANSMIT BJECTIVE OUDNESS ATING (ROLR) 50 +/- 3 dB... -
Page 9: Figure 4 - I.d. And Compliance
Guardian Telecom Inc. Installation and Operation Model VR700 Compliance MIL-STD 810E ILITARY TANDARDS (CSA) :LR65547 ANADIAN TANDARDS SSOCIATION EFERENCE NUMBER I, D 2, G A, B, C LASS IVISION ROUPS I, Z 2, G IIC H LASS ROUP AZARDOUS OCATIONS... -
Page 10: Warranty
Model VR700 Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty This warranty is null and void if any non-authorized modifications have been made to this product , or if it has been subjected to misuse, neglect, or accident. -
Page 11: Guardian Product Return
When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in... - Page 12 Guardian Telecom Inc. 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1 Toll-free 1-800-363-8010 Ph. (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com Industrial Communications Worldwide © Guardian Telecom Inc. 2004...
