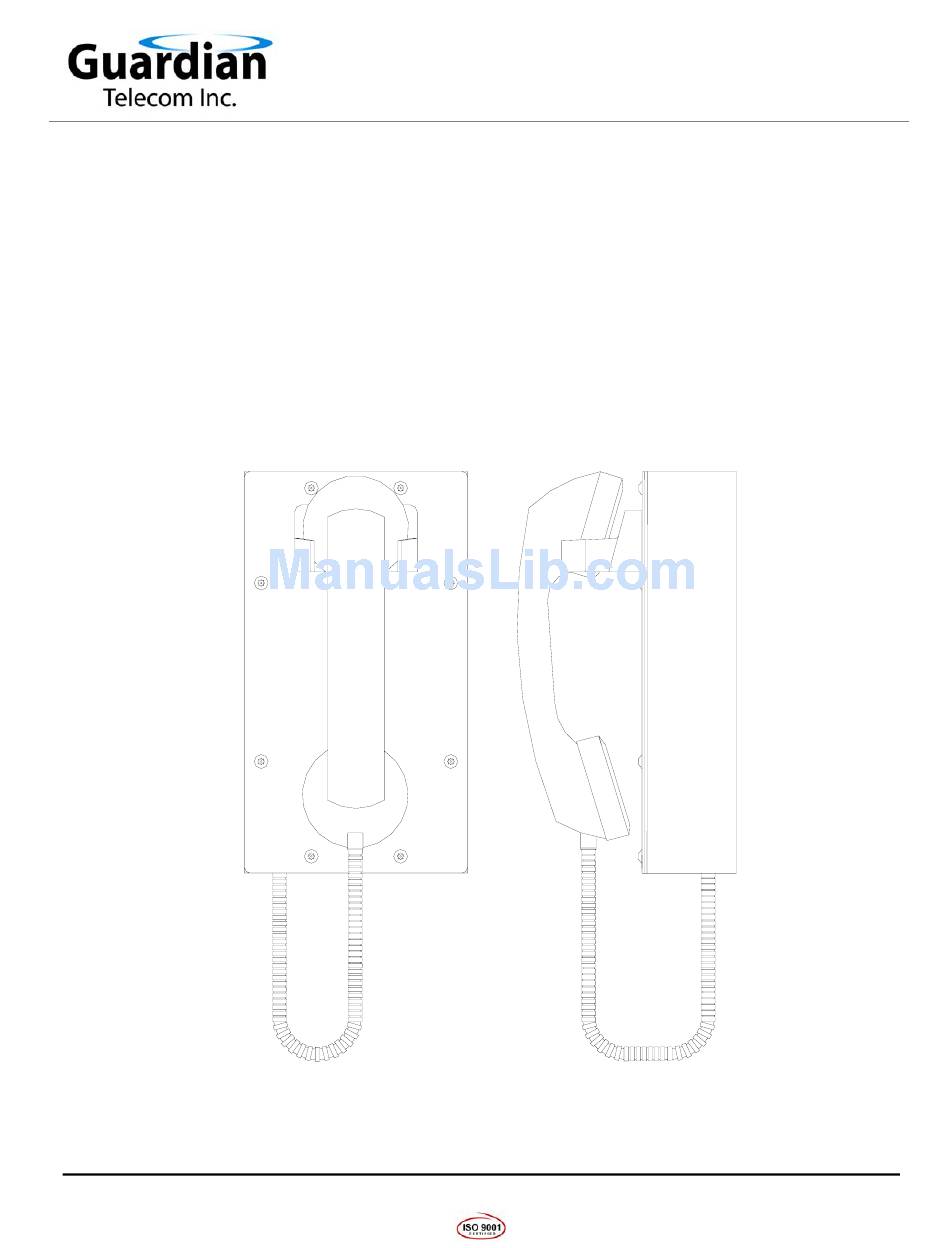

  • Page 1 Industrial Communications Worldwide Correctional Institute Ringdown Telephone Model CIR-41 Installation & Operation P005722 Rev. B 060501 3/8/2007 9:00 AM 7552 - 10 Ave. N.E. Calgary Alberta, Canada T2E 8W1 Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
  • Page 2: Table Of Contents

    Guardian Telecom Inc. Package Contents ...2 Overview...3 Features ...3 Installing the CIR-41 ...6 Operating the CIR-41 ...6 Engineering Specifications ...7 Warranty ...8 Disclaimer...8 Warning ...8 Service Telephone Number...8 Feedback...8 Guardian Product Return...9 Figure 1 - Features ...4 Figure 2 - Dimensions ...4 Figure 3 - Mounting ...5...
  • Page 3: Overview

    Guardian Telecom Inc. CIR-41 Correctional Institute Ringdown Telephone The CIR-41 is a rugged, ringdown telephone designed to provide safe and reliable communication in locations prone to abuse and vandalism. Calls may be received on this telephone however outgoing calls will only be connected to a single number – if the PABX is programmed to perform this function or if a Guardian AD-10 Autodialer is installed and programmed.
  • Page 4: Figure 1 - Features

    Guardian Telecom Inc. Installation and Operation Model CIR-41 SEALED MAGNETIC REED HOOK SWITCH HIGH IMPACT ABS HANDSET C/W HEARING AID COMPATIBLE EARPIECE AND GLUED ENDCAPS TAMPER RESISTANT SCREWS ARMOURED CORD Figure 1 - Features 5.0" [127mm] 2.1" [54mm] Figure 2 - Dimensions...
  • Page 5: Figure 3 - Mounting

    1.5" [38mm] Figure 3 - Mounting FROM RINGER CONNECT TO HOUSING HARNESS FROM REED SWITCH FROM HANDSET Figure 4 - Electrical Connections Page 5 Installation and Operation Model CIR-41 CONNECT TO FACEPLATE HARNESS FUSE RJ11 CONNECTOR TIP AND RING GROUND...
  • Page 6: Installing The Cir-41

    • Bring Tip, Ring and Ground wiring to the location where the wiring access opening in the back of the CIR-41 will be when the telephone is installed. • Remove the eight (8) cover screws from the front of the unit and carefully remove the front cover assembly.
  • Page 7: Engineering Specifications

    >1 000 000 O 16 G AUGE MPACT OISE OISE EARING ERTICAL TAINLESS Page 7 Installation and Operation Model CIR-41 50 +/- 3 dB 11 +/- 3 dB OMINAL (4,600 M) OPPER RJ11 C TRIP OR ONNECTOR C (-40 +140...
  • Page 8: Warranty

    Guardian personnel will supply you with an RMA (return materials authorization) number over the telephone or through our web site product return page. This number must be included with your return address and the name of the person to contact.
  • Page 9: Guardian Product Return

    • Connecting a telephone to a standard power source, rather than tip & ring, will blow the telephone’s internal, user-replaceable fuse. In the event of fuse burn-out, disconnect the telephone from the power source, replace the fuse, and reconnect following the wiring diagrams provided with the product.
  • Page 10 Guardian Telecom Inc. Installation and Operation Model CIR-41 Notes: Model No. Part No. Serial No. Date of Purchase Page 10...
  • Page 12 Guardian Telecom Inc. Installation and Operation Model CIR-41 Guardian Telecom Inc. 7552 10th Ave NE Calgary, Alberta, Canada T2E 8W1 Toll-free 1-800-363-8010 Ph. (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: mailto:sales@guardiantelecom.com (Click to open message box) Industrial Communications Worldwide © Guardian Telecom Inc. 2006...
