Industrial Communications Worldwide
Food Industry Telephone
Model FIT-80
Installation and Operation
7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com
XXXXXXXX
Guardian
MODEL:
XXX-XX
XXXXXXXX
SN:
XXXXXXXX
XXXXXXXX
Telecom Inc.
PHONE:
(403) 258-3100
MADE
www.guardiantelecom.com
IN
IN NORTH AMERICA:
CANADA
1-800-363-8010
P005847 Rev. C 130918 9/18/2013 11:25 AM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Guardian Telecom FIT-80
Summary of Contents for Guardian Telecom FIT-80
-
Page 1: Installation And Operation

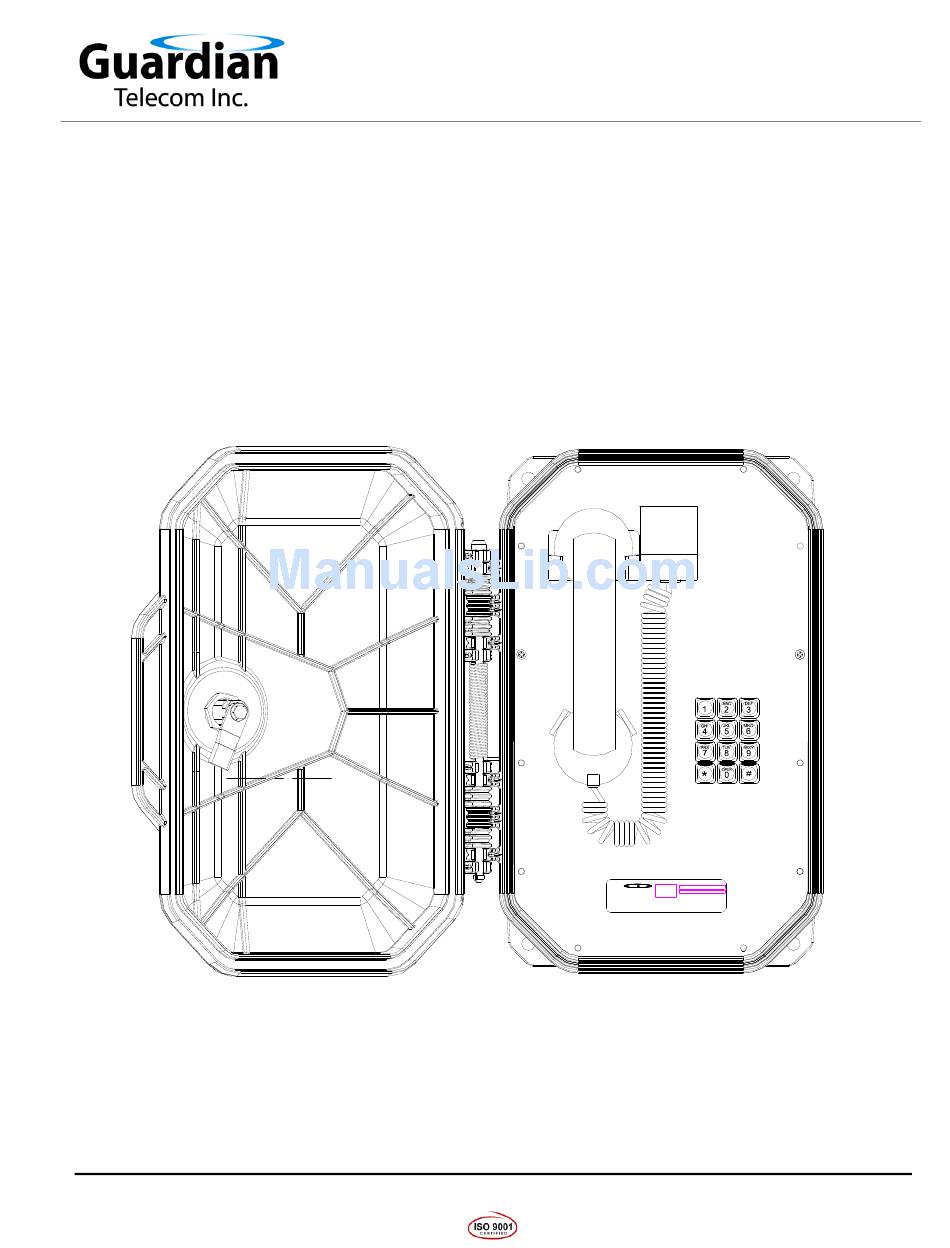

Industrial Communications Worldwide Food Industry Telephone Model FIT-80 Installation and Operation XXXXXXXX Guardian MODEL: XXX-XX XXXXXXXX XXXXXXXX XXXXXXXX Telecom Inc. PHONE: (403) 258-3100 MADE www.guardiantelecom.com IN NORTH AMERICA: CANADA 1-800-363-8010 P005847 Rev. C 130918 9/18/2013 11:25 AM 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1... -
Page 2: Table Of Contents
(2) Door Latch Keys (if locking door option chosen) (12) Faceplate screws (standard or vandal resistant with driver bit) (1) Installation and Operation Manual Models and Options P6484 Model FIT-80 Food Industry Telephone VR-WTE Vandal Resistant Screws With Driver Bit LCK-WTE Locking Door Accessories... -
Page 3: Overview
The FIT-80 is approved with a CSA Type 4X rating, making it the ideal telephone for use in wet or corrosive atmospheres as are found in the Food Industry. -
Page 4: Figure 1 - Features
Guardian Telecom Inc. Installation and Operation Model FIT-80 STAINLESS STEEL FACEPLATE SEALED MAGNETIC REED HOOK SWITCH HIGH IMPACT ABS HANDSET WITH HEARING AID COMPATIBAL EARPIECE, VOLUME CONTROL AND NOISE CANCELING MICROPHONE HANDSET RETAINERS METAL KEYPAD C/W TELESEAL WATERPROOF COVER 6'(1.8m) RETRACTILE... -
Page 5: Figure 3 - Electrical Connections
Guardian Telecom Inc. Installation and Operation Model FIT-80 Note: This telephone does not meet FCC and IC requirements for receiver volume control and is not approved by these agencies. Do not connect directly to a Central Office line. Figure 3 - Electrical Connections... -
Page 6: Installing The Fit-80
Connect the telephone lines at the local exchange or demarcation block. Test the unit by making calls to and from another station. Operation Once your Model FIT-80 Telephone has been properly installed and energized, operation is identical to most other single line telephones. Page 6... -
Page 7: Field Repairs
Guardian Telecom Inc. Installation and Operation Model FIT-80 Field Repairs See: Replacement Parts Field repairs may only be carried out by qualified technicians using OEM parts. Substitution of parts voids warranty and may pose a hazard to users of the equipment. -
Page 8: Engineering Specifications
Guardian Telecom Inc. Installation and Operation Model FIT-80 Engineering Specifications Electrical Performance 300 - 3400 H UDIBLE ANGE REQUENCY ESPONSE DTMF or 40/60 P 10 PPS IALING ETHOD ULSE AT (TOLR) -33 +/- 3 dB RANSMIT BJECTIVE OUDNESS ATING +8.1 / -5.4 dB 2.7 dB... -
Page 9: Replacement Parts
Guardian Telecom Inc. Installation and Operation Model FIT-80 ANDSET ATERIAL MPACT ICROPHONE OISE ANCELING ECEIVER EARING OMPATIBLE TANDARD OUNTING ERTICAL 1/2” NPT T ONNECTIONS HREADED PENINGS ARDWARE ATERIAL TAINLESS TEEL Compliance CSA T ATERPROOF NCLOSURE Note: This telephone does not meet FCC and IC requirements for receiver volume control and is not approved by these agencies. -
Page 10: Warranty
Model FIT-80 Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident. -
Page 11: Guardian Product Return
When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in... - Page 12 Guardian Telecom Inc. 7552 - 10th Street N.E. Calgary, Alberta, Canada T2E 8W1 Toll-free 1-800-363-8010 Ph. (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) Industrial Communications Worldwide © Guardian Telecom Inc. 2008...
