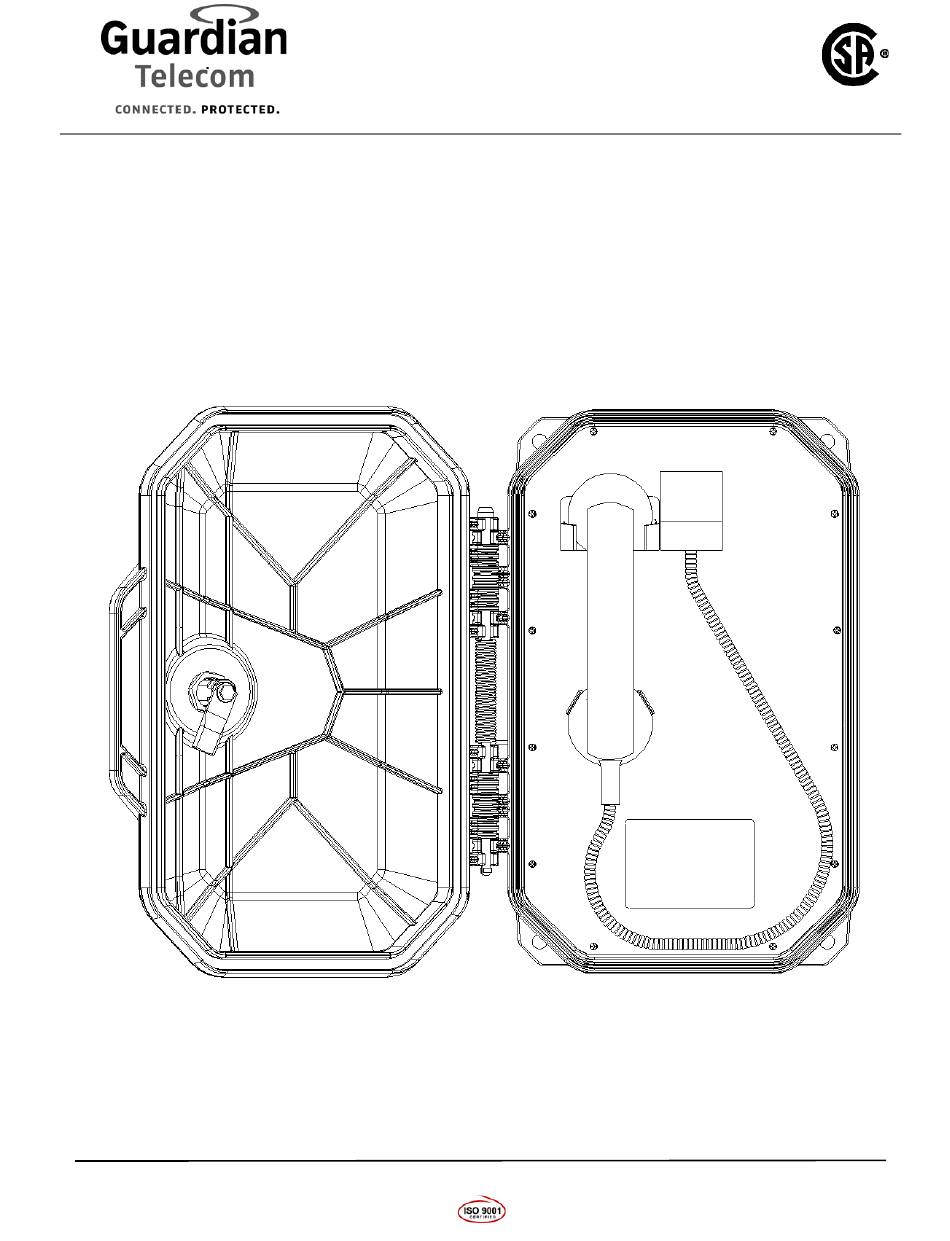

Water Tight Hazardous Area Ringdown Telephone
WTR-41-H
Installation & Operation
Part No. P5306
P006664 Rev. B 150109 1/9/2015 12:16 PM
Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTR-41-H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Guardian Telecom WTR-41-H

  • Page 1 Water Tight Hazardous Area Ringdown Telephone WTR-41-H Installation & Operation Part No. P5306 P006664 Rev. B 150109 1/9/2015 12:16 PM Ph: 403.258.3100 \ email:info@guardiantelecom.com \ www.guardiantelecom.com...
  • Page 2: Table Of Contents

    Figure 2 - Dimensions & Mounting ..............4 Figure 3 - Installation ..................5 Package Contents (1) P5306 WTR-41-H Hazardous Area Ringdown Telephone (2) Door Latch Keys (if locking door option ordered) (12) Faceplate Screws (standard or vandal resistant) (1) Driver bit for Vandal Resistant screws (if this option was ordered)
  • Page 3: Overview

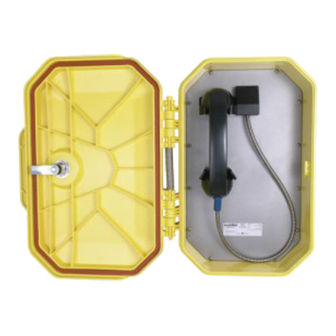

    Overview WTR-41-H Water Tight Hazardous Area Ringdown/Autodialer Telephone Guardian’s WTR-41-H Telephone offers maximum efficiency under extreme environmental and hazardous area conditions. The sturdy Thermoplastic Resin enclosure protects the internal circuitry against wind blown dust and rain, corrosion, splashing and high pressure water.
  • Page 4: Figure 1 - Features

    Guardian Telecom Inc. Installation and Operation WTR-41-H Figure 1 - Features Figure 2 - Dimensions & Mounting Page 4...
  • Page 5: Figure 3 - Installation

    Guardian Telecom Inc. Installation and Operation WTR-41-H Figure 3 - Installation Page 5...
  • Page 6: Installing The Wtr-41-H

    The WTR-41-H Telephone may be supplied with an optional Auto Dialer or dialing may be configured by the PABX. If an Auto Dialer is ordered with the WTR-41-H, refer to the manual for the Auto Dialer for instructions on programming and for compliances.
  • Page 7: Field Repairs

    Guardian Telecom Inc. Installation and Operation WTR-41-H Field Repairs Field repairs may only be carried out by qualified technicians using OEM parts. See: Figure 3 - Substitution of parts voids warranty and may pose a hazard to users of the Installation &...
  • Page 8: Product Specifications

    Guardian Telecom Inc. Installation and Operation WTR-41-H Product Specifications LECTRICAL ERFORMANCE 300 – 3400 H UDIBLE ANGE REQUENCY ESPONSE (TOLR) -38 +/- 4 dB RANSMIT BJECTIVE OUDNESS ATING (ROLR) 50 +/- 3 dB ECEIVE BJECTIVE OUDNESS ATING YPICAL (SOLR) 11 +/- 4 dB...
  • Page 9: Replacement Parts

    Guardian Telecom Inc. Installation and Operation WTR-41-H Compliance 1012 6721 A HQHCAN-22517-TE-E I, D A, B, C & D; C LASS IVISION ROUPS LASS I, Z 2, G ROUP CSA T 4X, IP66 ATER IGHT NCLOSURE Replacement Parts Part No.
  • Page 10: Government Certification

    Guardian Telecom Inc. Installation and Operation WTR-41-H Government Certification Attached to the telephone are labels for Industry Canada and the United States Federal Communications Commission. These identify equipment certifications indicating the 60 and 70 series telephones meet certain telecommunications network protective, operational and safety requirements.
  • Page 11: Warranty

    WTR-41-H Warranty Guardian Telecom warrants your product to be free of defects in material and workmanship for a period of one year. Guardian Telecom will repair or replace any defective unit that is under warranty This warranty is null and void if any non-authorized modifications have been made to this product, or if it has been subjected to misuse, neglect, or accident.
  • Page 12: Guardian Product Return

    When a product has been installed following user manual instructions, and the unit fails to operate, the user must contact Guardian Telecom to obtain authorization to return the product. This can be done by completing a RMA form online at www.guardiantelecom.com, or by calling the service telephone number given in...
  • Page 13: Cleaning Tips For Guardian Telephones

    Guardian Telecom Inc. Installation and Operation WTR-41-H Cleaning Tips for Guardian Telephones Guardian Telephones may occasionally need to be cleaned to maintain appearance. Generally, wiping the surface with a clean, water dampened cloth will remove most films or residues. If the soiling is too stubborn for plain water, a mild detergent solution may be used.
  • Page 14 Guardian Telecom Inc. Installation and Operation WTR-41-H Notes: Model No. Part No. Serial No. Date of Purchase Page 14...
  • Page 15 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 16 Guardian Telecom Inc. Toll-free 1-800-363-8010 Phone (403) 258-3100 Fax. (403) 253-4967 www.guardiantelecom.com E-mail: sales@guardiantelecom.com (Click to open message box) CONNECTED. PROTECTED. © Guardian Telecom Inc. 2015...
